OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT

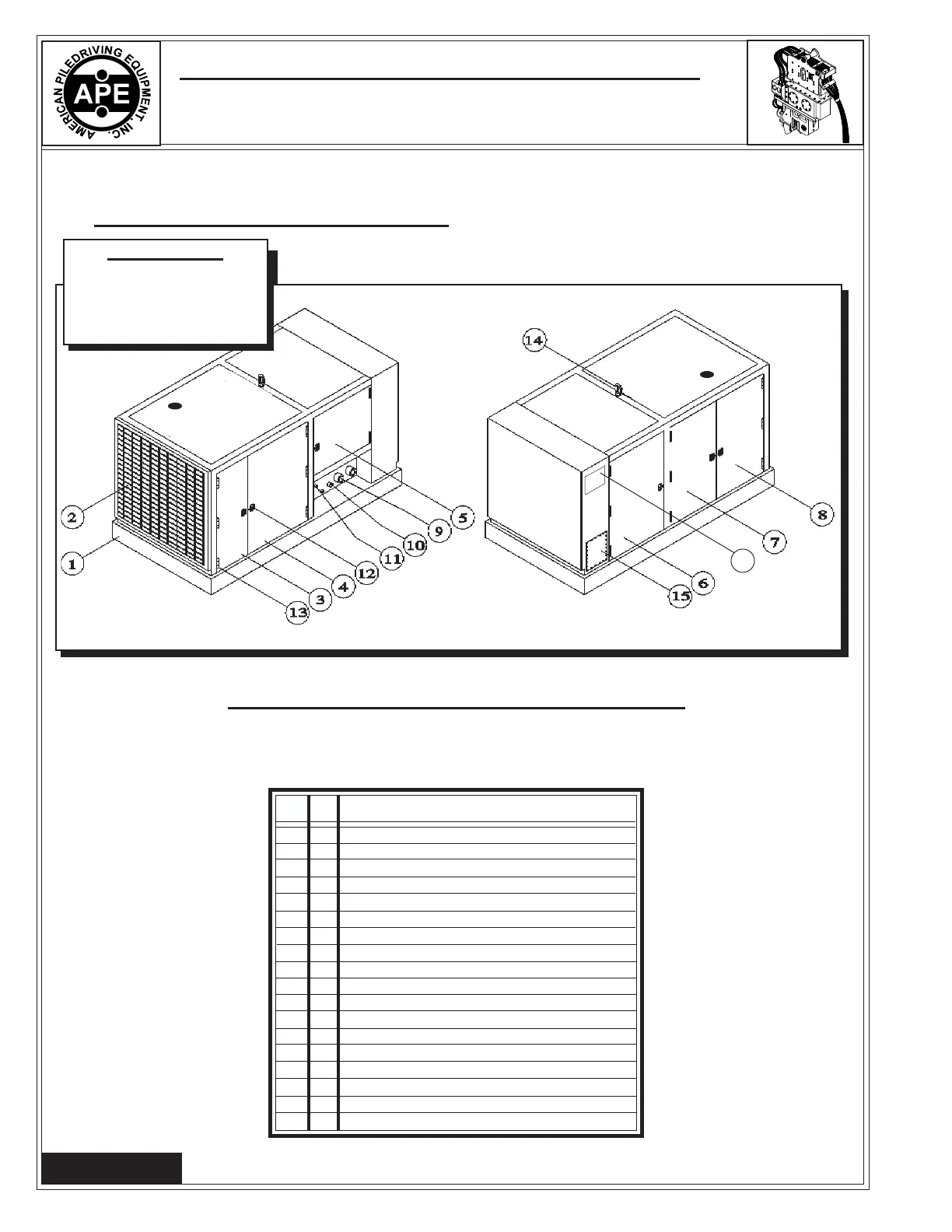

Figure 2-C. Model 260 Power Unit Skid Identification
II. COMPONENT DEFINITION (Continued...)
II-3.
Model 260 Power Unit Skid Identification
WEIGHT: 6,800 lbs
LENGTH: 102 inches
WIDTH: 50 inches
HEIGHT: 60 inches
16
-MODEL 260-
Table 2-C. Model Power Unit Skid Identification
1 1 Model 260 Power Unit Skid
2 1 Radiator Grill
3 1 Door 21 1/2" x 51 1/2"
4 1 Door 45 3/4" x 51 1/2"
5 1 Door 21 1/2" x 20"
6 1 Door 21 1/2" x 51 1/2"
7 1 Door 33 5/8" x 51 1/2"
8 1 Door 33 5/8" x 51 1/2"
9 2 1 1/2" Hydraulic Coupling
10 1 3/4" Hydraulic Coupling
11 2 3/8" Hydraulic Coupling
12 6 Door Handle / Lock
Lock-#EMC 56462W Two Point Lock
Handle-#EMC 48742W Locking Handle
13 17 Hinges #R140-150 Weld On Hinge
14 1 Lifting Eye Nuts - Crosby Laughlin #6-400 #10
15 1 Access Cover Plate 15" x 18"
16 1 Access Cover Plate 12" x 15"
QtyItem
Description
Model 260 Power Unit
Page 2-4
