APE 50 - II-5. Tool Set Identification

7032 SOUTH 196th - KENT, WA 98032 - (253) 872-0141 / FAX (253) 872-8710
OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
1 1 1" Allen Wrench #50004
For use with the clamp attachment bolts
2 1 3/4"Allen Wrench #50006
For use with clamp fixed jaw, sheet guide
3 1 5/8"Allen Wrench #95007
For hydraulic motor, drain plug, top plate
4 1 9/16"Allen Wrench #50013
For use with the hose bracket bolts
5 1 1/2"Allen Wrench #50008
6 1 3/8"Allen Wrench #50009
For use with bearing cover bolts
7 1 5/16"Allen Wrench #50014
For use with the hose bracket bolts
8 1 1/4"Allen Wrench #50015
For use with the vibro oil level check
9 1 Chain Wrench #50011
Used to tighten the quick disconnects
II. MAJOR COMPONENT DEFINITION (Continued...)
II-5. Tool Set Identification

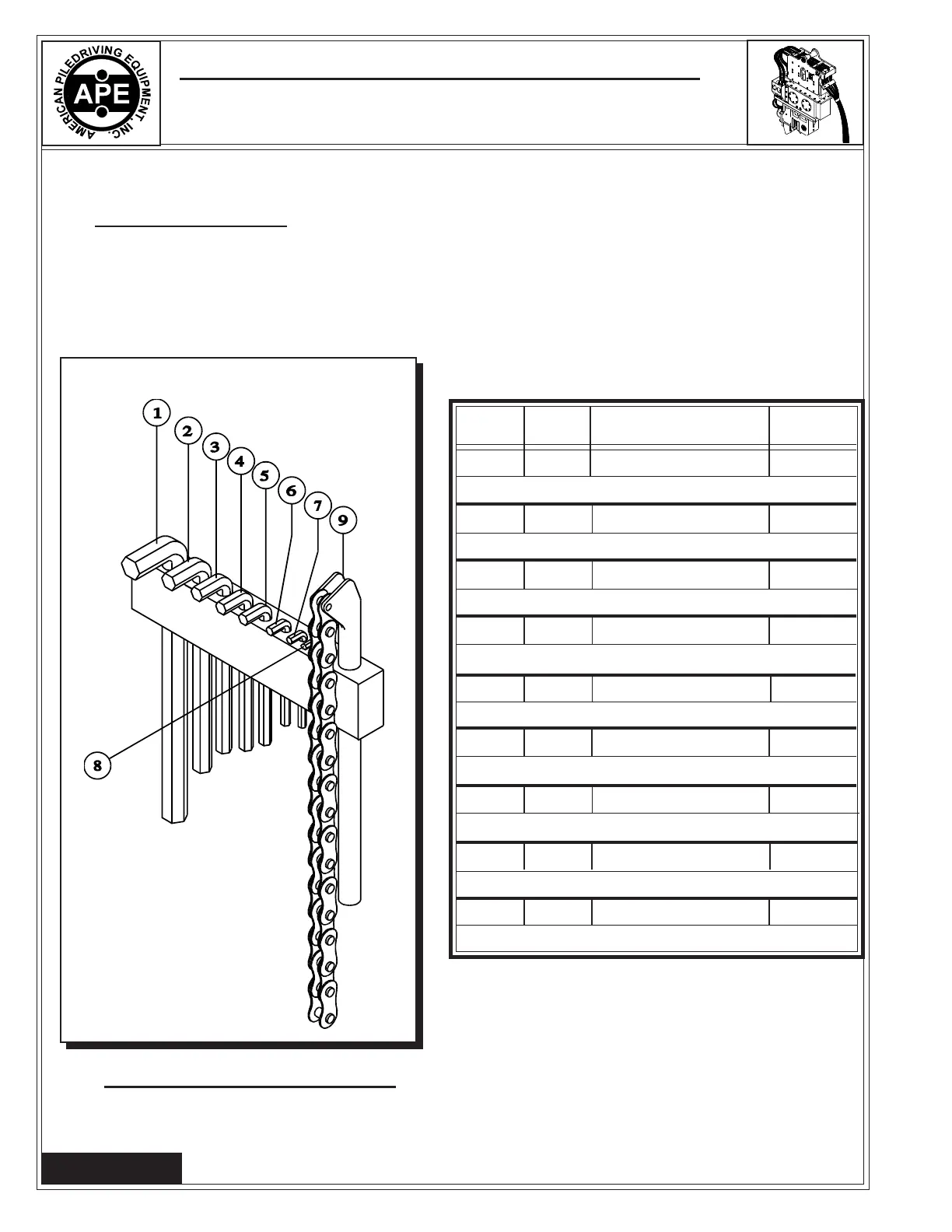

Mounted inside the Model 260 Power Unit is a set of tools frequently used for the maintenance of the
APE Model 50 Vibratory Hammer. The following figure and table shows the location and the use for
each tool.
Table 2-E. Tool Set Identification
Figure 2-E. Tool Set Identification
ITEM QTY DESCRIPTION PART#
Page 2-6
