APE 50 - Maintenance; Daily Maintenance Required Prior to Operation; Checklist Once Power Unit Engine Is Started

7032 SOUTH 196th - KENT, WA 98032 - (253) 872-0141 / FAX (253) 872-8710
OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
V. MAINTENANCE
V-1. Daily Maintenance Required Prior to Operation
1.) Visually inspect the entire vibro for loose nuts or bolts. Put a wrench on the clamp bolts
and check them for tightness.
2.) Grease the Jaw Plunger on the clamp housing.
3.) Check the oil level in the vibrator. Hang vibro from crane and look at sight gauge. Make
sure the oil is half way up gauge. If you cannot read it then you can't run the vibro. Remove
the gauge and clean it by spraying a shot of starting fluid at it.
YOU MUST KNOW THE LEVEL!
4.) If the oil is milky or black then change it. Change the oil every 75 hours regardless.
5.) Check the fluid level in the power unit hydraulic tank.
6.) Look at all the hoses. Check for cuts or other damage that might cause an oil leak.
7.) Check the rubbers in the suppressor housing. Look for cracks.
8.) Perform all start up checks as per the "start-up procedures" in the Power Unit manual.
V-2.
Checklist Once Power Unit Engine Is Started
1.) Check all hydraulic hoses for leaks. Make sure they hang free with no kinks.
2.) Check inside the Power Unit. Look at all hoses and valves, check for leaks.
3.) Check filter indicator with engine running at full rpm. Replace if necessary.
4.) Check wire rope sling and make sure it is in excellent condition.
5.) Check jaws for wear. Replace if necessary.
6.) Close jaws, make sure clamp light comes on.
IF THE OIL LOOKS
BLACK OR MILKY THEN
DRAIN THE GEARCASE
AND ADD NEW
HYDRAULIC OIL.

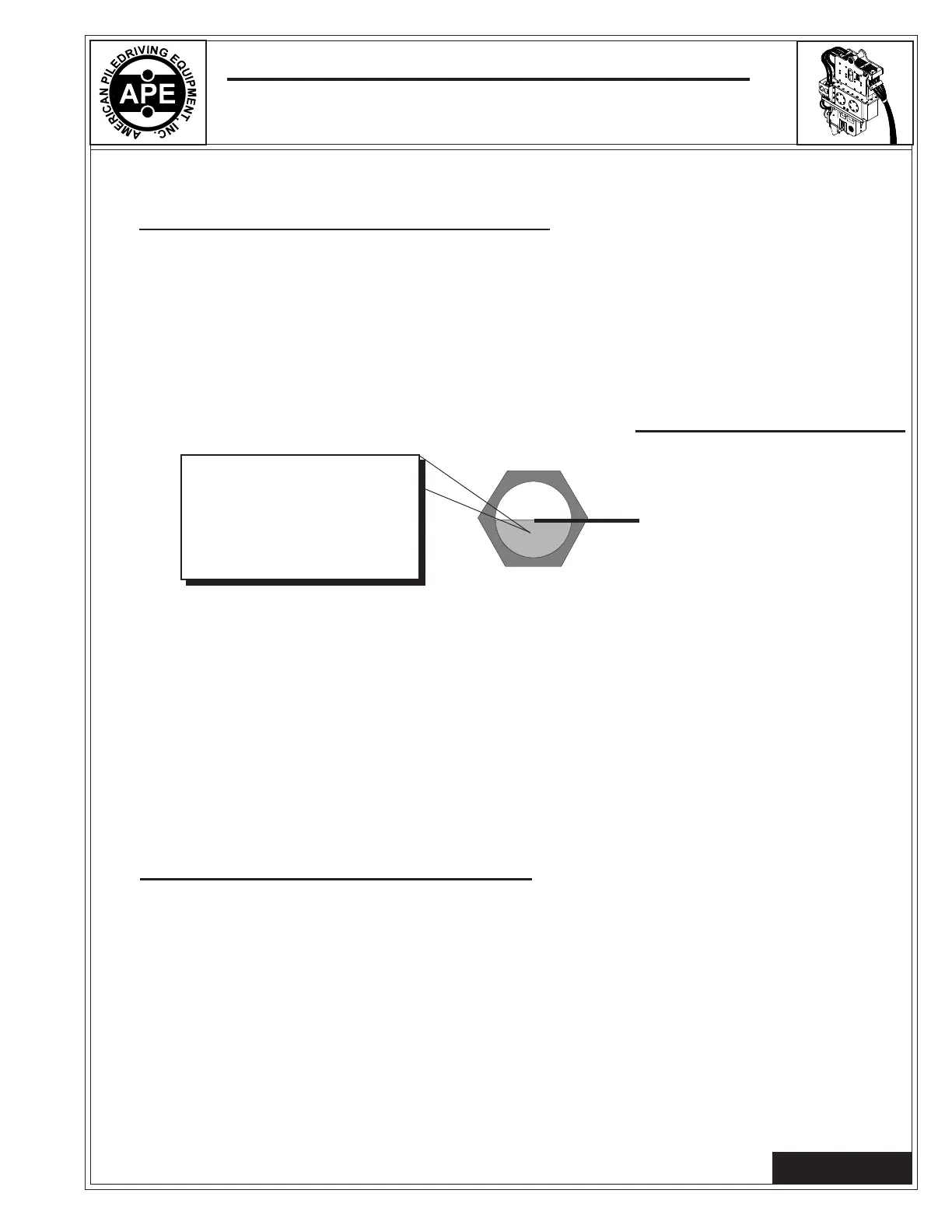

Oil Level
Schaffer 268 or equal.
Sight Gauge
Page 5-1
