APT 8520 - Step Mode - Test Parameters

© Ikonix USA
36
7. After entering the le name press the ENTER
key on the keypad to save the le name and
display the test parameters for editing:
8. The test parameters can be edited in the
exact same manner as the system parameters,
using a combination of the rotary knob and
keypad.
4.4.6 Step Mode – Test Parameters

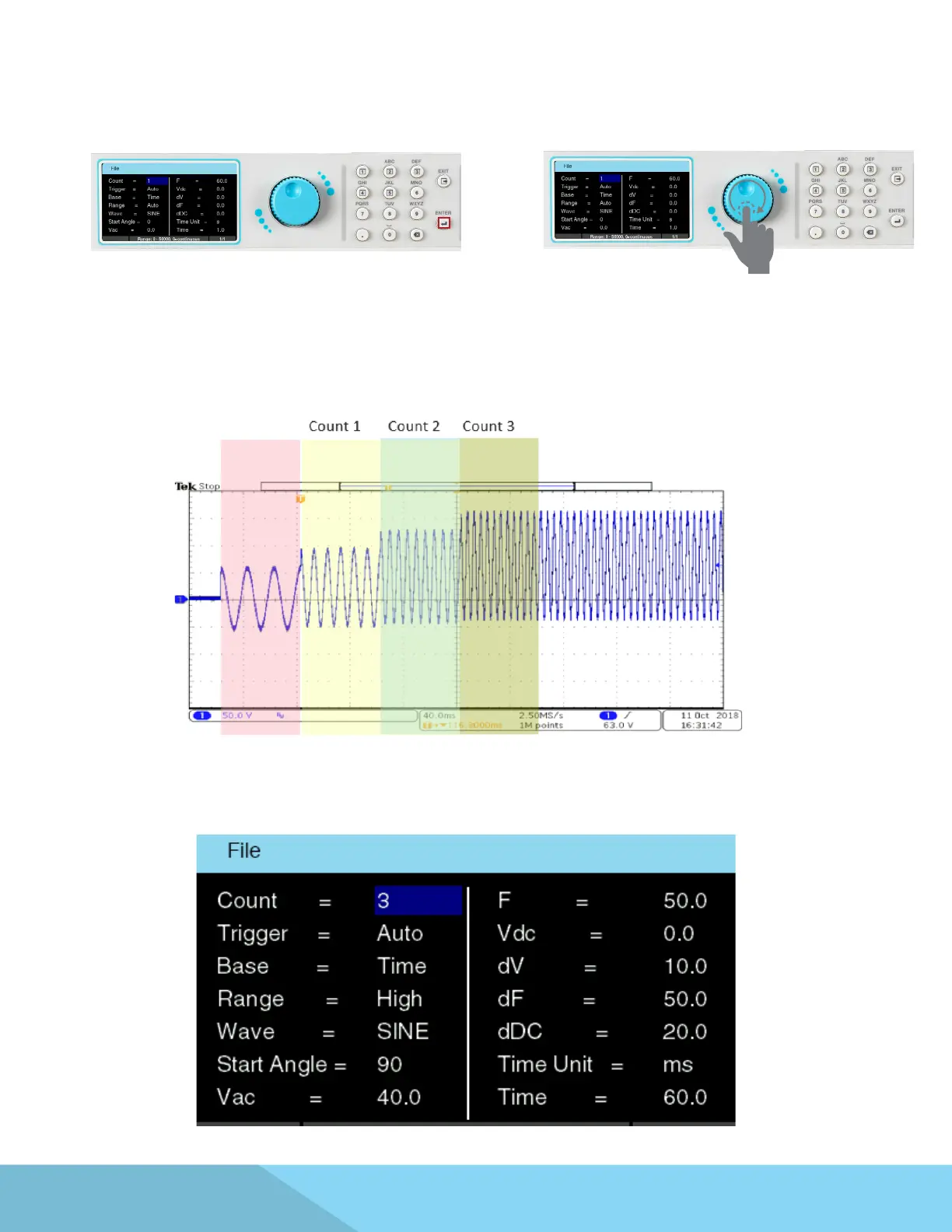

The Step Mode allows you to create and generate step-up outputs based on your dened voltage,
frequency, and interval settings. A typical waveform for Step Mode will look like the following:
The above waveform was generated using the following parameters of the Step Mode:
