AQUA SALT
+
MAINTENANCE AND INSTRUCTION MANUAL
Salt chlorine genera ENGLISH
ADSP7000753 rev. 5.0 09/07/2019 15/51
3.3
Hydraulic connections
To properly install the chlorine generator in your system, we recommend to create a deviation on
which to place the electrolytic cell, as indicated in the diagram below. However, installing the
generator on the main pipeline does not affect the its correct functioning. See paragraph 3.1.1 for
further information.
3.4
Electrical connections
• Cut the power supply during installation.
• Check that the voltage indicated on the unit (180..260 VAC @ 50/60 Hz) corresponds to
the voltage available at the installation place before connecting the devices.
• If the supply cable is damaged, please contact the manufacturer, the local representative
or other qualified personnel to replace it and prevent any danger.
• Electrical connections must be done exclusively by authorized and qualified personnel, in
compliance with the regulations of the Country of installation See the picture below for an
example of electrical connections.
• It is possible to supply the control box by connecting it to the electrical system with the
supplied cable. It is also possible to connect it to an external timer, to another control box
or to a main switch (see letter E, picture 5). Moreover, you will be able to make the chlorine
generator work depending on the activation of the circulation pump by connecting the
device as indicated in picture 5, letters B and D. For any other connection, please contact
your sales representative.

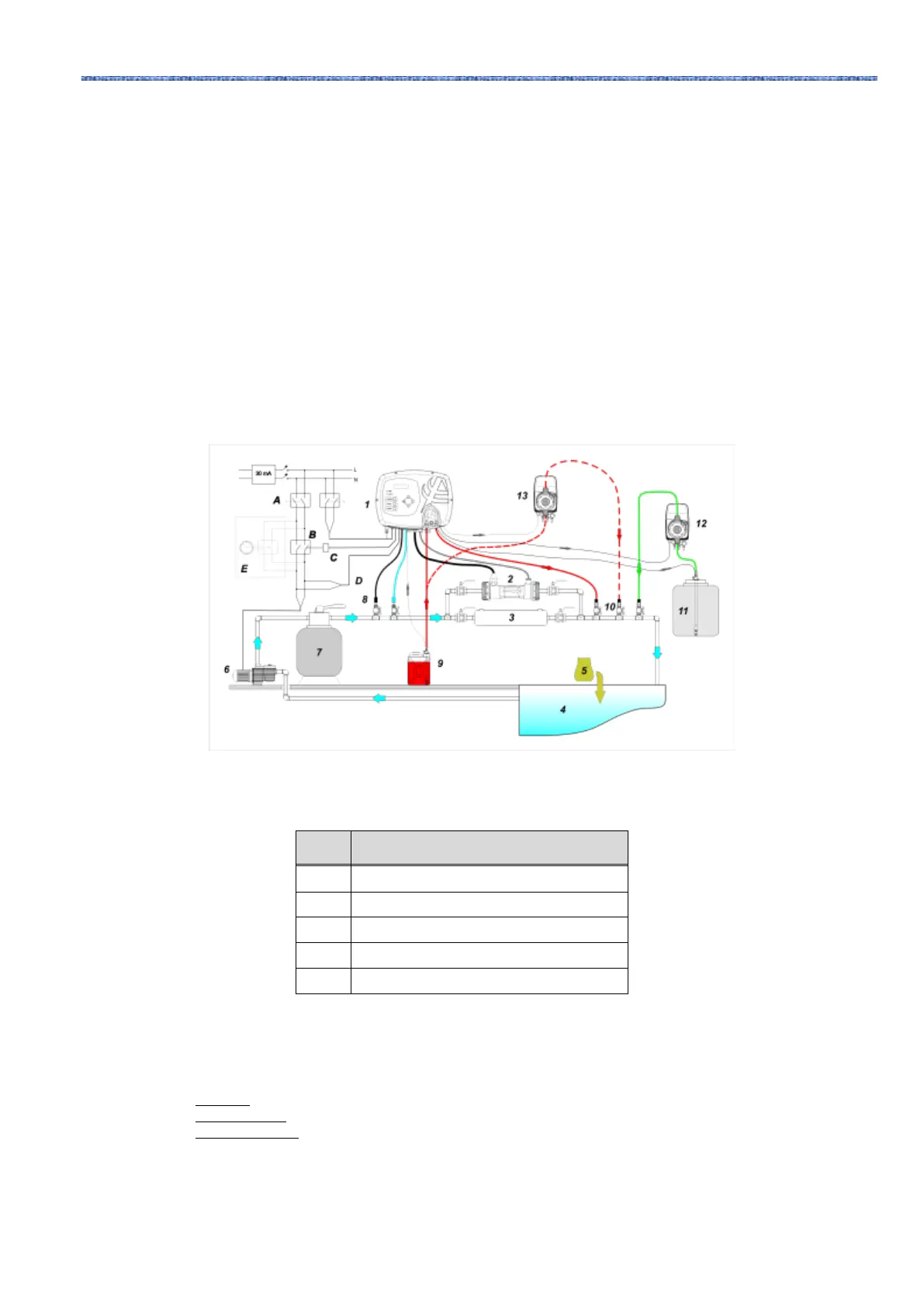

5 Example of connections Hydraulics and Electrical
3.5
System
activation
When chlorine generator is activated for the first time and the pool contains water without chlorine, we
recommend to run the Boost mode. This operating mode performs a shock chlorination, producing chlorine
at its maximum capacity for 12 hours. The daily chlorine production must be set as a function of the number
of bathers, depending on the water temperature and size of the pool (with the exception of the proportional
operation mode). To activate the chlorine generator, it is necessary to adapt the following parameters to
the configuration of your system:
Cell type: insert the capacity value of your pool's cell (50, 100, 150, 200).
Pool capacity: insert the volume (cu. m) of your pool
Operating mode: choose how to operate the chlorine generator (external timer, proportional, see the
opening pages of the manual).
Description
A
Bipolar switches
B
Contactor to activate the circulation pump
C
Control relay of the contactor
D
Circulation pump operating feedback
E
External auxiliary activation
