Aqua SALT+ - Annex B Dimensions; Annex C Default Parameters

AQUA SALT
+
MAINTENANCE AND INSTRUCTION MANUAL
Salt chlorine genera ENGLISH
ADSP7000753 rev. 5.0 09/07/2019 30/51
7.2
Annex B
Dimensions

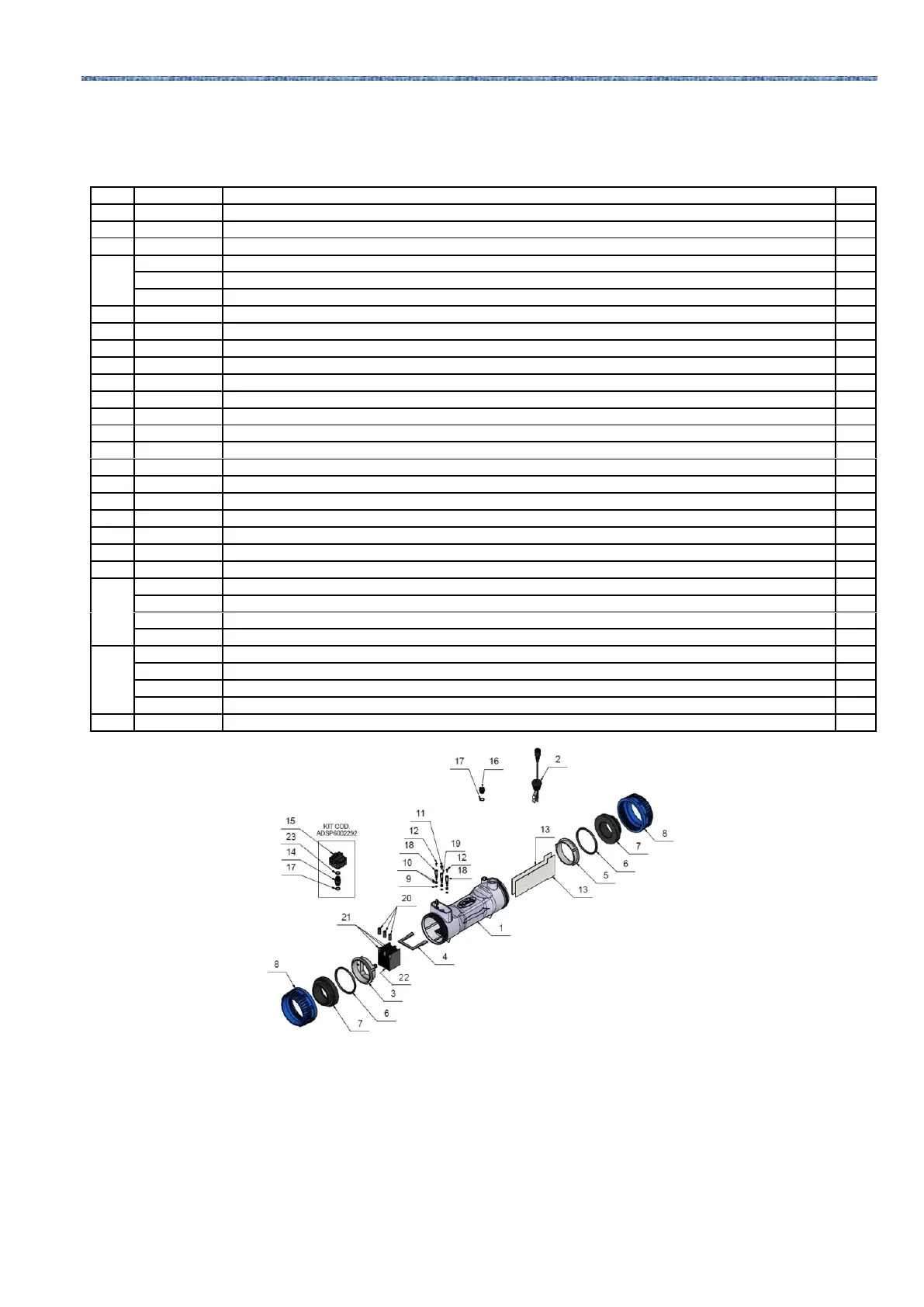

Below you can see the diagram of the electrolytic cell and its components, together with a table
of the codes required to order the parts to be replaced in case of breaking
NUM.
CODE
DESCRIPTION
Q.TY
1
ADSP6002249
AQUA SALT
+
CELL TUBE WITH RESINATED TEMPERATURE SENSOR
1
2
ADSP6002248
ASSEMBLY OF AQUA SALT
+
FLOW SENSOR
1
3
ADSP6002211
AQUA SALT
+
PLATE LOCKING RING
1
4
ADSP6002150
SEPARADOR DE BLOQUEO DE ELECTRODOS L50-150
1
ADSP6002330
ELECTRODE LOCKING SEPARATOR L100
1
ADSP6002340
ELECTRODE LOCKING SEPARATOR L200
1
5
ADSP6002220
AQUA SALT CELL CLOSING RING
1
6
ADSP6002230
OR - RIF. 6325 - NBR
2
7
ADSP6002300
AQUASALT D63 PIPE REDUCTION
2
8
A6010720
BLUE RING NUT FP3
2
9
ADSP5007022
OR - RIF. 2015 - BLACK VITON
3
10
ADSP5007199
OR - METRIC D.4x1.5 FKM 75 - BLACK VITON
6
11
ADSP6000812
*SCREW M 4 X 8 UNI 7687 (TCTC) STAINLESS A2
1
12
ADSP6000713
**SCREW M 3 X 8 UNI 7687 (TCTC) STAINLESS A2
2
13
ADSP6002275
AQUA SALT 50 FLOW SENSOR CONVEYOR
2
14
ADSP6001040
FITTING 1/4 "M - 1/4" M FOR AQUA SALT
+
PRESSURE SWITCH
1
15
P9020050
MINIMUM PRESSURE SWITCH 1/4 "FNPT MAX 40-60 PSI
1
16
S6060050N
1/4 "G PP BLACK FINAL CAP
1
17
MG011300
OR - RIF. 11X2 - FKM75 - BLACK VITON
2
18
ADSP6002208
** PIN HOLDER AQUA SALT
+
- AISI 316 M3 - MALE PIN
2
19
ADSP6002209
** PIN HOLDER AQUA SALT
+
- AISI 316 M3 - MALE PIN
1
20
ADSP6001042
AQUA SALT
+
PROTECTIVE CAP FEMALE PLATE TITANIUM
3
21
PTEPL050106F
TITANIUM PLATE HOLDER RANGE ELECTRODE L 50 - AQUA SALT
+
3
PTEPL100107F
TITANIUM PLATE HOLDER RANGE ELECTRODE L 100 - AQUA SALT
+
3
PTEPL150108F
TITANIUM PLATE HOLDER RANGE ELECTRODE L 150 - AQUA SALT
+
3
PTEPL200109F
TITANIUM PLATE HOLDER RANGE ELECTRODE L 200 - AQUA SALT
+
3
22
PTESL050110F
TITANIUM PLATE SIMPLE ELECTRODE L 050 - AQUA SALT
+
10
PTESL100111F
TITANIUM PLATE SIMPLE ELECTRODE L 100 - AQUA SALT
+
10
PTESL150112F
TITANIUM PLATE SIMPLE ELECTRODE L 150 - AQUA SALT
+
10
PTESL200130F
TITANIUM PLATE SIMPLE ELECTRODE L 200 - AQUA SALT
+
10
23
MB010570
WASHER D. 12 x 19 x 2 RUBBER
1
7.3
Annex C Default
Parameters
The default parameters are the values that have been assigned to parameters and
variable during the development of the system and that you can restore from the System
Setup menu to "restore default settings"
Chlorine content: 100%; Percentage of chlorine in Winter Mode: 85%; Polarization time: 4 hours; Cycle time: 15 minutes;
Set point chlorine: 1.00 ppm; band proportionality of chlorine: 0.5 ppm; set point pH: 7.2; way of working pH: acid; band
proportionality pH: 1.0; cycle period of pH: 5 minutes; set point salinity: 4.0 g / l; band proportionality salinity: 1.5 g / l; cycle
period salinity 150 minutes; tank capacity: 100; generator operation: external timer; filter flow: 10 seconds; filter shutter: 3
hours
