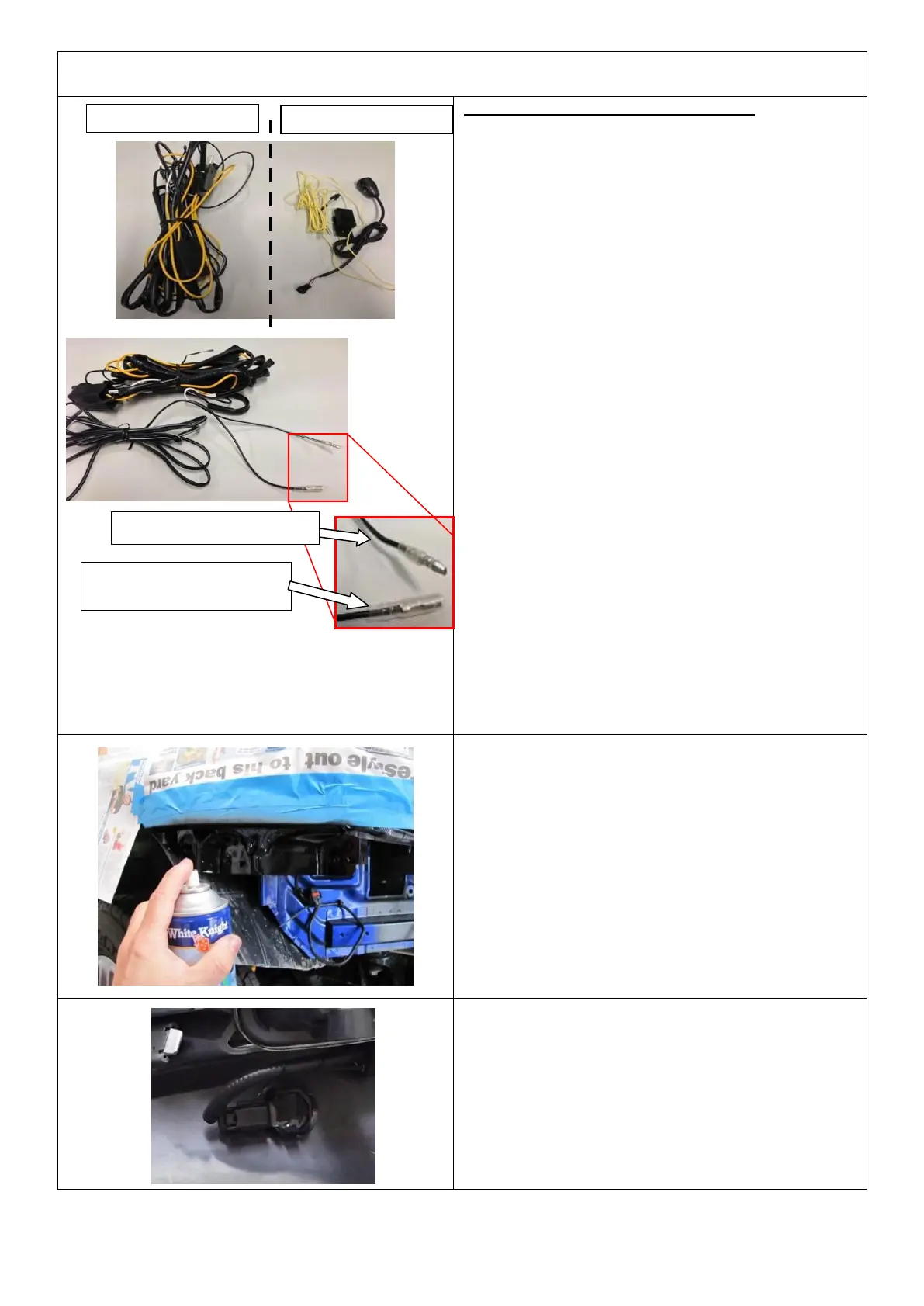

For vehicles with factory fog lamps:
28. The factory fog light switch can be used in
conjunction with the ARB loom 3500530 to
power the ARB fog lights.
29. Discard loom switch and thin yellow wire from
3500530.(Harness from bullet terminals to
switch)
30. Install ARB wiring loom 3500530 to vehicle.
Do not install switch or yellow wire with
fuse.
CAUTION: Ensure that all cables are securely
fastened away from sharp, abrasive or hot
surfaces.
31. Identify the black/white trigger wire from
3500530 as shown.
32. Connect the black/white trigger wire to the
positive terminal on the factory fog light wire
using the supplied scotch lock or a female
bullet connector.
33. Tape the bullet terminal from the black wire
from 3500530 to prevent short-circuits.
Securely fasten it away from sharp, abrasive or
hot surfaces.
Notes:
-Use a test light or multimeter to pick the
appropriate wire to attach the loom to.
-Check the operation of all lights wired during
bar fitment
34. Carefully mask the area surrounding each
side of the guard as shown (RH shown).
35. Thoroughly clean the area.
36. Using Matte Black spray paint, paint the
masked area.
37. Allow to dry.
REPEAT FOR LHS
38. If parking sensors are fitted, carefully unclip
sensors and sensor loom from bumper bar and
set aside for fitment to bull bar.
