Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

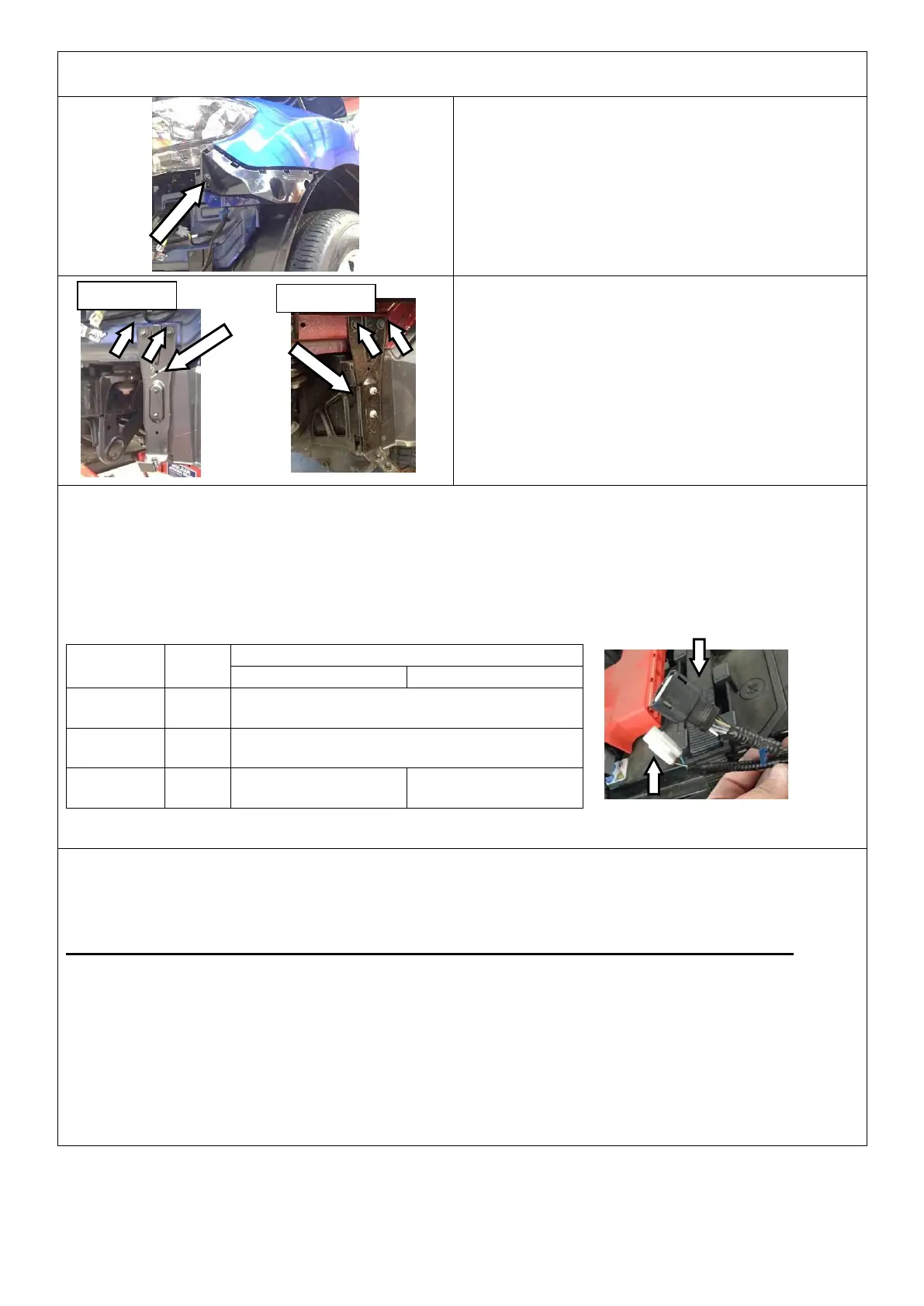

22. Remove screws retaining RH & LH
bumper retention blocks to vehicle and
remove the retention blocks from both
sides and set aside.
23. Remove and discard the inner guard
support brackets from both sides of the
vehicle.
24. Following fitting instructions 3789197 supplied in kit 6821287; install the LED combination
lamp looms (also supplied in same kit).
Notes:
-Use a test light or multimeter to pick the appropriate wire to attach the loom to.
-Cover each joint with either insulation tape or heat shrink tube.
- Use cable ties to secure all wiring
BLK/Purple (RHS)
BLK/Yellow (LHS)
Blue/Orange (RHS)
Green/Blue (LHS)
Brown/Yellow (RHS)
Green/Yellow (LHS)
Pink/Yellow (RHS)
Green/Orange (LHS)
NOTE: The wiring in vehicles fitted with factory 35W fog lights (2015 ON Wildtrak Model or
Everest) is not suitable for running ARB fog lamps. Proceed to step 28.
For vehicles without factory fog lamps and where optional ARB fog lamps are to be fitted:
25. Install optional ARB wiring loom 3500530 and switch into vehicle. Refer to instructions supplied
with loom. Place switch inside cabin in a suitable position.
26. Connect optional ARB fog lights (# 3500590) to wiring loom.
27. Proceed to step 34.
CAUTION: Ensure that all cables are securely fastened away from sharp, abrasive or hot
surfaces.
