Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
BUMPER CUT FOR RANGER: STEP 39-61
If fitting to Everest skip to step 62

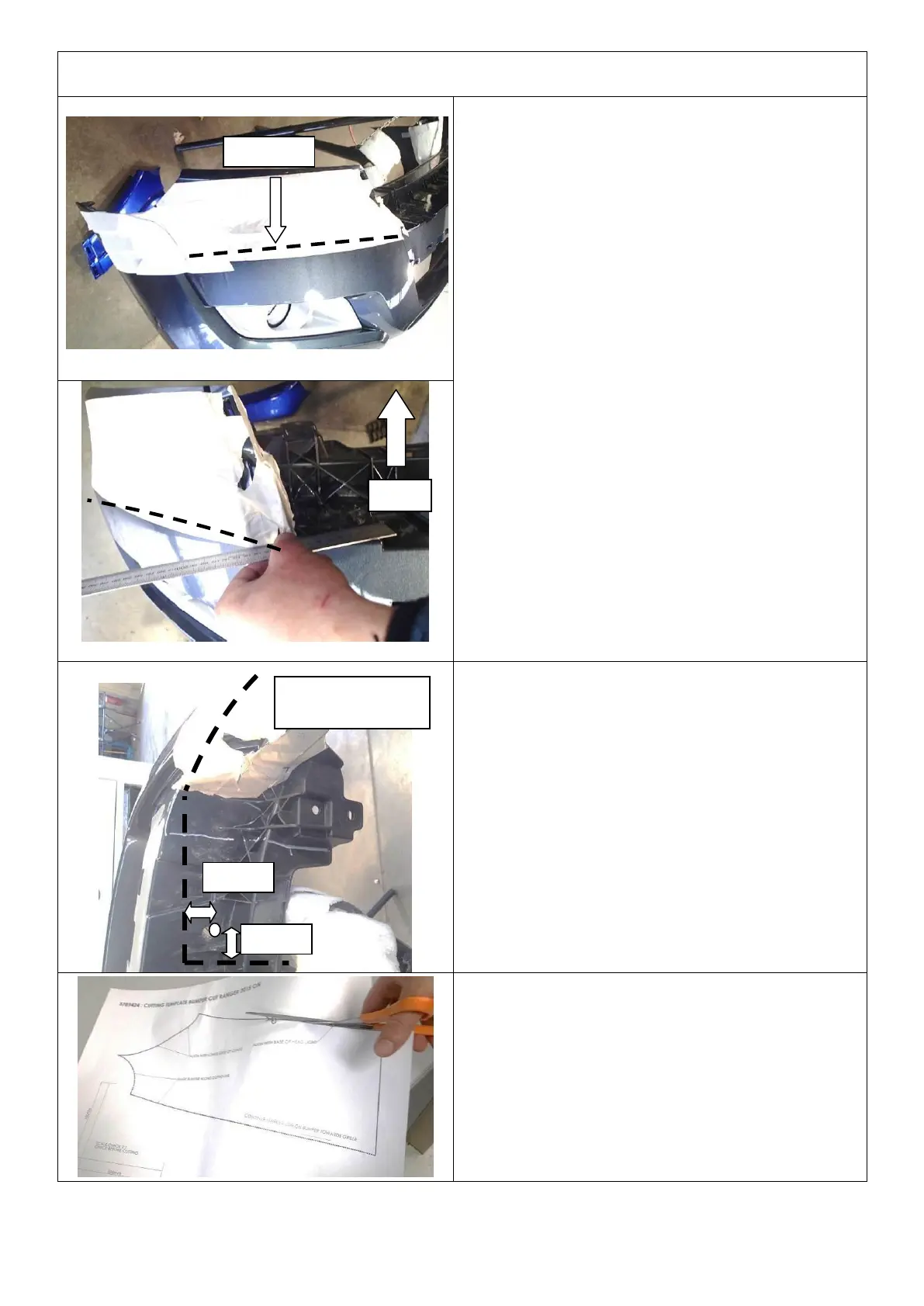

39. Place the bumper on a stand facing upwards.
40. Using masking tape, cover front corner section
of bumper.
41. Using ridge on bumper as a guide, mark a line
following the ridge across the front section of
bumper as shown.
42. Continue the line onto the bumper as shown
using the edge of bumper as a guide.
43. Mark a line perpendicular to bumper 30mm
inwards from locating hole on top surface as
shown until it meets line on bumper edge.
44. Using scissors carefully cut out the supplied
template.
To Next Page
