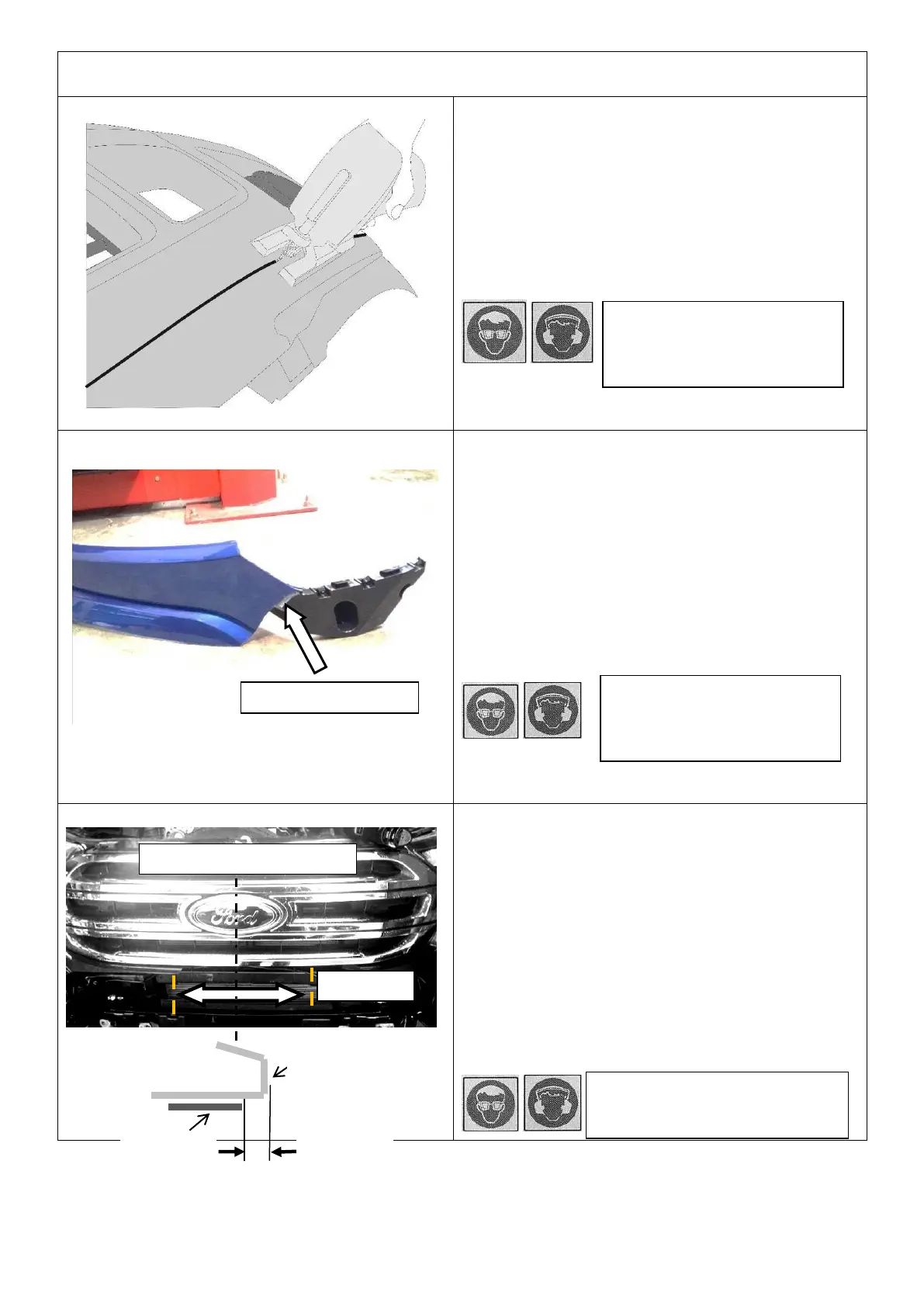

71. Using a jig saw or similar, carefully cut along
marked lines.
72. De-bur the cut edges with a file or sandpaper.
Note: It is advised that you take steps to prevent
damage to the bumper when cutting such as
placing extra masking tape on the kept portion
of the bumper.
73. Position cut bumper onto bumper retention
block set aside and mark a line onto block as
shown using a white marker pen. (RH side
shown)
74. Remove cut bumper and carefully cut along
inside edge of marked line using a multitool.
75. Repeat for LHS.
76. Use a file or sandpaper to de-bur all cut
edges.
77. Set aside for re-fitment later on.
IF FITTING WINCH:
If fitting winch additional cut out for bumper is
required.
78. Using a multitool, cut a section 240mm wide
and 5mm rearward of grille out of bumper.
NOTE:
-To aid in cutting of bumper removal of grille is
recommended.
-Keep bumper as one piece.
-Cut out is central to bumper.
Warning: Cutting operations
can result in flying metal
debris, safety glasses should
be worn.
Warning: Cutting operations
can result in flying debris,
safety glasses should be worn.
Cut out is central to grille
Warning: Cutting operations
can result in flying debris,
safety glasses should be
worn.
