FITTING PROCEDURE

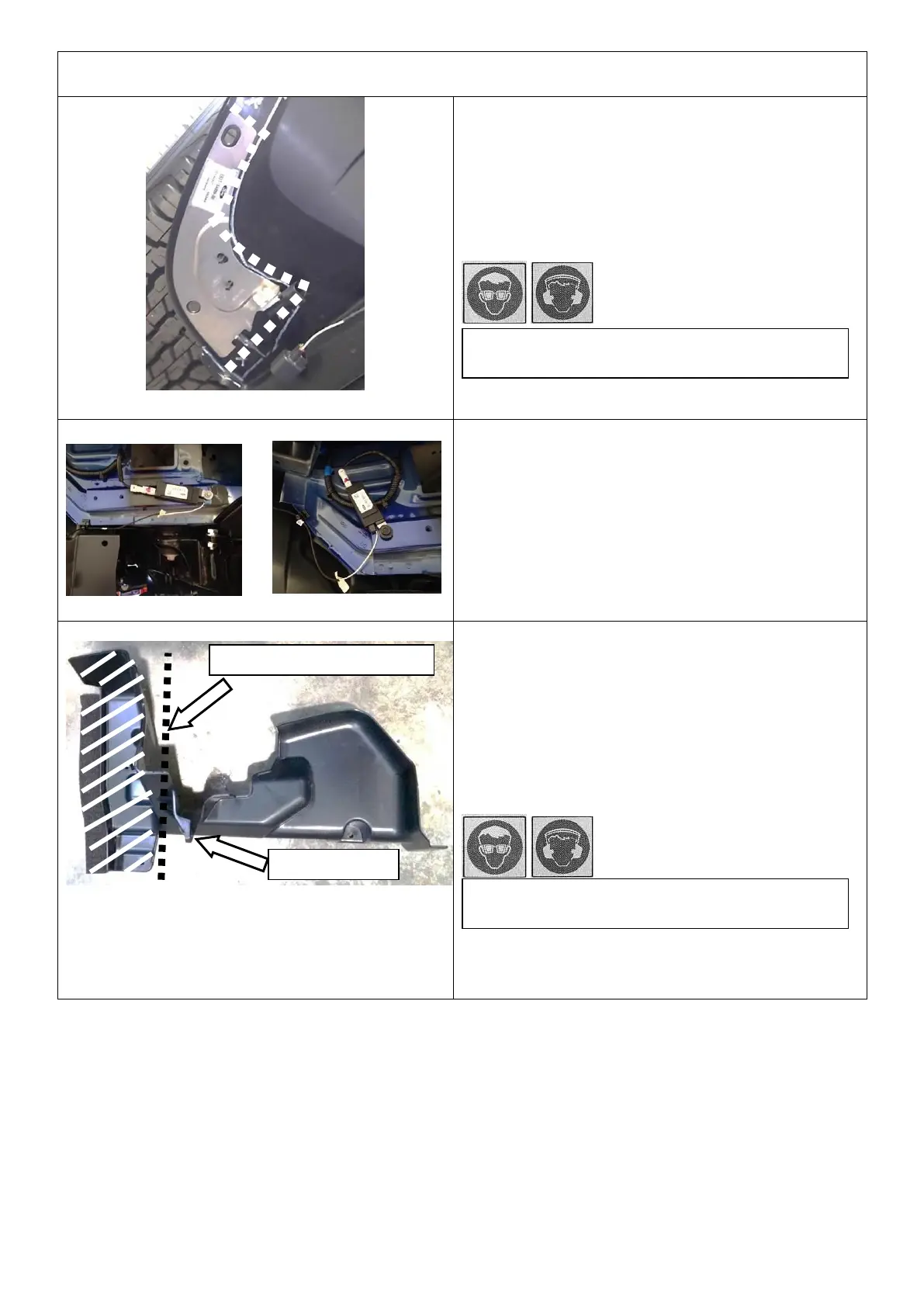

79. Remove clips from digital aerial antenna and
disconnect at connector.
80. Using a multitool carefully cut around metallic
plate corresponding to digital aerial antenna.
81. Retain antenna for remittent later on.
82. Unbolt digital radio module and unclip wire
harness.
83. Reattach digital radio module to outer most
bolting position and re-attach wire harness.
FOR RANGER:
84. Mark a line onto RH air deflector removed in
step 7 as shown 30mm below mounting tab.
85. Carefully cut along marked line and dispose of
lower section of air deflector.
86. De-bur the cut edges with a file or sandpaper.
87. Repeat for LH air deflector.
Warning: Cutting operations can result in flying
debris, safety glasses should be worn.
Mark line onto air deflector
Mounting tab
Warning: Cutting operations can result in flying
debris, safety glasses should be worn.
