Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FOR RANGER:

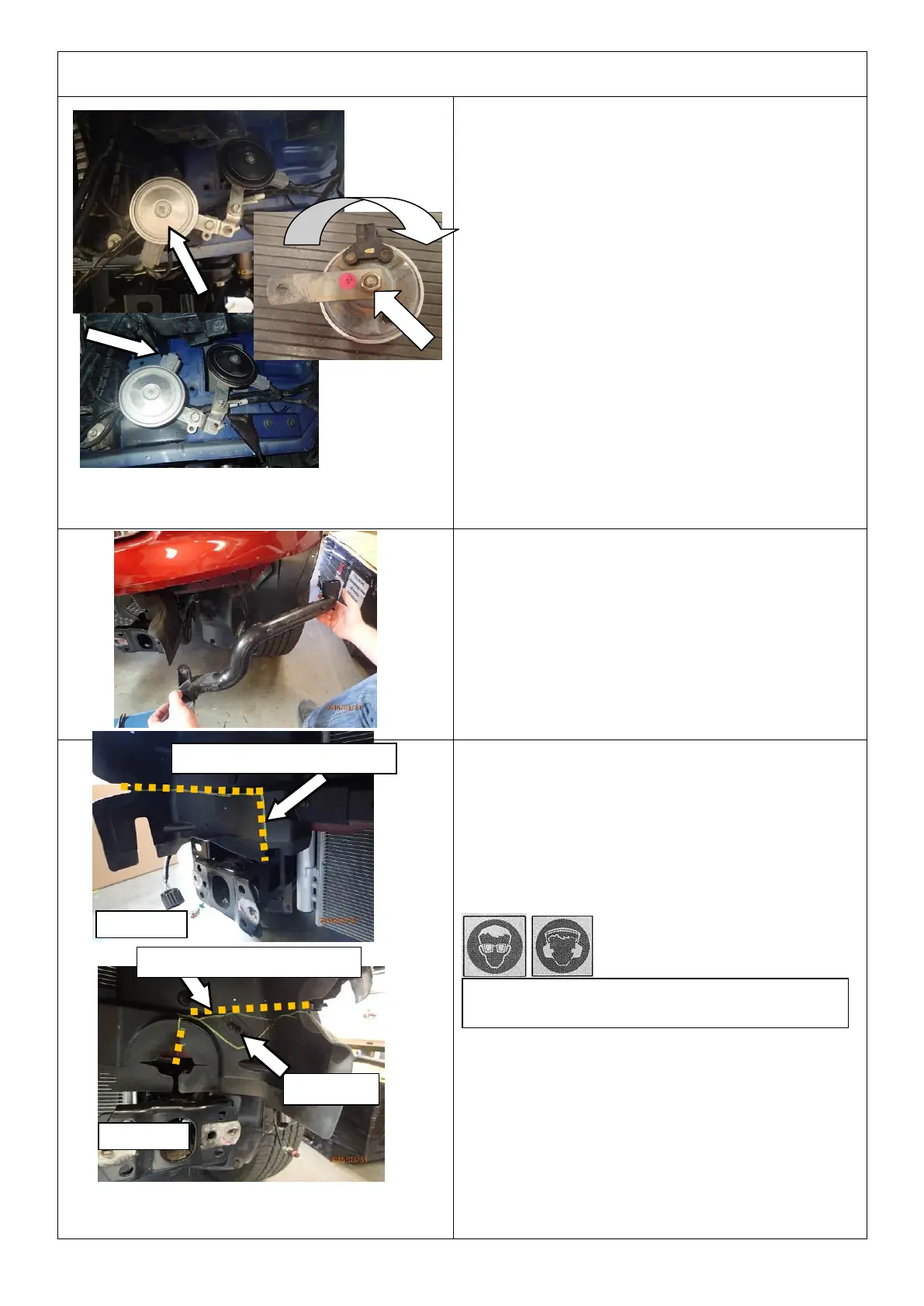

88. The horn & harness will require to be rotated
for clearance to brackets. Unplug the harness
and remove the horn by removing the
mounting bolt.
89. Turn the horn over and loosen the retaining
nut. Rotate the arm 180°, and tighten the
retaining nut.
90. Re fit the horn in its original position and re-
route the harness to the top. Use cable ties if
necessary to reposition the harness.
FOR EVEREST:
91. On LH side remove 2 X screws holding duct to
vehicle.
Carefully detach duct piece from vehicle.
FOR EVEREST:
92. On the LH side carefully detach sensor.
93. Mark lines on air deflectors as shown.
94. Carefully cut along marked line and dispose of
lower section of air deflector.
95. De-bur the cut edges with a file or sandpaper.
Warning: Cutting operations can result in flying
debris, safety glasses should be worn.
Mark line onto air deflector
Mark line onto air deflector
