Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FOR EVEREST

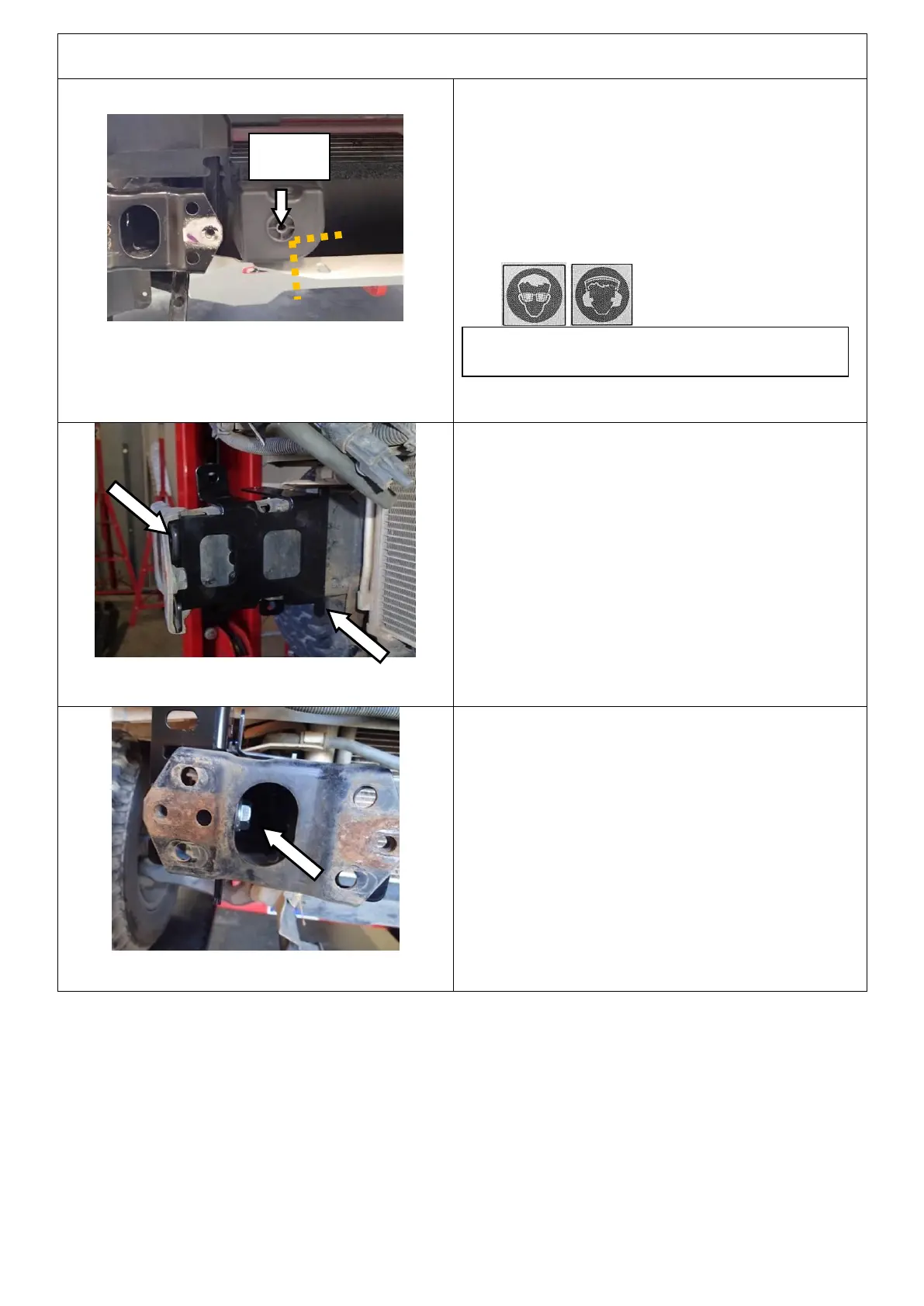

96. On RH side of lower air deflector mark a
vertical and horizontal line 15mm from the
centre of the clipping point.
97. Using the marked lines as a guide cut out a
50mm deep section form the deflector.
98. De-bur the cut edges with a file or sandpaper.
99. Fit the inner brace with the packer to the
chassis rail end. Ensure that the front edge is
pushed forward to the chassis flange. The
brace may need to be tapped to ensure a flush
fitment to the chassis is achieved.
Note: Ensure that packer is placed
correctly, with tabs pushed against brace.
100. Fit the M16 x 35 flange bolt through the front
access cut out of the front flange of the
chassis.
Warning: Cutting operations can result in flying
debris, safety glasses should be worn.
To Next Page
