Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

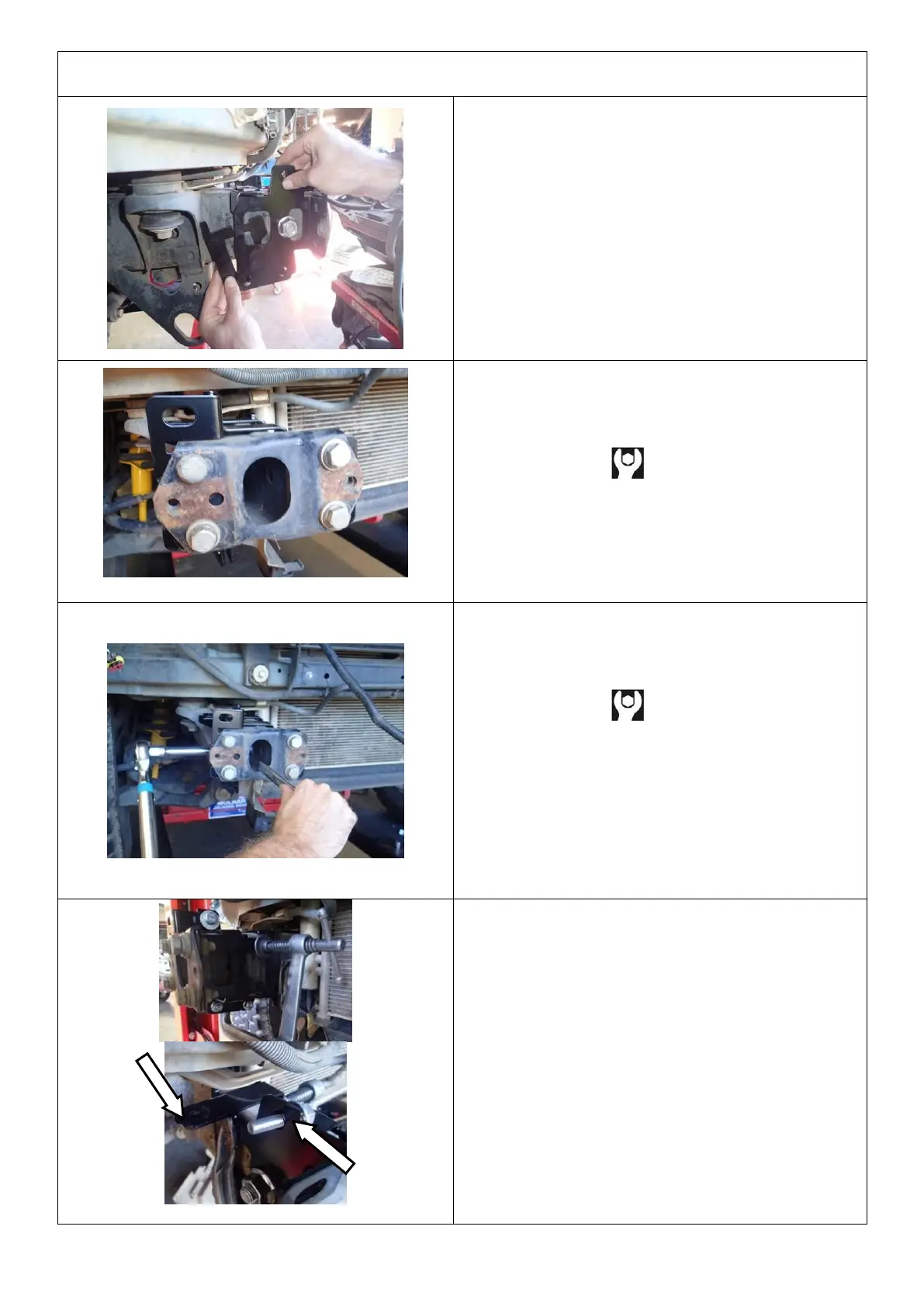

101. Loosely position the outer bracket brace with
the packer to the chassis rail. Fit the M16
flange nut to hold it in place. Ensure that the
front edge is pushed forward to the chassis
flange.
NOTE: Ensure that packer is placed and
aligned correctly.
102. Fit 4 x M12 x 35 bolts, 4 x M12 flat washers, 4
x M12 Flange nuts.
M12 - 77 Nm.
NOTE: Do not fit the M12 spring washers these
will be fitted later on.
103. Using a spanner to hold the M16 flange bolt,
torque the M16 flange nut.
M16 - 90 Nm.
NOTE: Take care to torque as per requirement.
DO NOT torque outside the specs provided.
104. Using a large G-clamp, clamp the top rear
corner of the outer and inner brace together.
This will make the alignment of the top flange
easier for fitment of the brace.
105. Fit the M10 x 1.5 x 45 bolt, M10 spring washer
and M10 flat washer.
