BUMPER CUT FOR EVEREST: STEPS 62-78

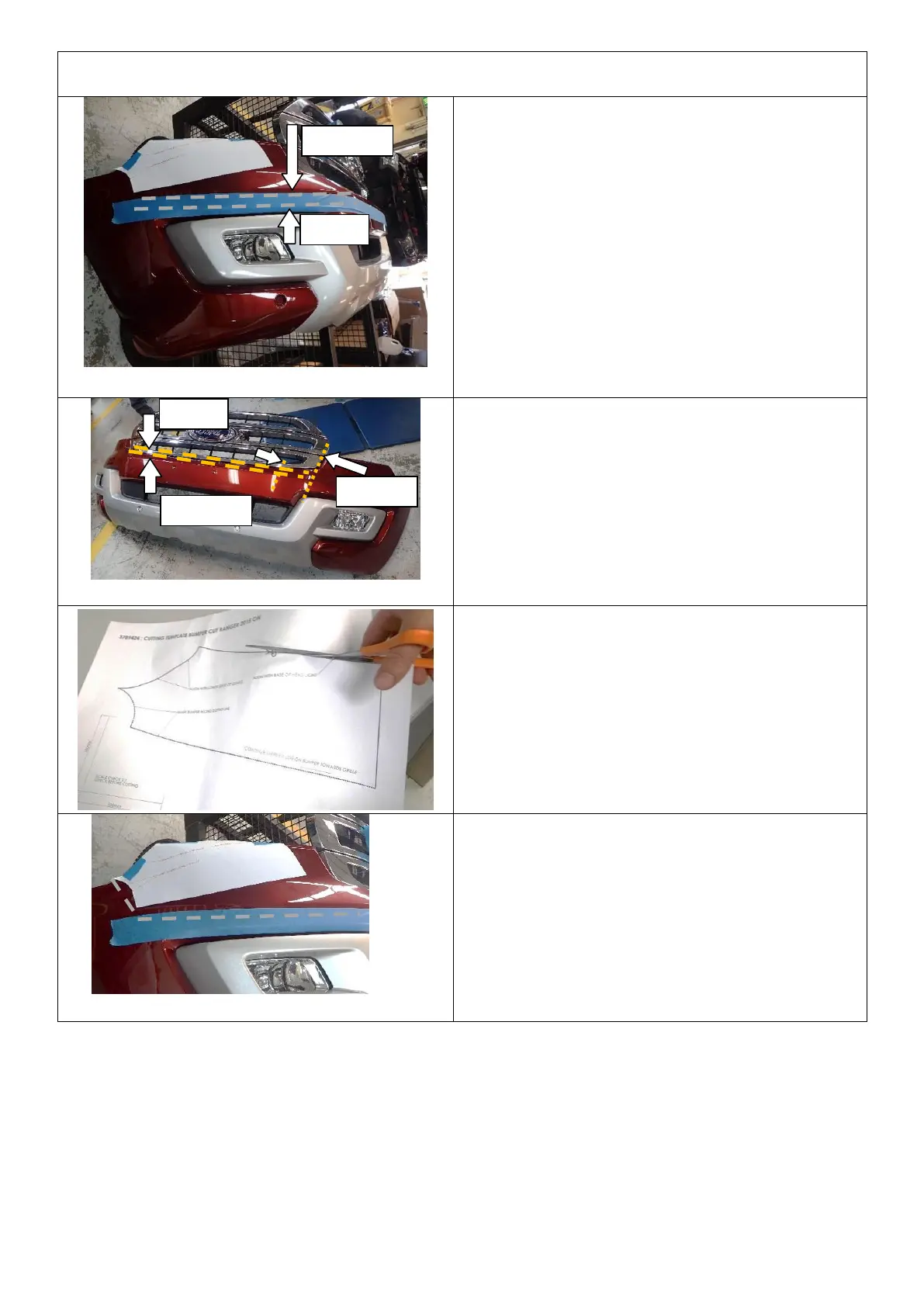

62. Place the bumper on a stand facing upwards.
63. Place 50mm masking take below the ridge of
the bumper.
64. On the masking tape, mark a line across the
bumper 5mm below the ridge line.
65. Below the grille place 50mm masking take
above the ridge of the bumper.
66. On the masking tape, mark a line 20mm
above from the ridge line.
67. On both sides of the bumper mark a vertical
line 100mm inboard of the edge of the grille.
68. Using scissors carefully cut out the supplied
template.
69. Position template onto bumper as shown and
using a marker pen, mark contour onto bumper
until it meets other line on bumper.
70. Carefully remove the template and repeat for
LHS.
