FITTING PROCEDURE

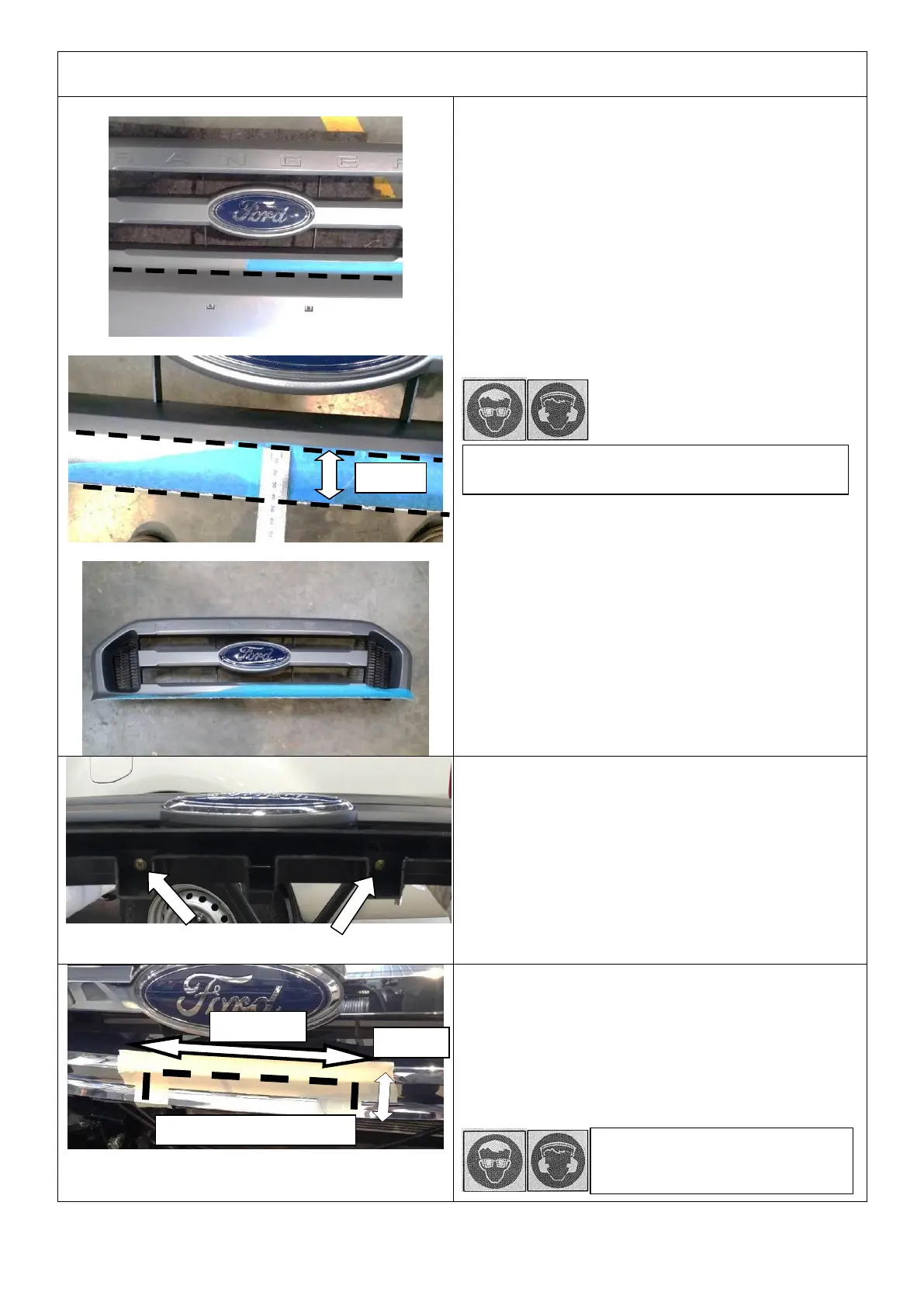

54. Place masking tape across front section of
grille where ridge is as shown.
55. Mark line onto grille 40mm below ridge in grille
as shown.
56. Using a multitool, carefully cut along marked
line.
57. De-bur the cut edges with a file or sandpaper.
58. For chrome grille, position pinch weld supplied
in kit along cut edge (centre the pinch weld
across width of grille).
59. Fit the two self tapping screws into the lower
section of the grille to join the two parts
together as shown
IF FITTING WINCH:
For Warn, Magnum and Bushranger control boxes,
additional cut out for grille is required.
60. Using a multitool cut a 240 X 40 mm section
out of lower section of grille.
61. Apply Pinch weld to cut edges.
40mm
Cut out central to grille
40mm
240mm
Warning: Cutting operations can result in flying
debris, safety glasses should be worn.
Warning: Cutting operations
can result in flying debris,
safety glasses should be worn.
