Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

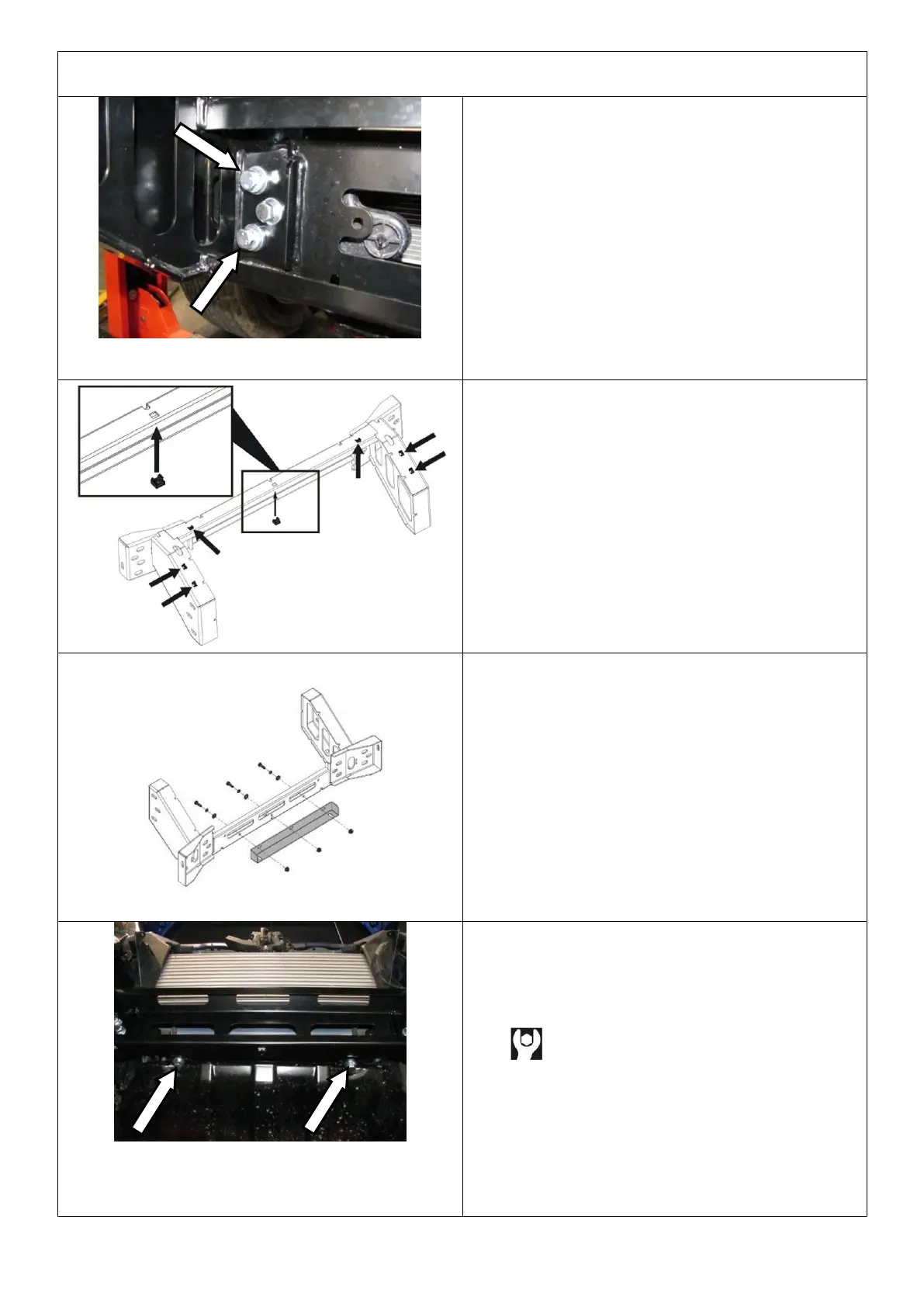

113. Place 2 x M12 x 35 bolts, 2 x M12 spring
washers, 2 x M12 flat washers and 2 x M12
Flange nuts into the 2 holes on the inboard
side of each chassis face plate. Leave loose
at this stage.
114. Repeat on the LH side.
115. Fit 7 x M8 cage nuts into the mount bracket
from the inside.
Note: A flat blade screw driver can be used to
aid placement of the cage nuts.
116. Attach the OE stone shield bracket to the
chassis mount using 3 x M8 x 25 black bolts,
3 x M8 black flat washers, 3 x M8 black
spring washers and 3 x M8 flange nuts.
Leave loose at this stage.
117. Re fit the OE stone shield to the bracket fitted
in step 116 using 2 x M10 x 30 SEMS bolts
and 2 x M10 flange nuts.
M10 - 44 Nm.
