Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
Note: If fitting a winch proceed from here using fitting instructions 3789337 supplied with
3500720 winch install kit. Once the winch is fitted please continue to step 131. If no winch
is being fitted continue from 131.

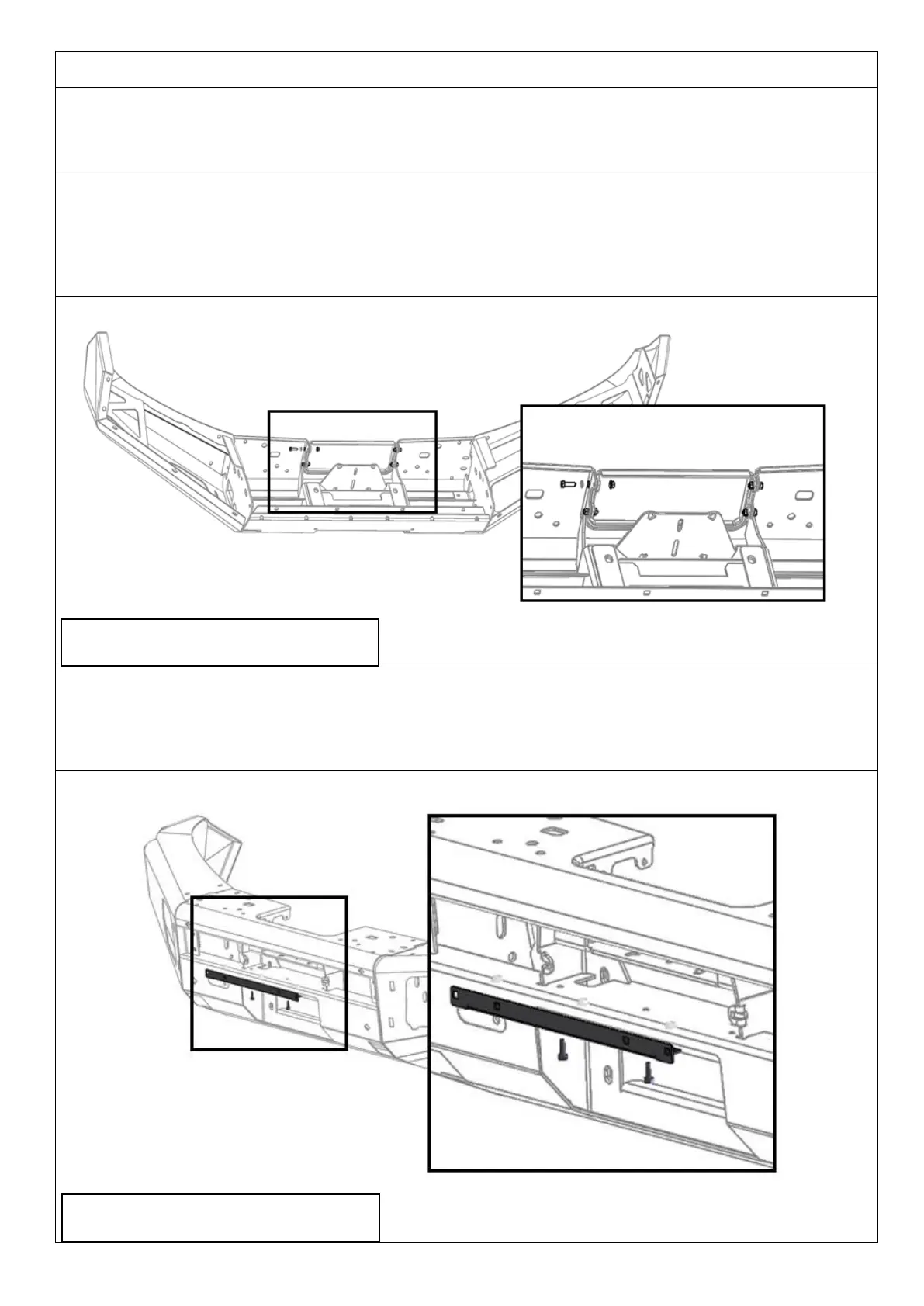

128. Slide the winch cover panel from the bottom up until it is level with the top face of the bar.
129. Fit the winch cover panel to the bar using 4 x M6 x 20 hex bolts, spring washers, flat washers and
flange nuts.
Warning: Be careful not to scratch the finish of the winch cover panel.
130. Fit the number plate bracket to the top face of the lower-centre pan on the bar using 3 x M6 x 20 hex
bolts, spring washers, flat washers and flange nuts.
Note: If you are fitting a winch, fit the folding number plate bracket supplied in winch install kit
“3500720 WINCH INSTALL KIT” – See fitting instructions 3789337
Generic image. Bull Bar shown may not
be representative of actual product.
Generic image. Bull Bar shown may not
be representative of actual product.
