Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
Note: The following steps show the fitment of the plastic moulded parts. The mouldings are
supplied in kits along with all fasteners required for fitment. It is important that the fasteners
supplied with each kit are only used for the mouldings from the same kit.
The kits included in this bar kit are as follows:
131. Layout the contents of each of the following kits ensuring the contents are kept separate from each
other.
Kit No.
Description
5100200
BUFF KIT 2PCE FRONT SECTION
3500880
SPLIT PAN MESH KIT
3163082
FOG SURROUND KIT
Buffer Kit – (Installation Dependent)
Kit No.
Description
5100220
BUFF KIT 2PCE REAR SAHARA TUBE
5100230
BUFF KIT 2PCE REAR SAHARA BMPR
132. Mark the grille panel to be cut at the 810mm marks at each end on the back face.
Note: When marked, double check the measurement with a measuring tool.
133. Use a hacksaw or similar cutting tool to carefully cut the grille panel at the positions marked in the
step above.
134. Discard the off cuts and clean up the cut edges using a file or sandpaper.

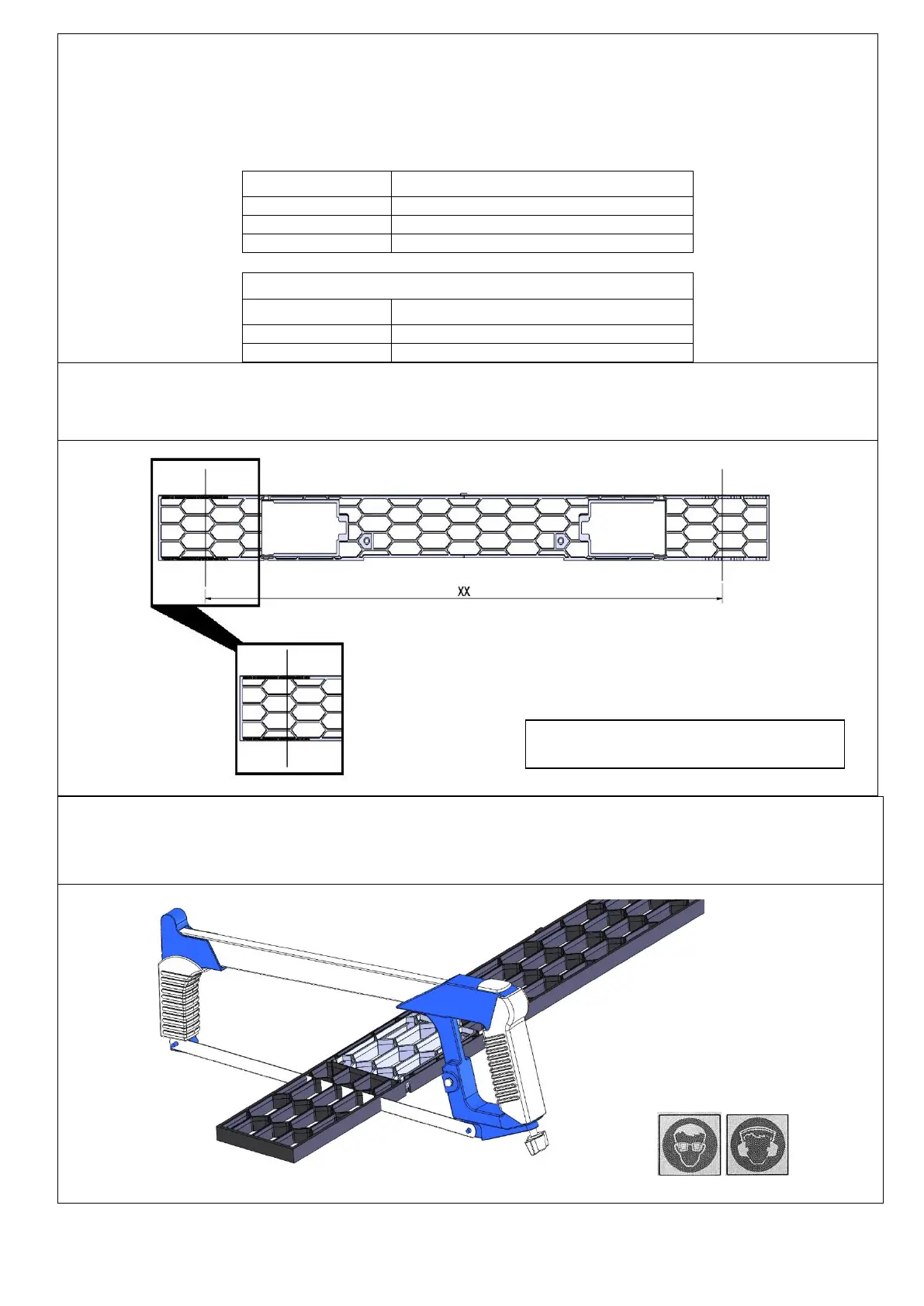

This picture is for reference only. Use
the measurement shown above.
