FITTING PROCEDURE – SAHARA BAR
Note: If installing in Sahara Bar configuration (with top tube installed) proceed from here
using 5100310 - Sahara Tube Kit, (Buffer Kit 5100220).

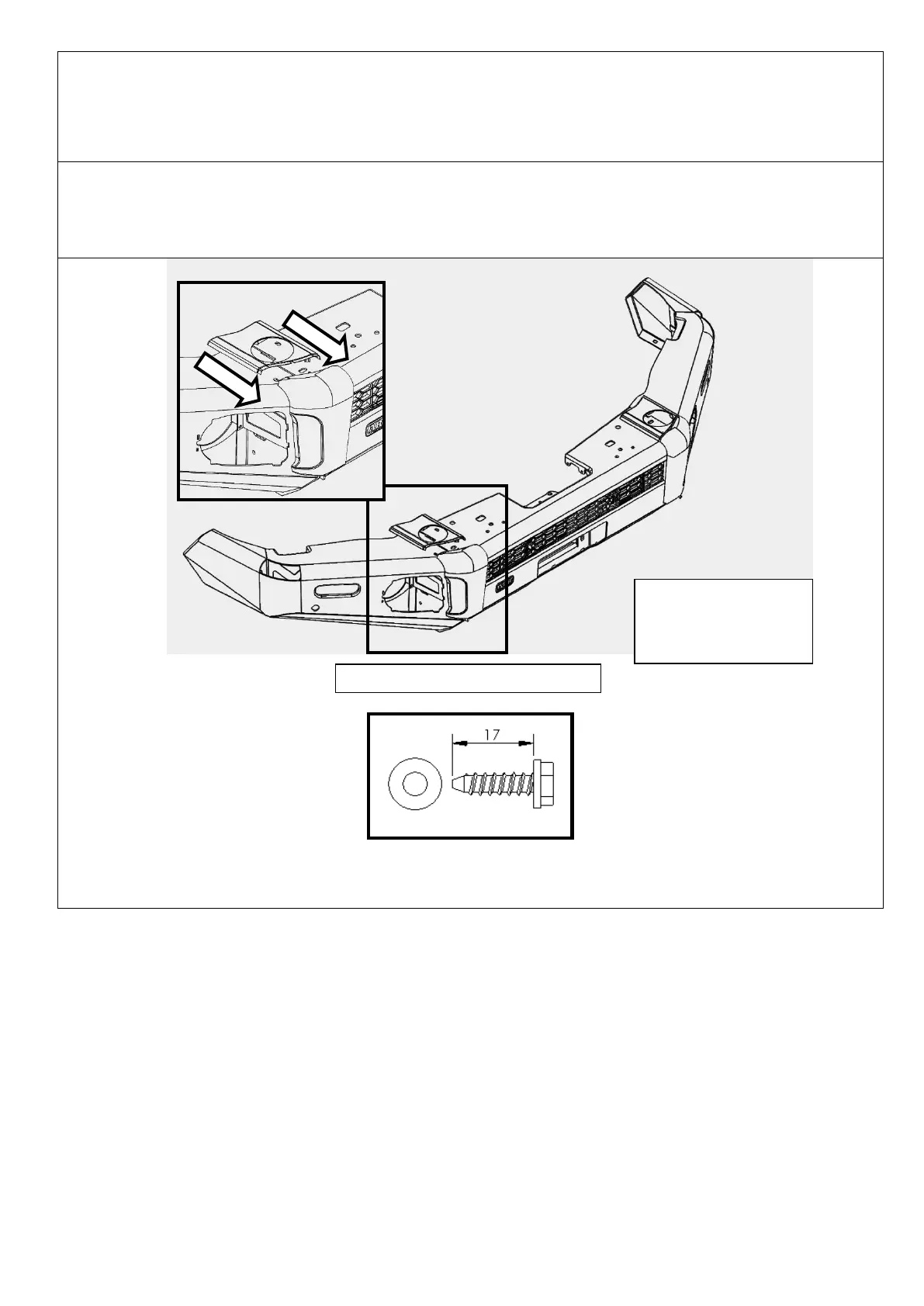

142. From the rear of the bar, slide the rear buffer sections into the front sections as shown. Ensure the
tongue section on both sides of each buffer engages into the slots of the front sections. Fit 4x screws
and washers. Do Not Fully Tighten.
Fit washers under screw heads.
Generic image. Bull
Bar shown may not
be representative of
actual product.
