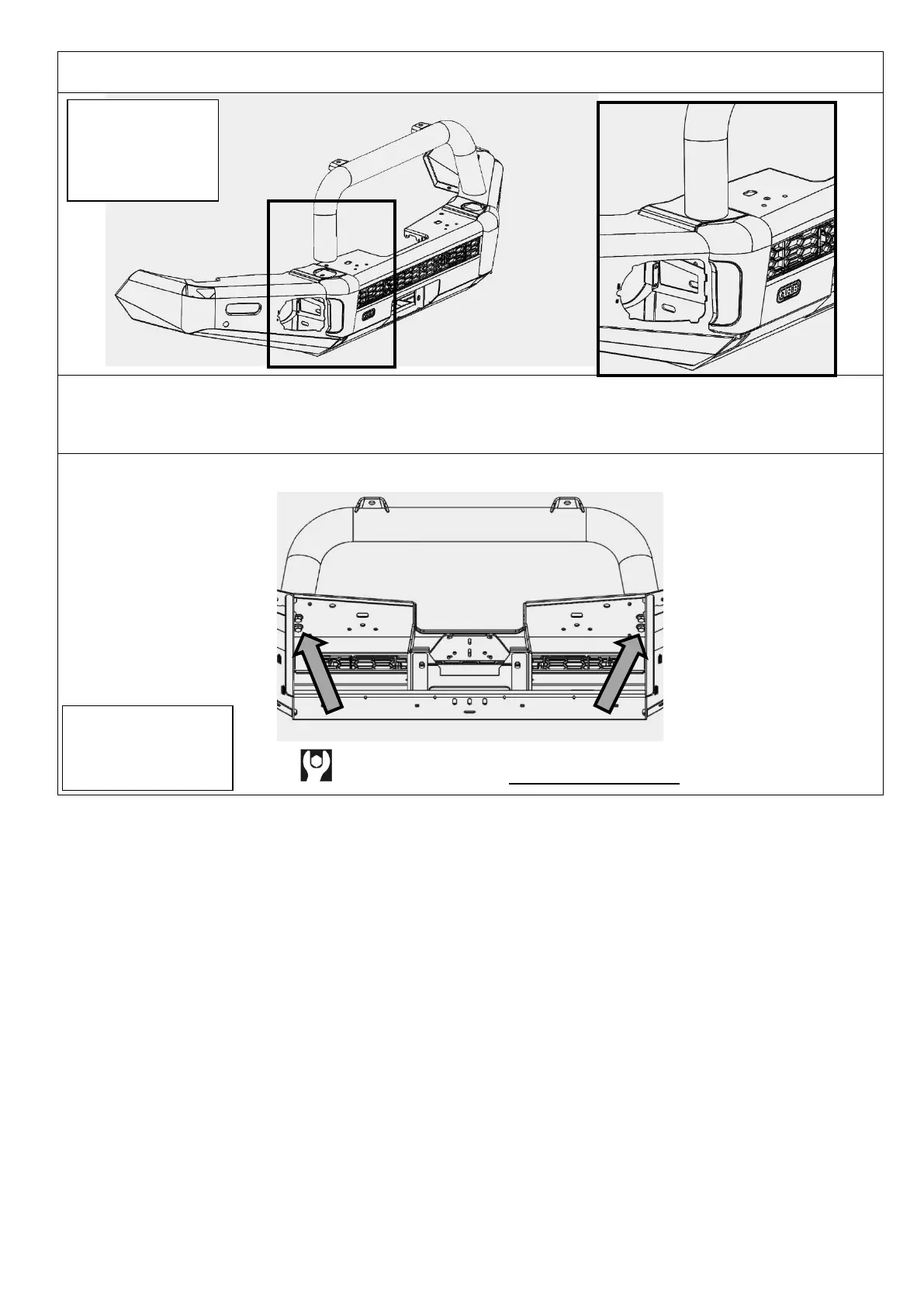

143. Insert Top Frame into the rear buffer holes.
144. Fasten top tube to the bar using 4 x M10 SEMS Bolts. Adjust position of top tube left/right until it sits
central on the bar and the rear buffers are positioned correctly. Tighten M10 SEMS Bolts to
specification. Tighten Rear buffer screws.
M10 SEMS - 22Nm - Do not over tighten
Generic image. Bull
Bar shown may not
be representative
of actual product.
Generic image.
Bull Bar shown
may not be
representative of
actual product.
