146. Fit the small plastic grommets to the bar and
attach the combination LED lamps to the bar
using the screws provided with the lamp kit.
Caution: Cable tie all cables together and keep
all cables clear of sharp edges and moving
parts.
If fitting parking sensors continue from here. If
not, fit plugs provided and proceed to step 162.
NOTE: Painting over sensors is not
recommended as sensor operational faults can
result. ARB recommends purchase of correctly
colour coded sensors from a Ford dealer.
HINT: Mark sensors and loom to ensure
sensors are installed back to the same location.

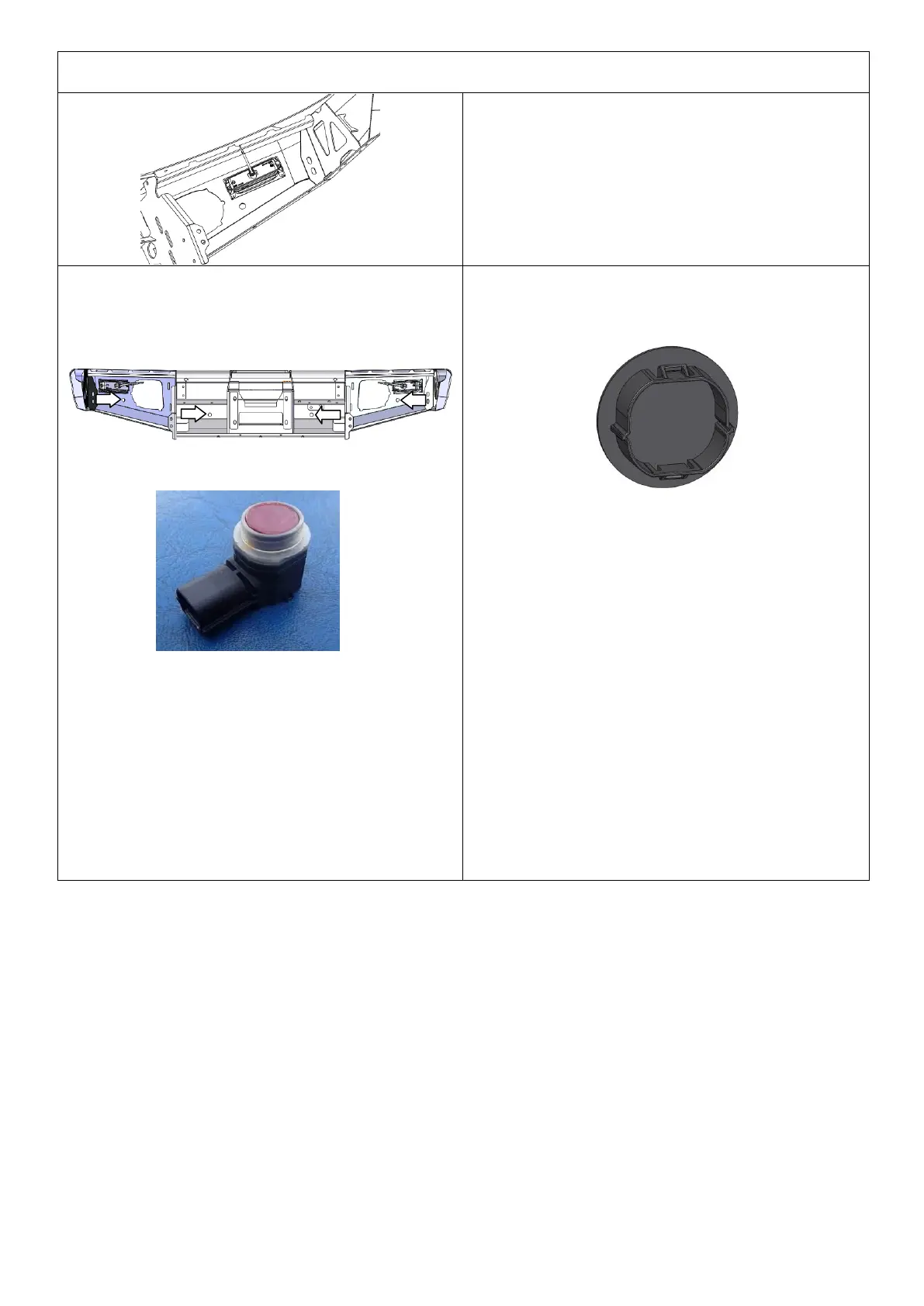

147. Carefully remove the parking sensors from
the loom. Discard all of the Manufacturer’s
clear rubber grommets that fit between the
sensors and the bumper holes.
Note: When fitting parking sensors to the bar it
is important that they are installed in the
correct orientation. The arrows to the left show
the direction the plug end of the sensors
should face.
