5.0 SETTING UP NEXUS/STYLUS

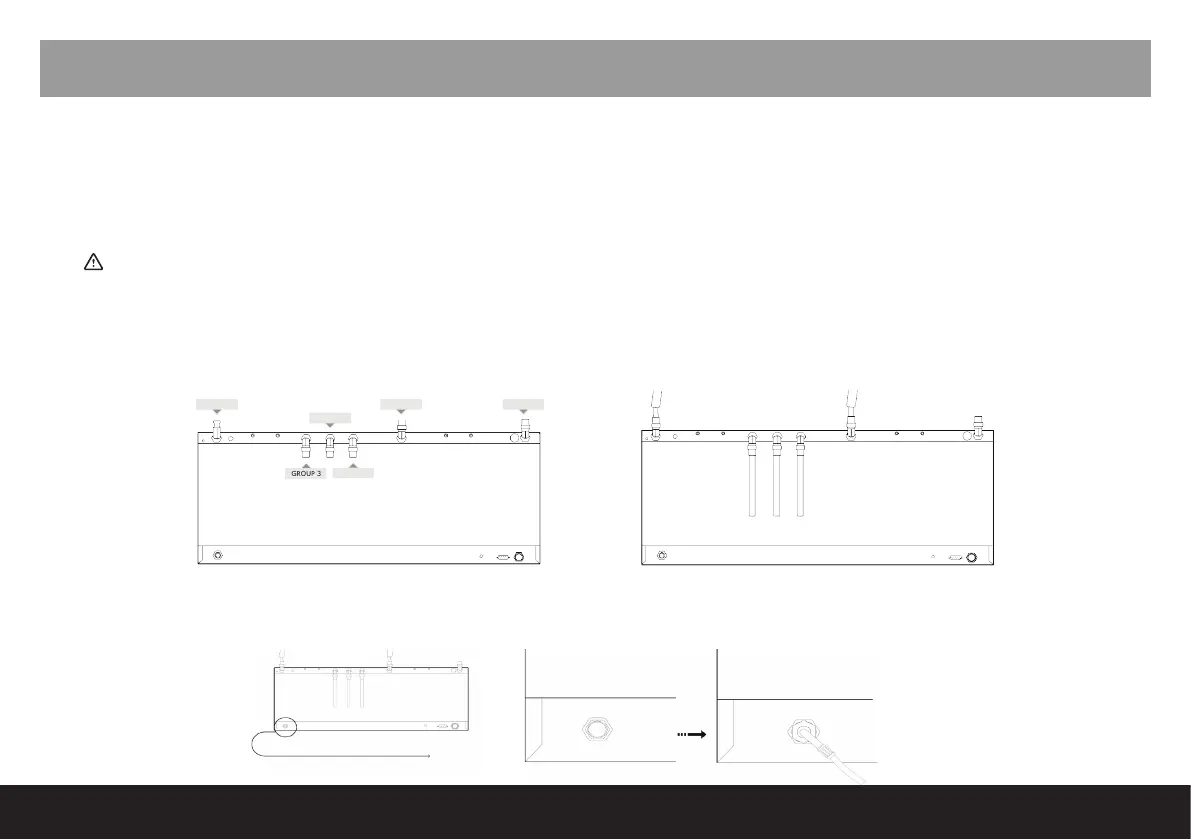

7. Align the UCU-T containing the UCU-H with the underside of the counter.
8. Connect expansion line (silicon pipe clear) to copper tube located on the rear lower section of the
UCU-H. Feed line from the copper tube connection to the buildings waste pipe.
Note: The silicon tube should be xed into position securely to prevent possible leaks from
occuring.
9. Connect steam–IN, group 1, 2, and 3, hot water, steam-OUT hydraulic Teon lines from CTU to UCU-H
using corresponding labels on tubes.
10. Connect water supply line from PUMP-UCU-P to UCU-H through the 3/8 BSP connection tting
located on rear of UCU-H (remove transit blanking plug to access).
GROUP 1
