5.0 SETTING UP NEXUS/STYLUS

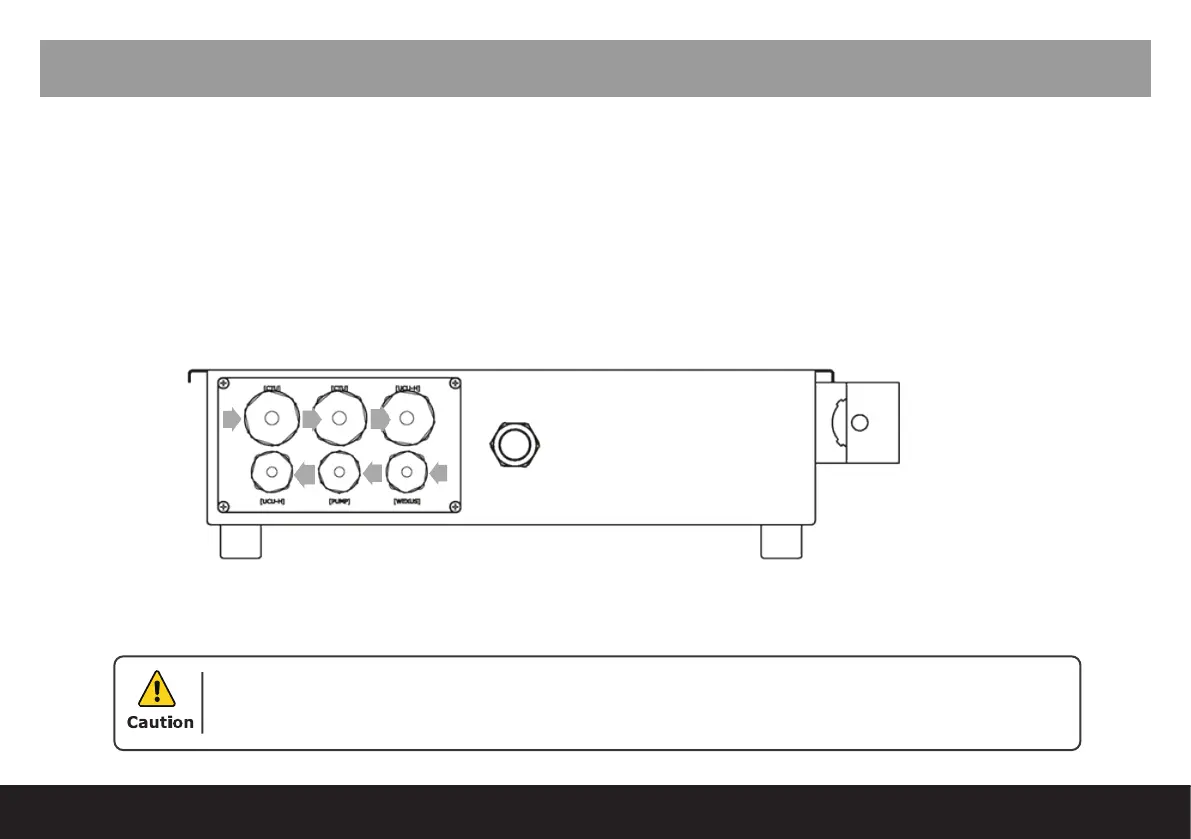

14. Connect (refer to label on unit):

1. 32P from CTU into position 1 on UCUE

2. 23P from CTU into position 2 on UCUE

3. 23P from UCUH into position 3 on UCUE

4. 14P from UCUH into position 4 UCUE

5. 4P from PUMP into position 5 UCUE

6. 14P from CTU into position 6 UCUE (Wexus)

Attention: check manufacture guide to connect the bonnet plugs, do not

force, line up the key way before turning the bonnet locking nut. Ensure the

plug is in tight to form a water tight connection.

Forcing the plug into the incorrect position will cause damage to the internal pins.
