8. Operation of the I-ACT (PMR), Current output
8.1 Automatic and hand mode
8.1.1 Operation modes
The controller works in three operation modes:
• Automatic: Control mode with surveillance
• Hand mode: Manual left- and right-run of the actuator
• Setup mode: Parameterization of the controller.
8.1.2 Change operation mode

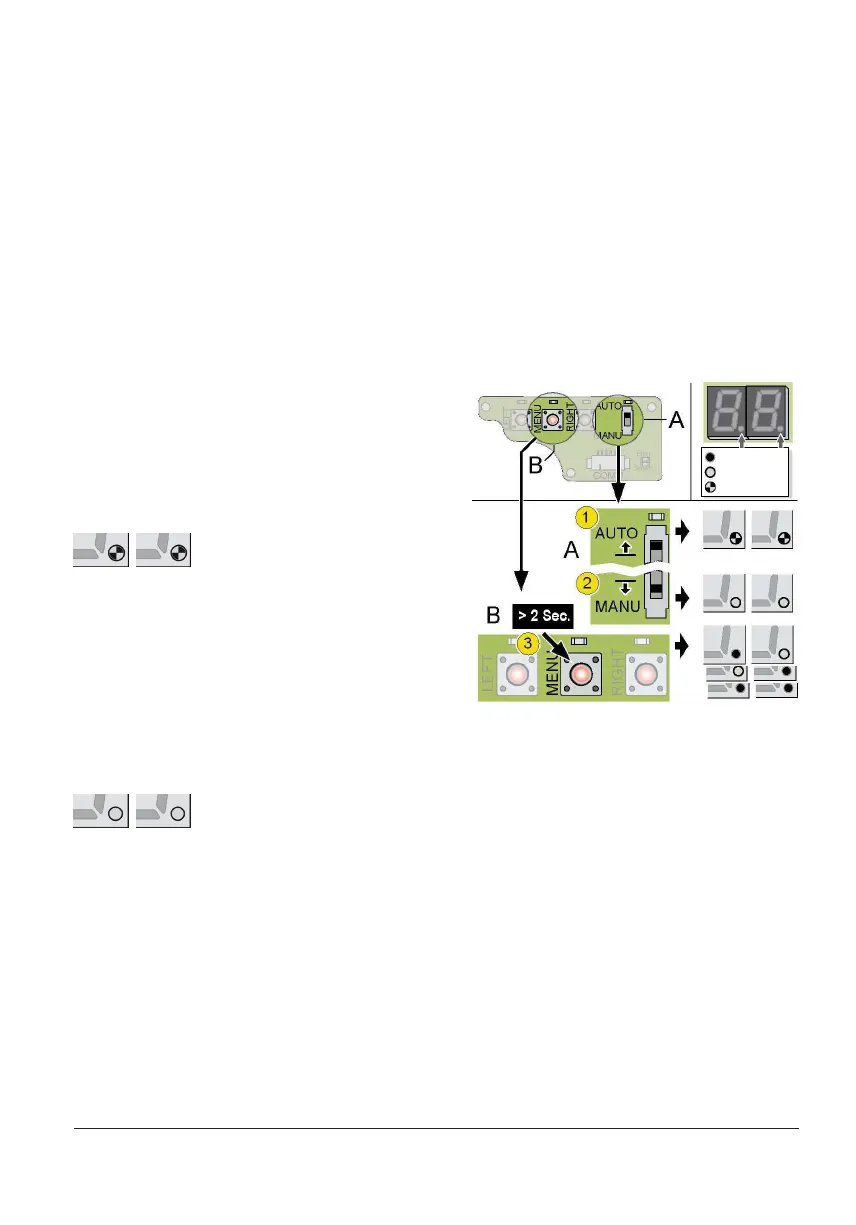

Change the operating modes by using switch (A) and button (B). The
two 7-segment elds show the current operating mode through the
decimal points.
8.1.3 Automatic mode
Slide switch to AUTO (1).
Both points will ash alternately at 1 Hz; additionally the LED above
the switch lights. The control is active.
The actuator is driven via signals from the set value input. The control
monitors the approach of end positions and changes of input signals.
The buttons (3) have no function.
8.1.4 Hand mode
Slide switch to MANU (2).
Both points and the LED above the switch are off. The control is active and waiting for input via push button. The actuator is operated
via the two buttons [R] and [L]. The motor controller is active and switches off the motor upon reaching an end position.
• Hold button [R] to rotate the actuator right. The two segments show a circumferential clockwise dash order as long as the
actuator rotates.
• Hold button [L] to rotate the motor left. The LED above the pressed button lights. Both segments show a circumferential
counterclockwise dash order as long as the actuator rotates. Upon reaching an end position, the LED on the operated key will
blink twice.
on
off
blinking
