ARIS Tensor Zone 2/22 User Manual

18 Tensor

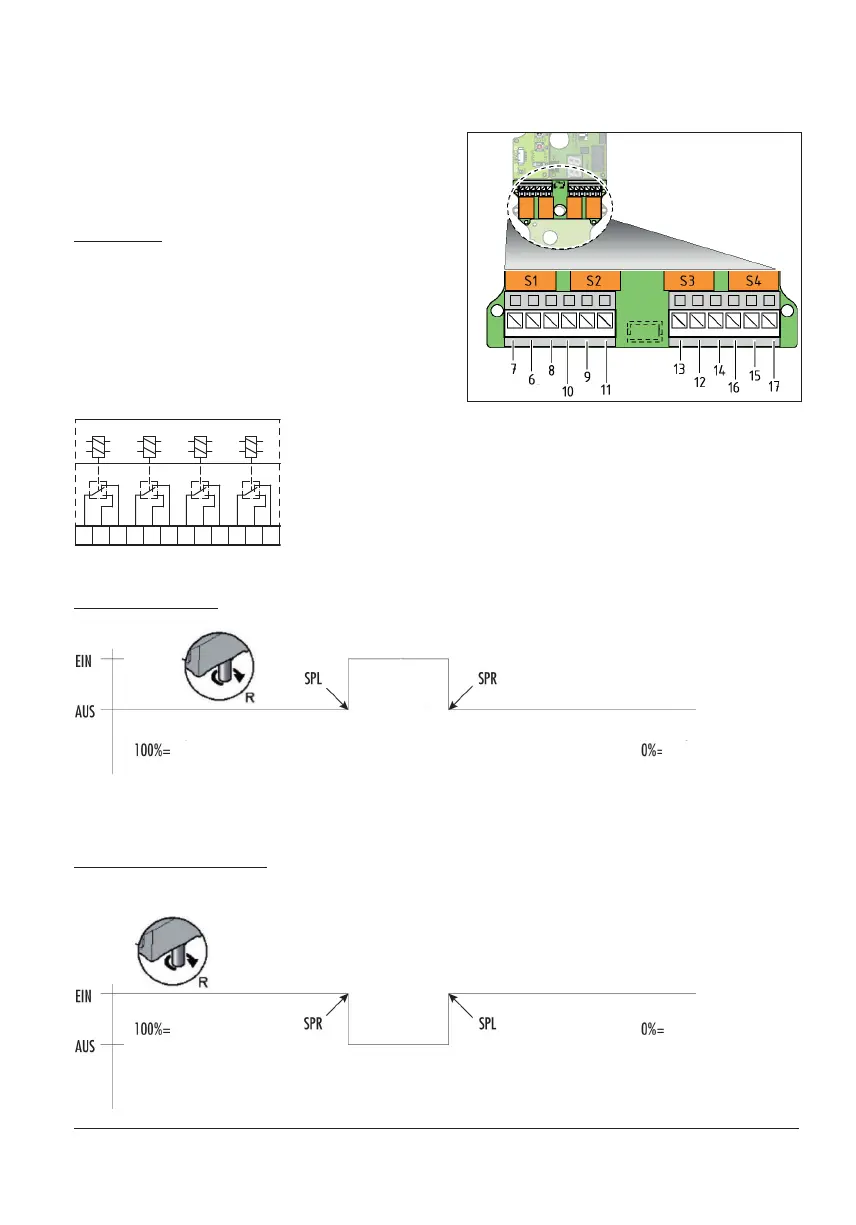

6.3 Additional auxiliary switches S1-S4
(add-on board)
The additional board ZW provides outputs for up to four additional
bistable relays with preservation of the switching status in the deener-
gized condition, to be freely programmed.
Switching points
It can be de ned for each relay a left and right switching point.
While moving from LEFT to RIGHT applies to the transitions:
- SPL left switching point changes from OFF to ON
- SPR right switching point changes from ON to OFF
Example switching pattern
By de ning and positioning of these two switching points different shift pattern can be freely de ned.
Example switching pattern inverted
6 7
8
9 10
11
12 13
14
15 16
17
LN
2
3
M
85...265 V (AC)
18 19
20
Option
Option
S2S1 S3 S4
Poti
left end position
left end position
right end position
right end position
OPEN
OPEN
CLOSED
CLOSED
