9. Operation of the actuator with current output

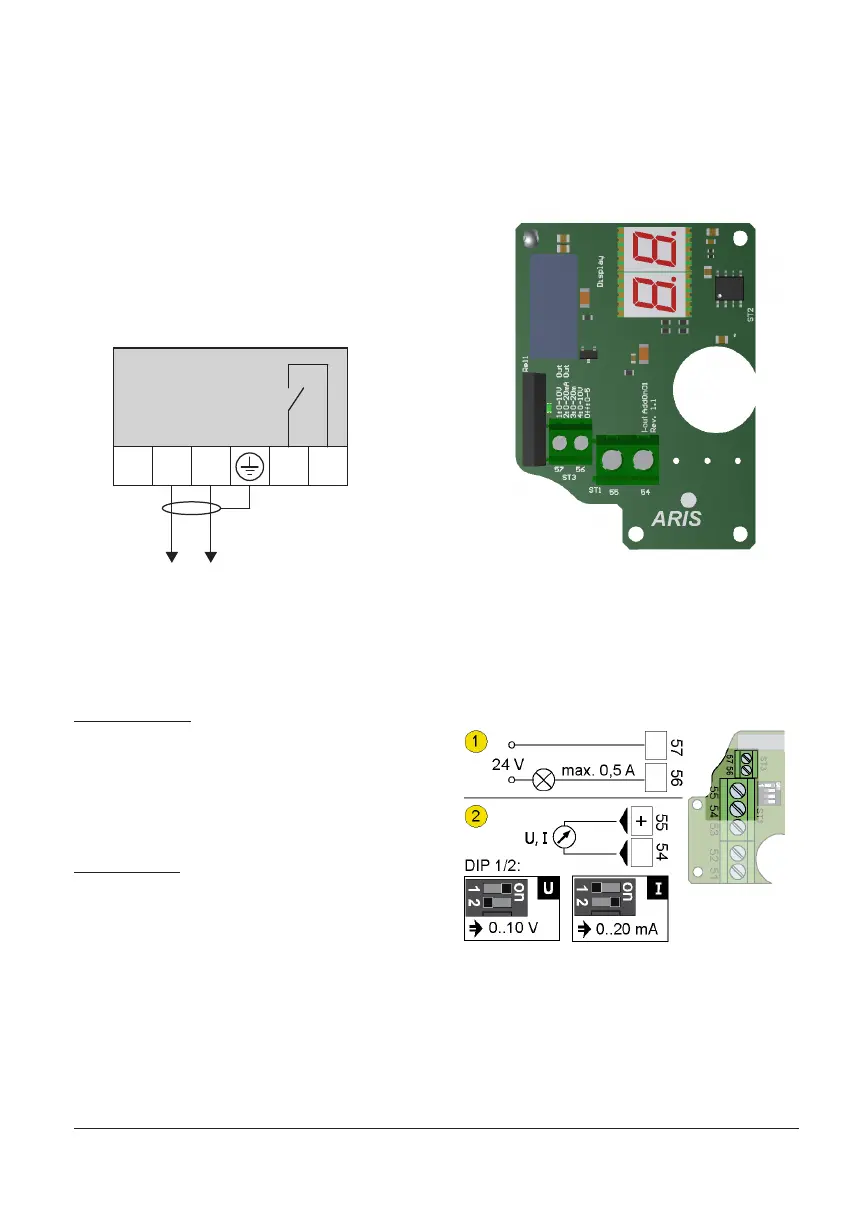

9.1 Circuit diagram and pin assignment
57/56 Message output, potential free opener, max. 200 V,
max. 0,5 A, max. 10 W
55 Actual value output, +
54 Actual value output, ground
Fault message output
The message output (1) Pin 56 / 57 works as potential free
operated opener. The capacity of the contact is
max. 200 V-supply
max. 0.5 A
max. 10 W
Actual value output
The output (2) at Pin 54/55 provides a voltage or a current
according to the DIP-button position.
The output is separated galvanically from the other supplies.
55 54 56 57
Störmelde-
ausgang
(potentialfrei)
0-20 mA (DC)
optional 0–10 V (DC)
+
–
Fault message
output
(potential free)
