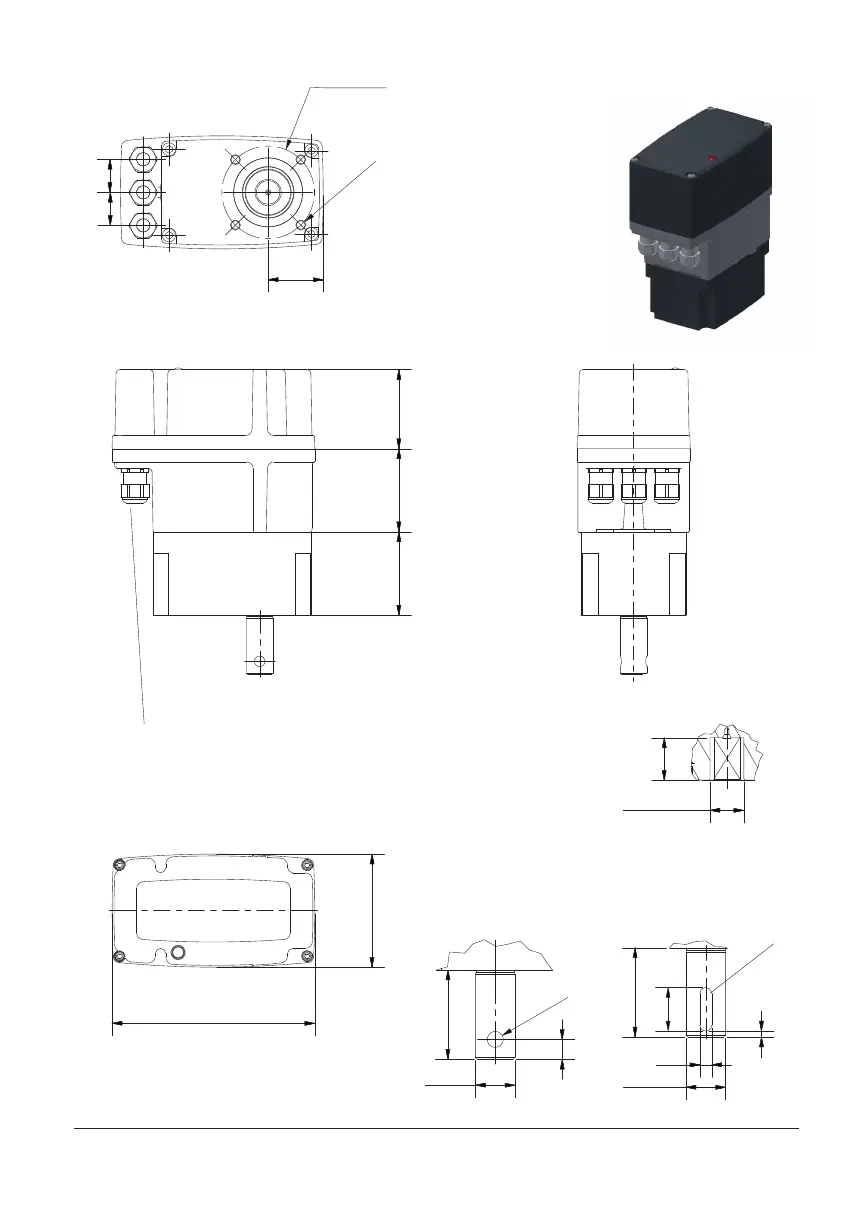

ARIS Tensor Zone 2/22 User Manual

8 Tensor
Kabelveschraubungen optional
(Standard=Blindstopfen)
45
6
3
22
ø 20
t=3,5
Welle rund mit
Passfedernut
(Option)
Welle rund mit
Querbohrung
(Standard)
21,6
4kt SW17
Innenvierkant
(Option)
63
60
63
86
153
ø
8
45
20ø
10
25
25
M8
x
12
F07 ø70
42
*Option metal cover (Tensor+) = 70 mm
*
Tensor L
Option metal lid
inner 4-square
cable gland optional
(standard=blind plug)
round shaft with
cross hole
(standard)
round shaft with
feather key
(option)
