001-31249-EN rev. 3
Product Description 7

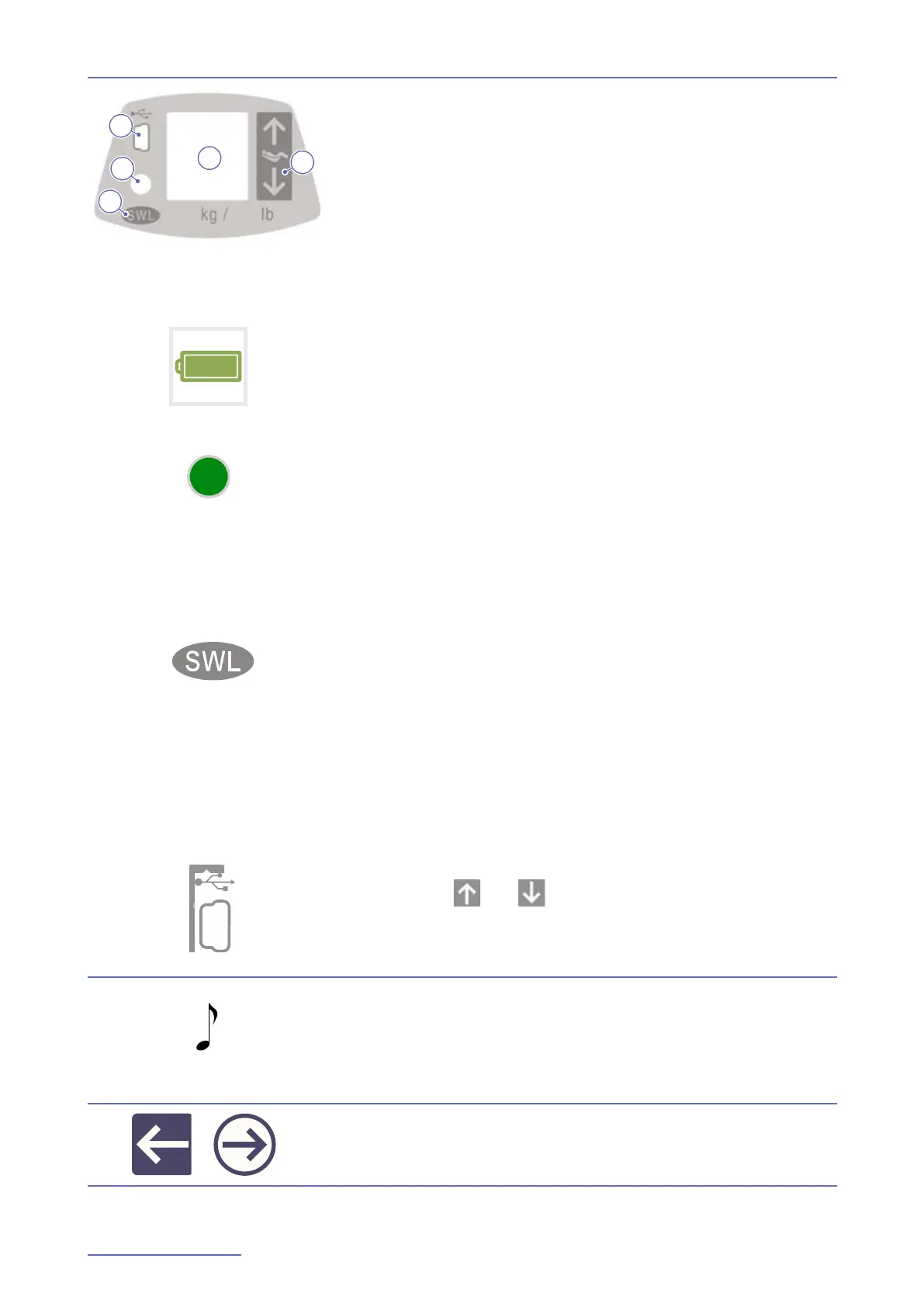

Control Panel
The control panel regroups several elements intended to
provide important information to the user.
1) Display
2) Status LEDs
3) SWL Rating
4) The USB access port
5) Auxiliary Up-Down buttons
1. Display
• This is the message centre that informs the user of the
different statuses of the ceiling lift by means of
intuitive icons (see "LCD Display Symbols" on page
8 for details).
2. Status LED
• A solid green LED indicates that the ceiling lift is ready
for use.
• A ashing green LED indicated that charging is in
progress.
• A red LED is meant to draw the user's attention to a
message being displayed on the control panel screen.
3. SWL Rating
• This label indicates the maximum lifting capacity of the
ceiling lift.
4. USB Access Port
• The USB port is intended for service technicians only.
It allows access to certain functions such as query
history data.
5. Auxiliary Up-Down Button
• The and buttons are used to complete a
transfer if a problem occurs with the hand control
during the operation.
Audible Indicator
• The control panel is also equipped with a component
that provides a beeping sound to acknowledge
commands or to draw the user's attention to a
message being displayed on the control panel screen.
Left/Right Labels
• These symbols refer to the hand control's lateral
displacement buttons. Not applicable on this product.
1
2
3
4
5
272 600
