001-31249-EN rev. 3
Operating the Maxi Sky 2 Plus in Dual Mode 29

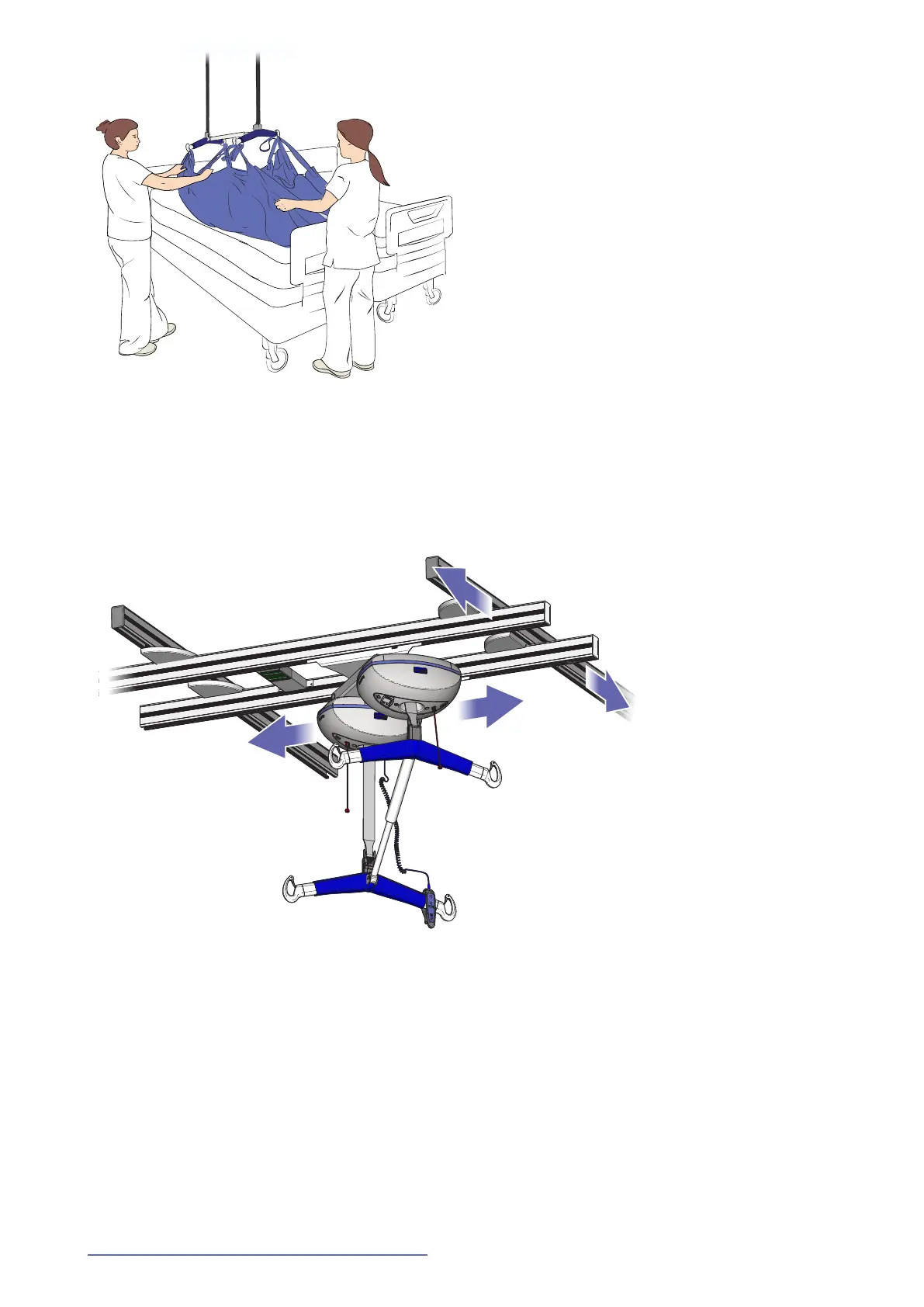

Fig. 56
4) Lower the patient onto the bed.
5) Lower the spreader bar farther down to be able
to detach the sling loops.
Raise the spreader bar and move the ceiling lift
away from the patient.
How to Use the X-Y Track System
X
X
Y
Y
Fig. 57
The X-Y track system
allows the ceiling lift to be
moved in any direction over
a predetermined area in
order to cover its entire
surface.
The X-Y system is
composed of two
stationary tracks and two
mobile tracks linked
together. Both the Maxi Sky
2 Plus and the linked
mobile tracks can be
moved simultaneously by
pulling on the spreader bar.
