LCD Display Symbols

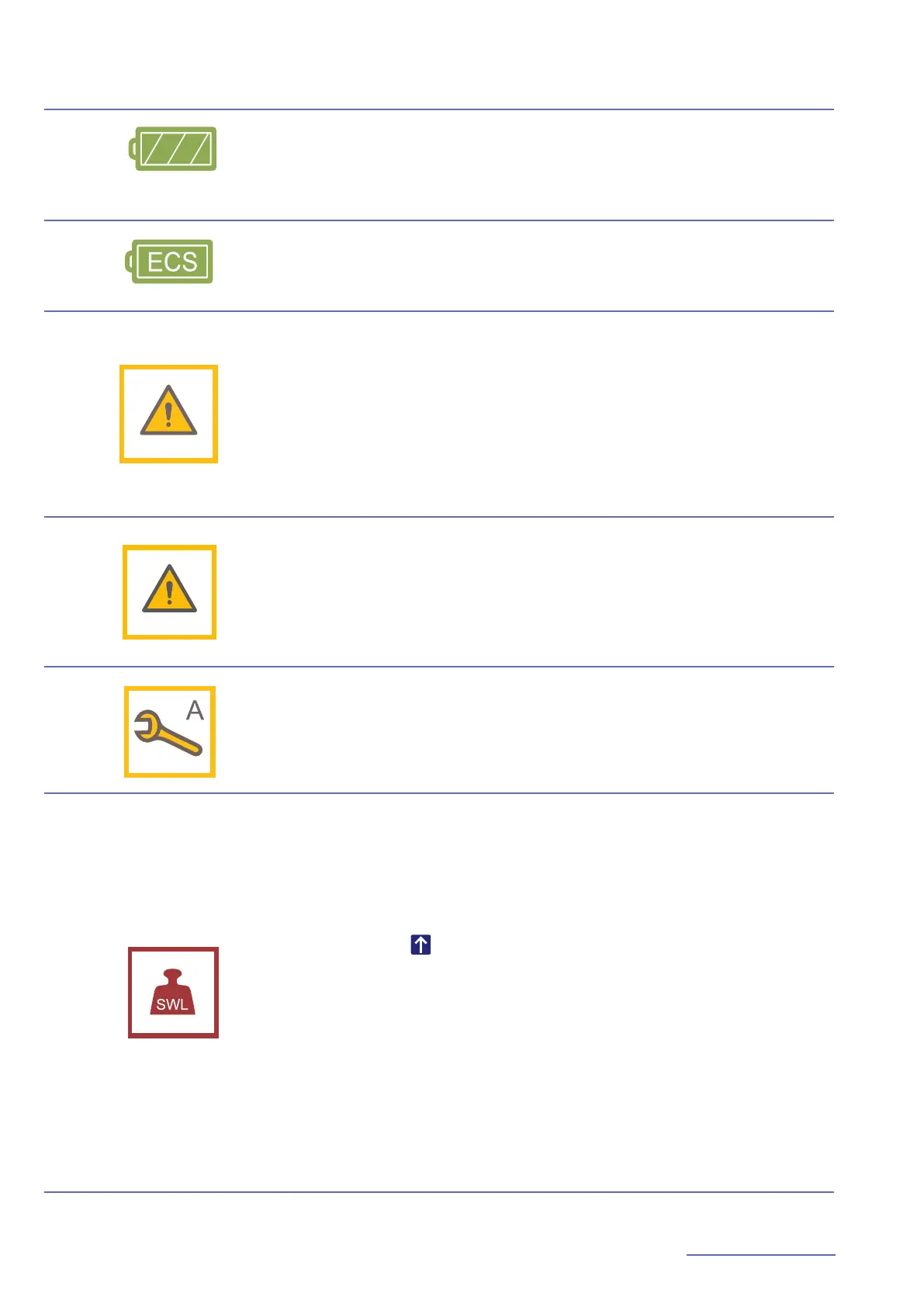

The following is a description of all the symbols that may be presented on the display:
Battery Charge Level
• Several symbols will show a battery at various charge
levels. These symbols indicate the status regarding the
batteries and/or the regular charging system (see "Battery
Information" on page 13 for details).
ECS Indicator
• On units equipped with ECS option, this symbol shows up
when the batteries are charging.
Over Duty Cycle
• This symbol ashes when the ceiling lift is used for a long
period without allowing it to cool down. This security feature
disables the functions (
up, sit/recline) that are being used
beyond the recommended duty cycle to prevent damage.
• When the overheating protection is engaged, the function
that exceeded the duty cycle is disabled while all other
functions remain active.
• The red light will stay on during a cooling period. In
addition, a single beep will be heard.
08
General Malfunction (Warning symbol accompanied with a
numeric character.)
• This symbol ashes when the ceiling lift encounters a
malfunction.
• The ceiling lift needs to be inspected/repaired by a qualied
service technician.
• The red light will stay on and a single beep will be heard.
Maintenance Required (Wrench symbol accompanied with a letter
character.)
• This symbol displays for 7 seconds (accompanied with 2
beeps) when the ceiling lift is waking up from sleep mode
and ashes every 5 seconds to draw user's attention.
• Contact your Arjo service centre for maintenance.
Overweight
While ascending:
• This symbol ashes when a transfer is attempted with a
load exceeding one or both of the ceiling lifts' capacity.
• The red light will stay on (accompanied with 4 rapid beeps)
until the patient is lowered.
• The function is disabled while all other functions remain
active.
While using the patient tilt function (sitting/reclining):
• This symbol ashes when the software detects that a
weight shift caused by the tilting of a patient is overloading
one of the ceiling lifts beyond its lifting capacty.
• The red light will stay on (accompanied with 4 rapid beeps)
until the opposite function is enabled.
• The function (sit or recline) that triggered the overweight
symbol will be disabled until the patient is readjusted back
toward their previous position.
