Installation
31

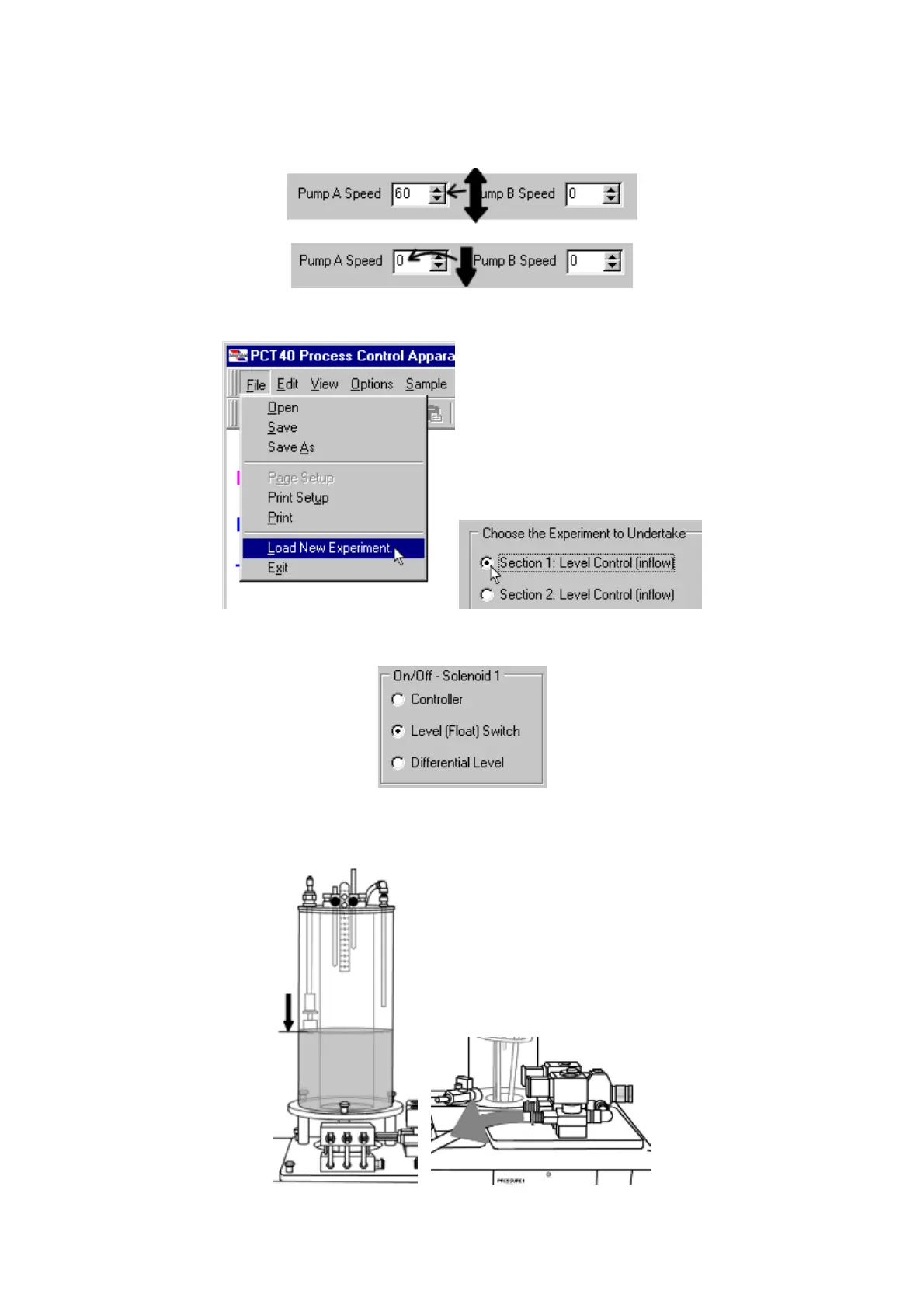

34. Vary the pump speed using the arrow keys to check that the pump is
controlling correctly, then set the pump speed back to 0%.
35. Select ‘Load New Experiment...’ from the ‘File’ menu, and load Exercise 1.
36. Set the software to control the valve SOL 1 using the Level (Float) Switch.
SOL1 should open when the water level in the tank drops so that the float
reaches its lowest position...
