HyPer Optic

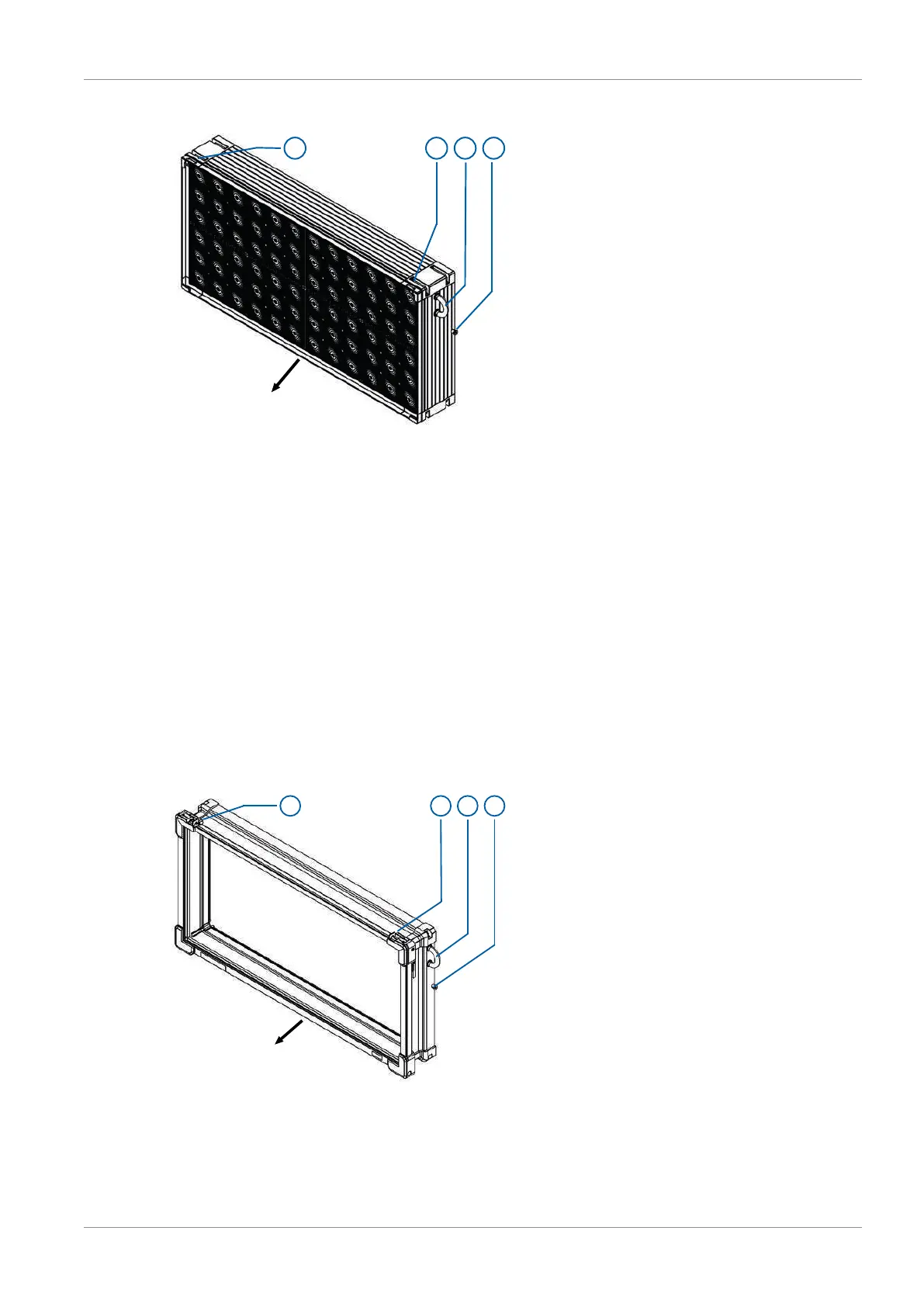

Illustration8: HyPer Optic
1 Safety rope attachment (2x)
2 Locking pin (2x)
3 Top Latches
Use of beam shaping accessories with the HyPer Optic
You can attach a Beam Enhancer or a SkyPanel S60-C diffusion or the intensifier panel in front of
the HyPer Optic:
Pan and Tilt is blocked to avoid unintended movement of the device. The device is isolated from the
power source. The HyPer Optic is attached properly to the device.
1) See illustration 8: Un-lock both top latches (3) by sliding both levers completely outwards.
2) Place the accessory behind the latches at the bottom of the Hyper optic. Tilt the top of the
accessory to the Hyper Optic.
3) Lock both top latches (3) by sliding both levers completely inwards.
4) Check the proper seat of the accessory.
ð Connect the device to the power source.
To detach the accessory, follow the steps in reverse order.
S60 Adapter
Illustration9: S60 Adapter
1 Safety rope attachment (2x)
2 Locking pin (2x)
3 Top latches
Use of Accessories for Beam Shaping with the S60 Adapter
You can attach accessories like snoots, honey combs or egg crates by using the guiding rails on the
front side of the S60 Adapter:
