6-14 CHP Max™ Headend Optics Platform Chassis, Controllers and Power Supplies 1508685 Rev D
7. Connect the USB-to-serial adapter cable to the PC’s USB port connector and the
CMM-1/SMM-1 serial port connector.
8. From the PC, select Start >Control Panel > Device Manager.
9. The Device Manager window indicates that the USB-to-serial adapter cable is
connected to a random high number COM port (for example, COM11 in Figure 6.7).

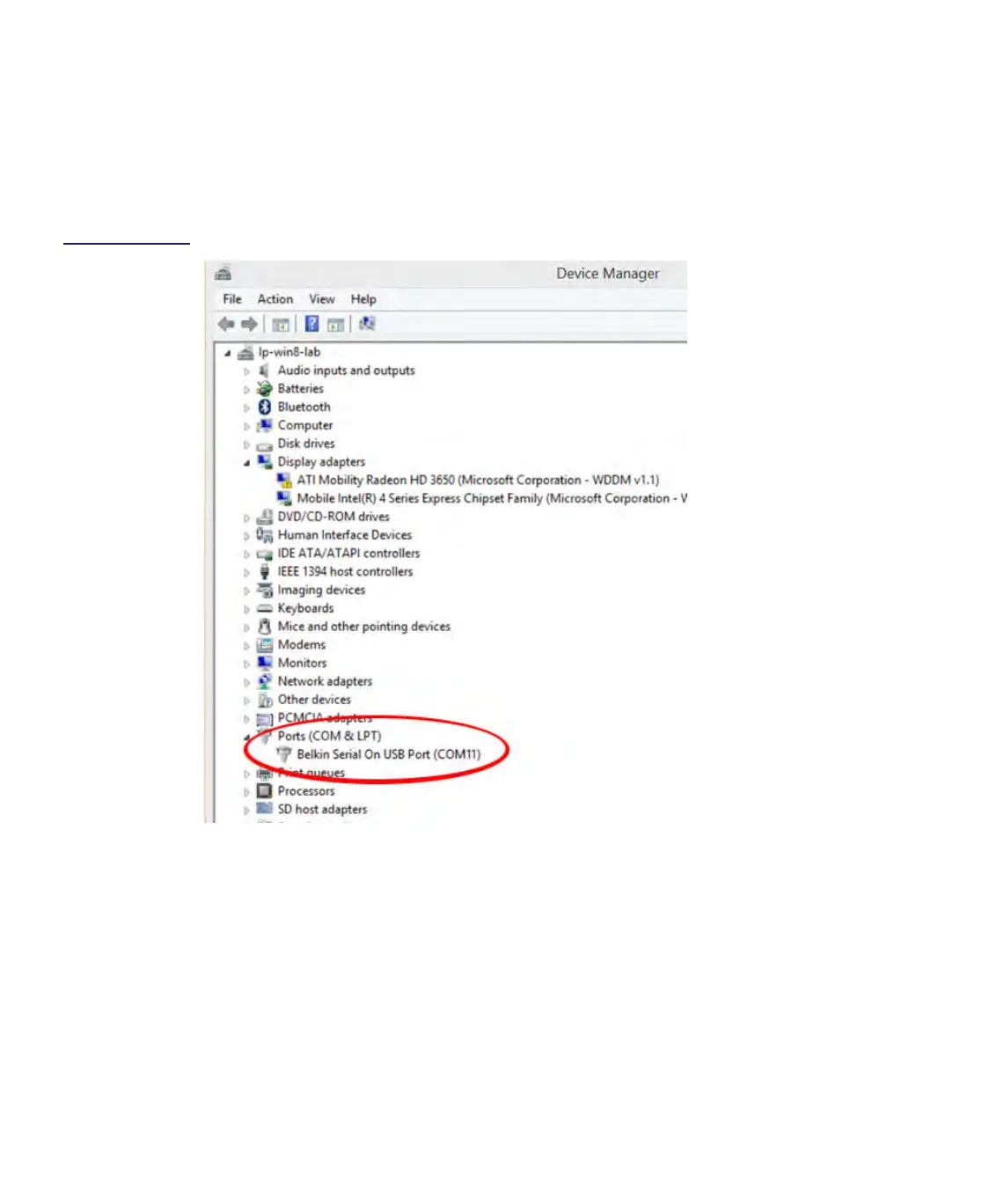

Figure 6.7
Device Manager
Window
10. Double-click on the line item for the USB-to-serial adapter cable in Device Manager
window [for example, Belkin Serial On USB Port (COM11)].
11. When the USB-to-serial adapter cable Properties window appears, select the Port
Settings tab, then click on the Advanced button.
12. When the Advanced Settings window appears, select COM1 from pull-down menu
(see Figure 6.8).
