Overview
IPC1100 Advanced IP Client Video Set-top • Installation and Operations Manual
11
365-095-24769 x.1 10/13
MoCA
MoCA technology bridges Ethernet traffic onto the coaxial cable network. MoCA 2.0 operates from 975
to 1025 MHz on the MoCA WAN channel when a MoCA 1.1 BHR is present and 1125 to 1175 MHz on the
MoCA LAN when communicating with MoCA 1.x devices; and 1125 to 1225 MHz on the MoCA LAN
when communicating with any MoCA 2.0 devices. MoCA 2.0 operates from 1350 to 1675 MHz on the
MoCA WAN channel when a MoCA 2.0 BHR is present.

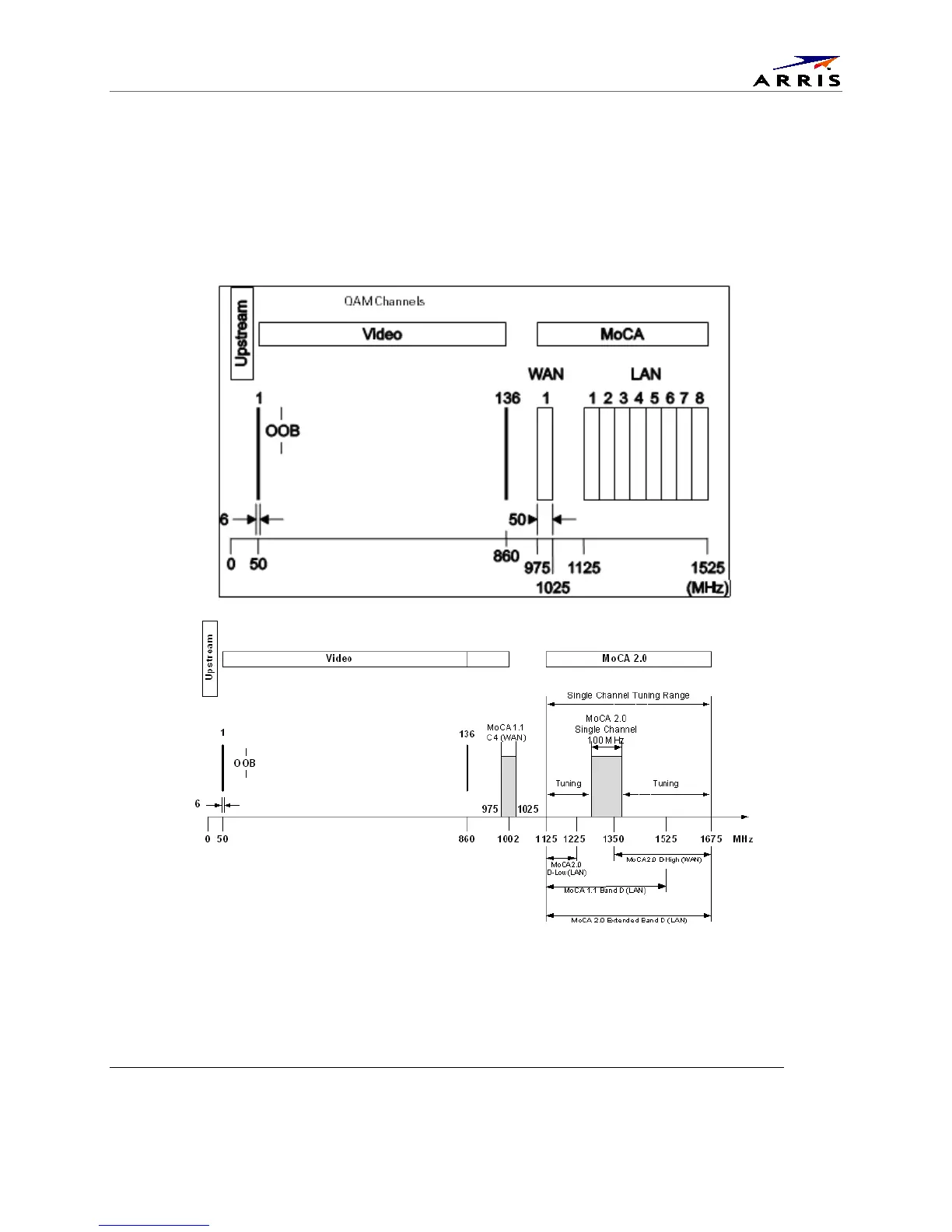

Figure 6 – MoCA RF spectrum
Each MoCA set-top requires an IP address for configuration and management, but does not require any
other IP services. To minimize network IP address requirements, the MoCA uses the Link-Local IP
address space.
