Arris IPC1100 - Cabling to a High-Definition TV and an A;V Receiver for Video; Figure 13 - Cabling to an HDTV and A;V Receiver for Video

Installation
IPC1100 Advanced IP Client Video Set-top • Installation and Operations Manual
20
365-095-24769 x.1 10/13
Cabling to a High-Definition TV and an A/V Receiver for Video

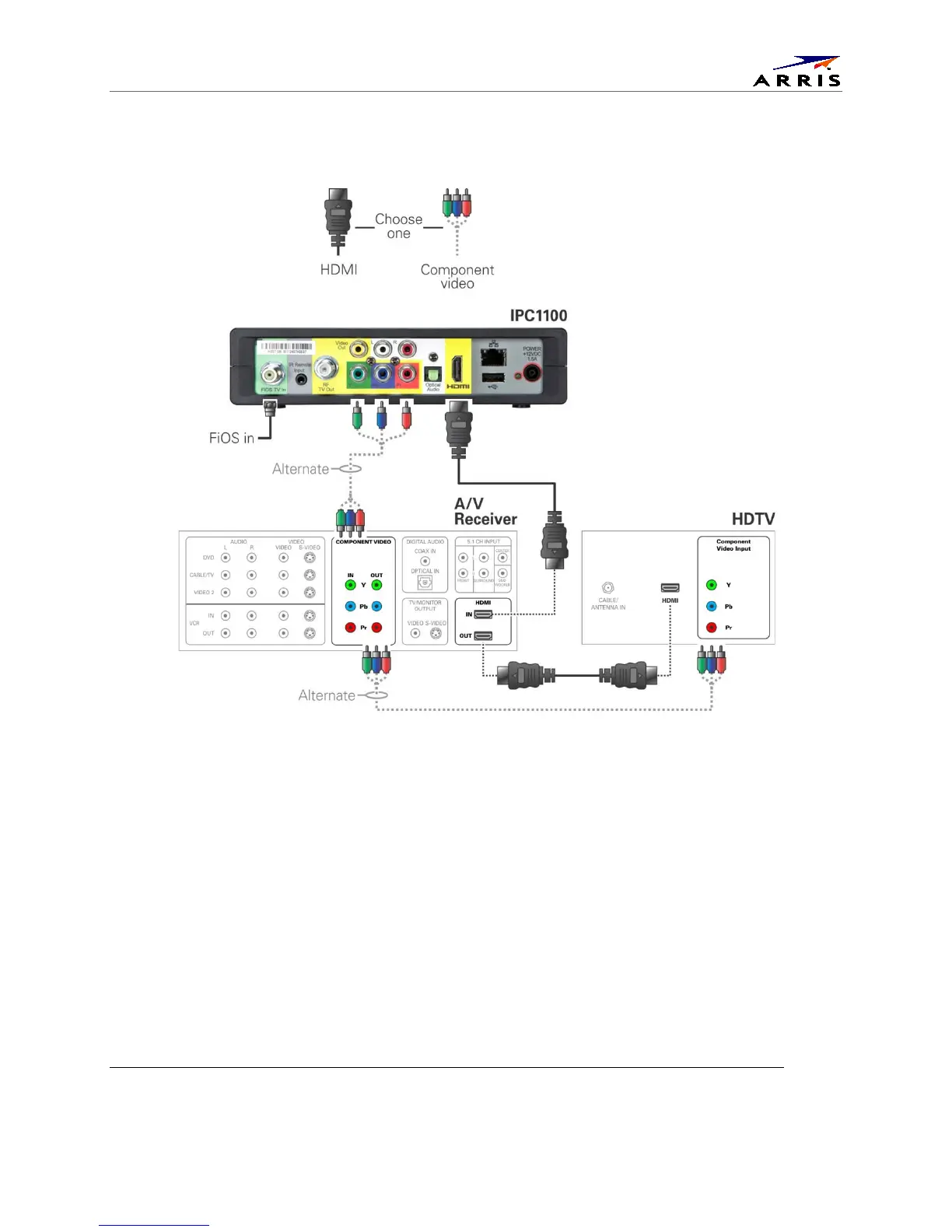

Figure 13 – Cabling to an HDTV and A/V Receiver for Video
Note: If the A/V receiver includes an HDMI input & output, the IPC1100 HDMI output can be connected
directly to the A/V receiver. Because HDMI provides both video and audio output, no additional audio
connections to the A/V Receiver and TV are required.
