Diagnostics
IPC1100 Advanced IP Client Video Set-top • Installation and Operations Manual
365-095-24769 x.1 10/13
17 Keypad Status

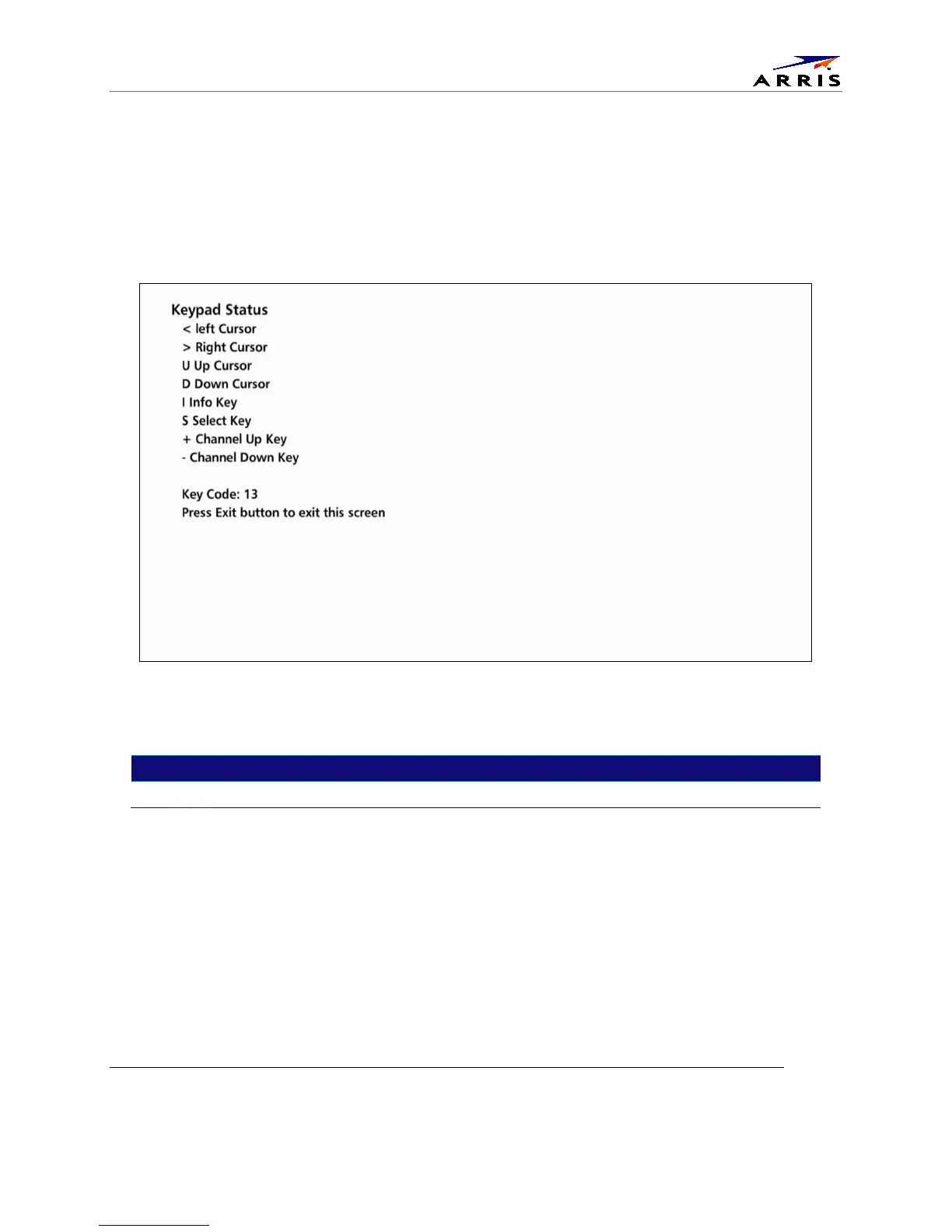

The front panel key presses should also highlight the corresponding character and a front panel
indication. Also, a segment on the front panel 7-segment display should illuminate with each press of a
front panel key.
This diagnostic verifies the functionality of the front panel indicators and the front-panel keypad. Each
highlighted character corresponds with a front-panel key press.
Key Code Indicates the keycode of Front Panel Key or associated IR Keypress.
