Installation
IPC1100 Advanced IP Client Video Set-top • Installation and Operations Manual
365-095-24769 x.1 10/13
Cabling to an HDTV for Video
For the best possible HDTV video quality:
1. If the TV has an HDMI input, connect it to the IPC1100 HDMI output. If the TV has a DVI input, you
can connect it to the IPC1100 HDMI output using an HDMI-to-DVI converter cable or adapter.
ο L/R audio connection or digital audio S/PDIF connection is required for sound with a DVI
connection.
10. Otherwise, use the component video (Y, Pb, and Pr) connectors.
ο L/R audio connection or digital audio S/PDIF connection is required for sound with component
video.
Note: Be sure to match up each signal to the same connection on the TV. Otherwise, the colors will not appear
correctly on your TV.

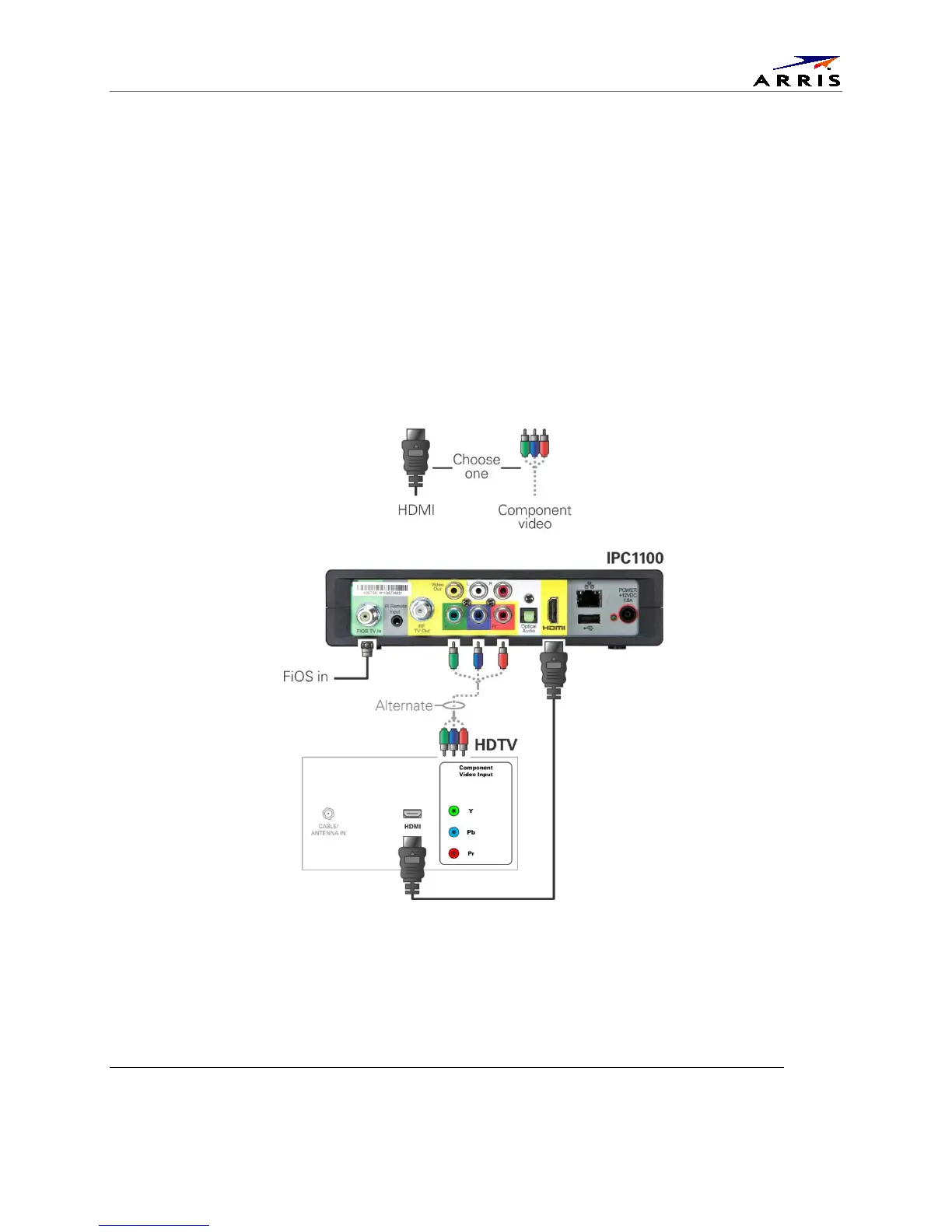

Figure 11 – Cabling to an HDTV
Note: Because HDMI provides both video and audio output, no additional audio connections to the TV are
required.
