Installation
IPC1100 Advanced IP Client Video Set-top • Installation and Operations Manual
365-095-24769 x.1 10/13
Be sure you install the media hub before connecting any other set-tops.
• From the labels on the bottom of each device, record the STB MAC address and serial number of
each set-top.

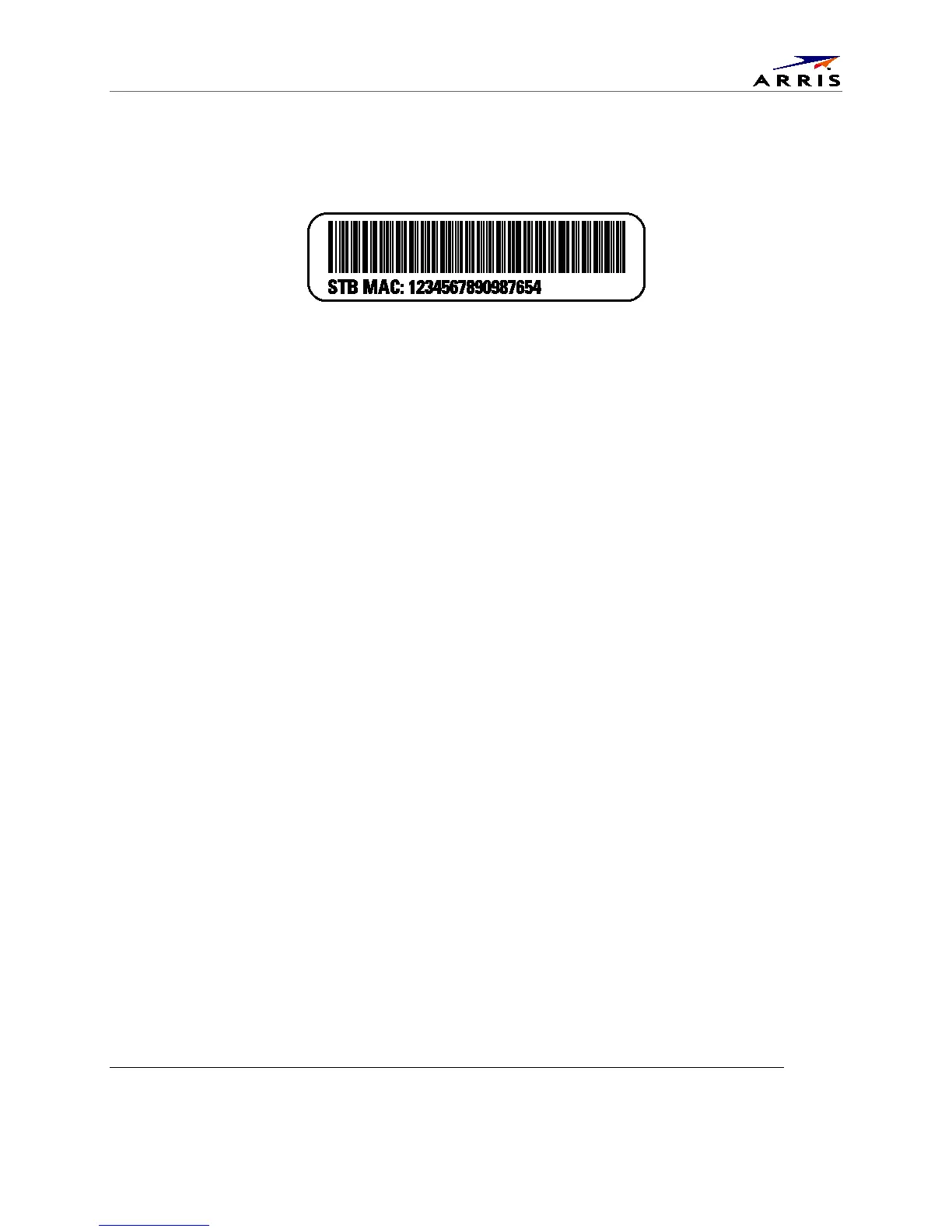

Figure 10 – IPC1100 Set-Top MAC Addresses
During the installation:
1. Connect the home router.
2. Connect the VMS via the home coaxial network.
3. Connect the IP Client via the home coaxial network.
4. Connect the A/V connections for each set-top to the home theater equipment.
After you finish connecting the components:
1. Perform the Operational Check for the Remote Control. Be sure regular and VoD channels display.
2. Optimize the high-definition settings.
Checking the Home Coaxial Network Topology
This section assumes you are networking two or more IPC set-tops. Before you install the ARRIS Whole
Home IP Video Network hardware:
1. Create a table listing:
ο Every room where you plan to install a set-top
ο The signal levels you measured at the RF cable outlets
ο The HFC MAC Address on the label beneath the set-top used in that room
Optionally, you can include information such as the set-top type, serial numbers, and anything else you
or the service provider considers useful.
