Arris Touchstone DG3450 - Indicator Lights for the DG3450; Online LED

DRAFT
Chapter 6: Using the Data Gateway
Release 34 DRAFT 1.6 June 2017 Touchstone DG3450 Data Gateway User Guide
© 2017 ARRIS Enterprises LLC. All Rights Reserved. 29

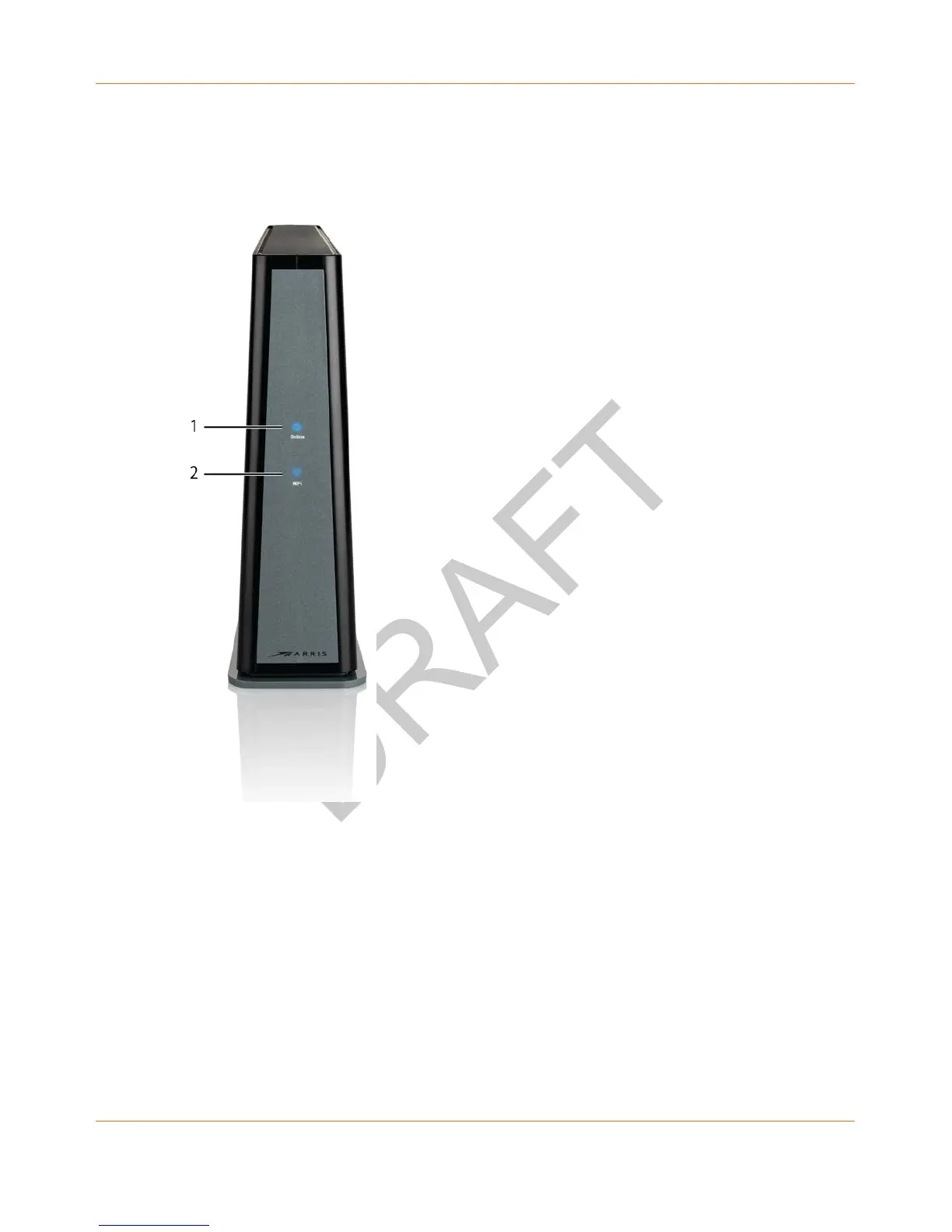

Indicator Lights for the DG3450
The Data Gateway has LED indicator lights to assist in troubleshooting.
1. Online
2. Wi-Fi
Online LED
The following table shows light patterns for the Online LED during normal operation.
