DISPLAY RECEIVED MIDI shows six MIDI characters in
hexadecimal format. The external MIDI adapter cables are
required to use this mode. The TOGGLE key is used to freeze the

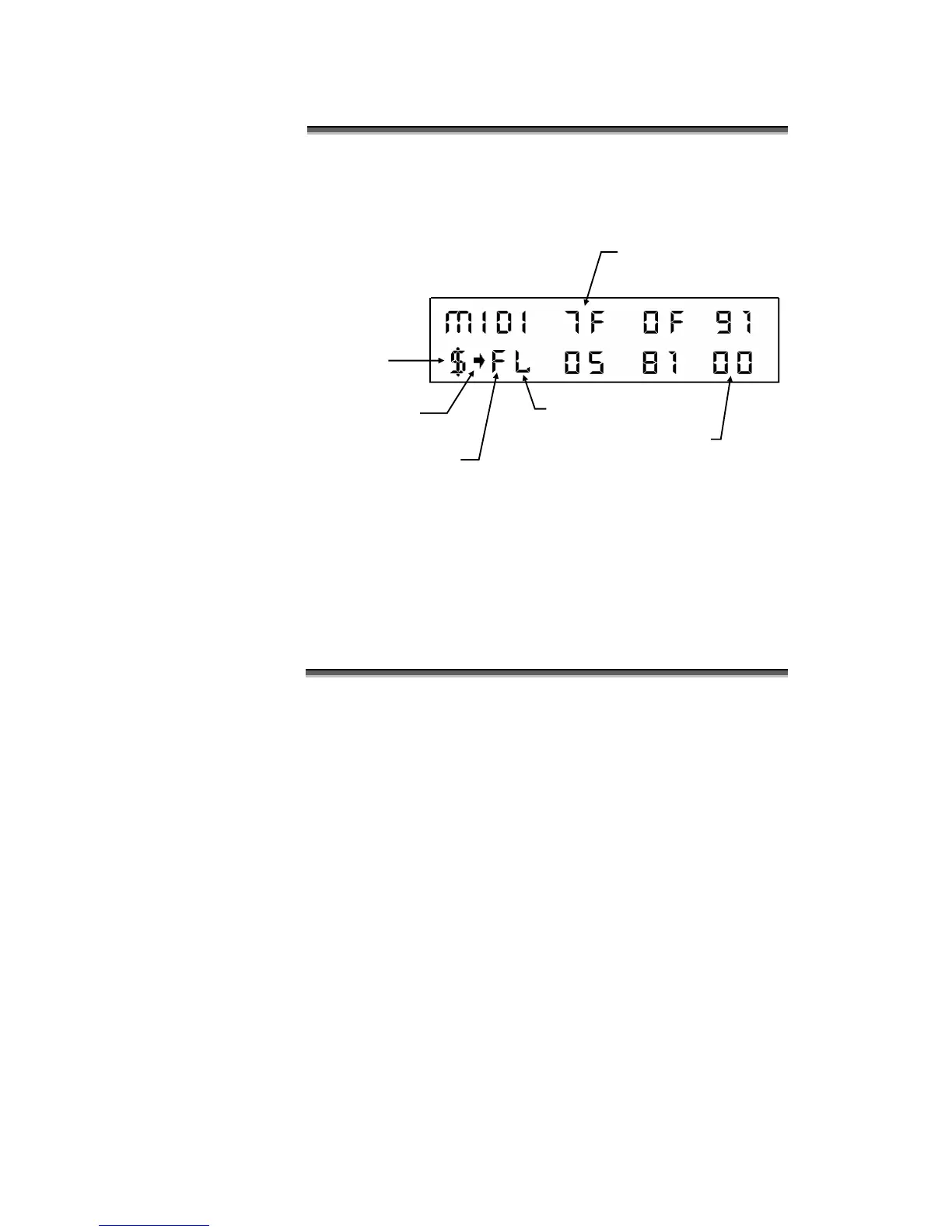

data display. The following diagram shows the screen layout.
Loop Through may also be used with MIDI. The output circuitry
used by Micro-Scope is RS485 compatible. Whilst this is correct
for DMX512, MIDI specifies a simpler and less expensive set of
circuitry. However, the two sets of circuitry are compatible and
the circuitry used by Micro-Scope overcomes the very short cable
limitation usually encountered with MIDI.
The MIDI input of Micro-Scope is opto-isolated.
