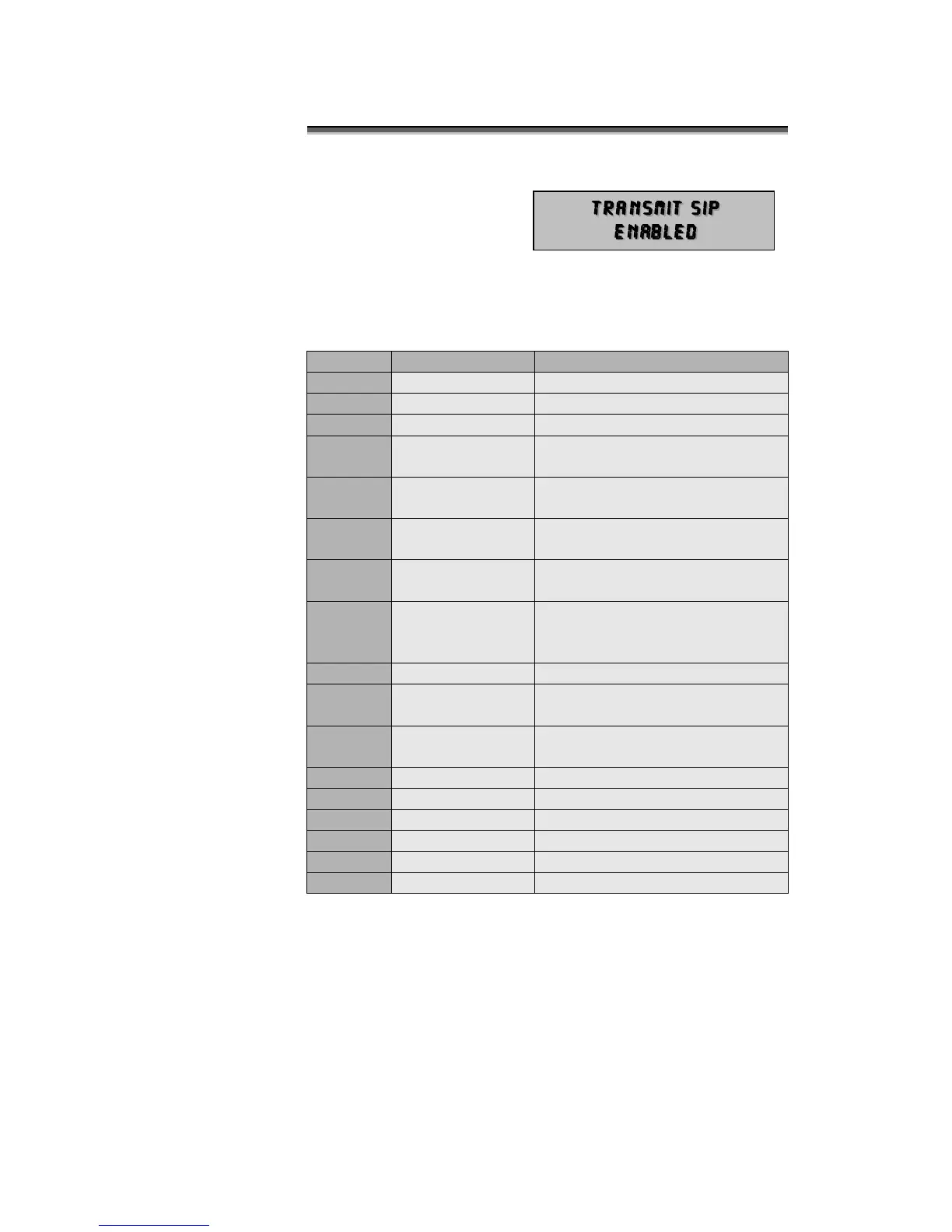

TRANSMIT
SIP (S6)
The TRANSMIT SIP menu is used to enable the transmission of
System Information Packets.
When enabled, a single SIP
packet is sent for every 64
standard packets.
If Text DMX is enabled (Menu 10), the SIP packet is sent every 65
packets.
The structure of this SIP is shown below:
Slot
Name
Value (Decimal, 0x = Hex)
1
Byte Counter
24
2
Control Bit Field
64
3
MSB16 Checksum
0
4
LSB or 8 bit
Checksum
Calculated from last packet
5
SIP Sequence
Number
Increments by one for each
packet
6
DMX512 Universe
Number
01
7
DMX512
Processing Level
00
8
Software Version
70 (This is V7.0. It will change as
Micro-Scope 3a firmware
upgrades are released)
9/10
Packet Length
0x0200
11/12
Number of
Interval Packets
0x0040 (Text DMX disabled)
0x0041 (Text DMX enabled)
13/14
Originator’s
Manufacturer ID
0x414c (‘AL’)
15/16
2
nd
Device ID
0x0000
17/18
3
rd
Device ID
0x0000
19/20
4
th
Device ID
0x0000
21/22
5
th
Device ID
0x0000
23
Spare
0
24
SIP Checksum
Calculated for each packet
