Aruba Instant On 1930 Series User Manual

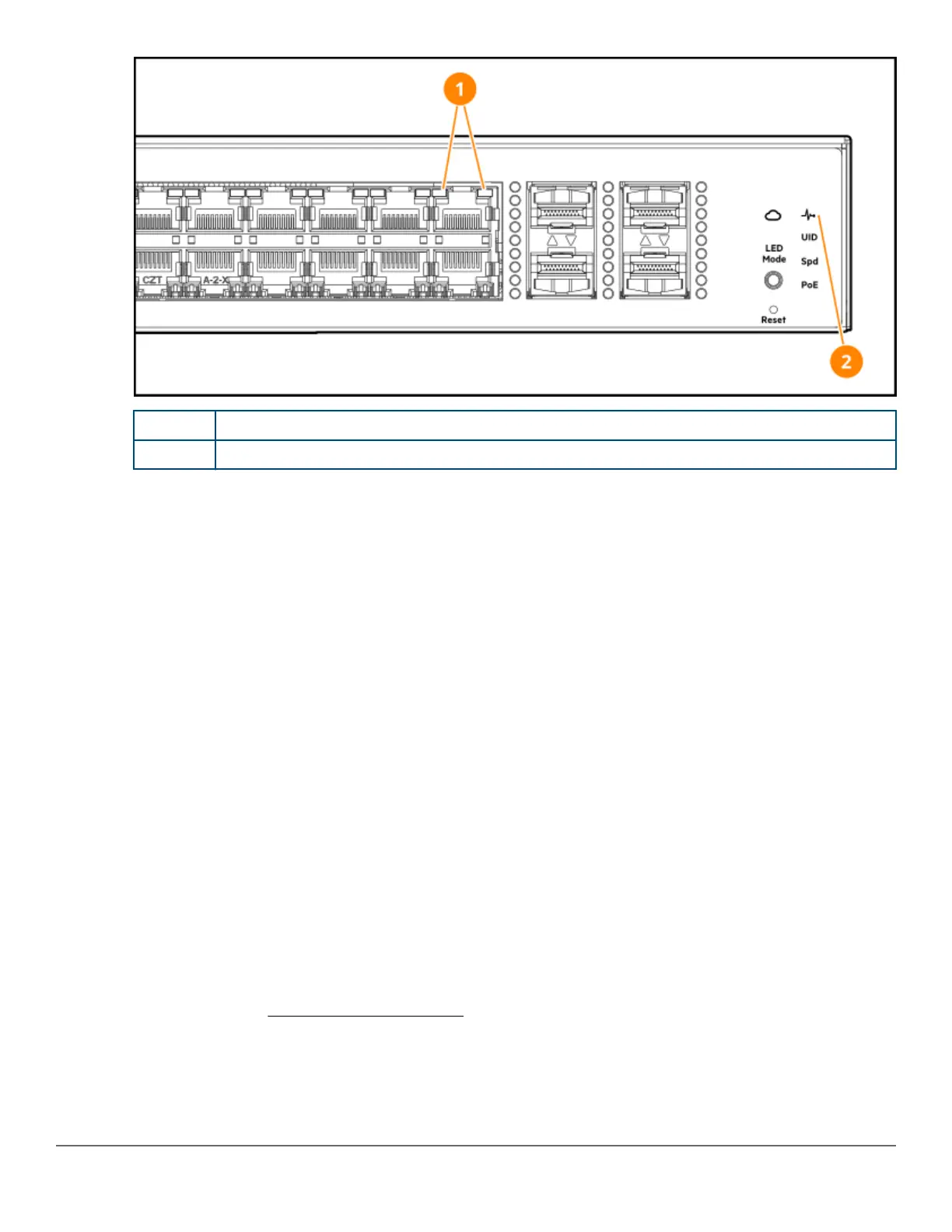

1 Port Link/Act, Speed, and PoE status LEDs
2 Global Status LED
When the switch is powered on, it performs a diagnostic self test. The behavior of the LEDs is as follows:
During the self test:
• Initially, all LEDs except Cloud StatusLED will turn on and UID LED will ash blue.
• After several seconds, the UID, Speed, and PoE LEDs turn o and the Cloud and Global Status LEDs
ash green and orange, respectively.
When the self test completes successfully:
• The Global Status LED remains on.
• The UID LED stays o.
• The Cloud Status LED will match the status of the onboarding process to the cloud portal.
• The port LEDs on the front of the switch go into their normal operational mode:
◦ If the ports are connected to active network devices, in default Link/Act Mode, the port LEDs stay
on or may be blinking, to indicate port link/activity. In Speed Mode, the port LEDs are on green for
link speeds of 1000Mbps or above, and slow-ash-green for link speeds less than 1000Mbps. For
PoE switches, in PoE Mode, the port LEDs reect the earlier dened behavior, depending on the
PoE state of the switch.
◦ If the ports are not connected to active network devices, the port Link/Act and Spd LEDs will stay
o.
If the ports are not connected to active network devices, the port Link/Act, Speed, and PoE status will
be o. Refer to Diagnosing with the LEDs for diagnostic help.
3. Remove power to the switch before mounting.
26 Aruba Instant On 1930 Installation and Getting Started
Guide

Aruba Instant On 1930 Series Specifications

General

Model	Aruba Instant On 1930 Series
Switching Capacity	Up to 176 Gbps
Layer	Layer 2+
MAC Address Table Size	16K entries
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Ports	8, 24, or 48 10/100/1000BASE-T ports
Uplink Ports	2 or 4 SFP/SFP+ ports
PoE Options	PoE and non-PoE models available
Management	Cloud-managed with Aruba Instant On mobile app or web portal
Mounting	Rack-mountable
Jumbo Frame Support	9216 bytes
Layer 2 Features	VLANs
Security Features	Access Control Lists (ACLs)
Power Supply	Internal power supply
Humidity	15% to 95% non-condensing
Certifications	CE
