Aruba Instant On 1930 User Manual

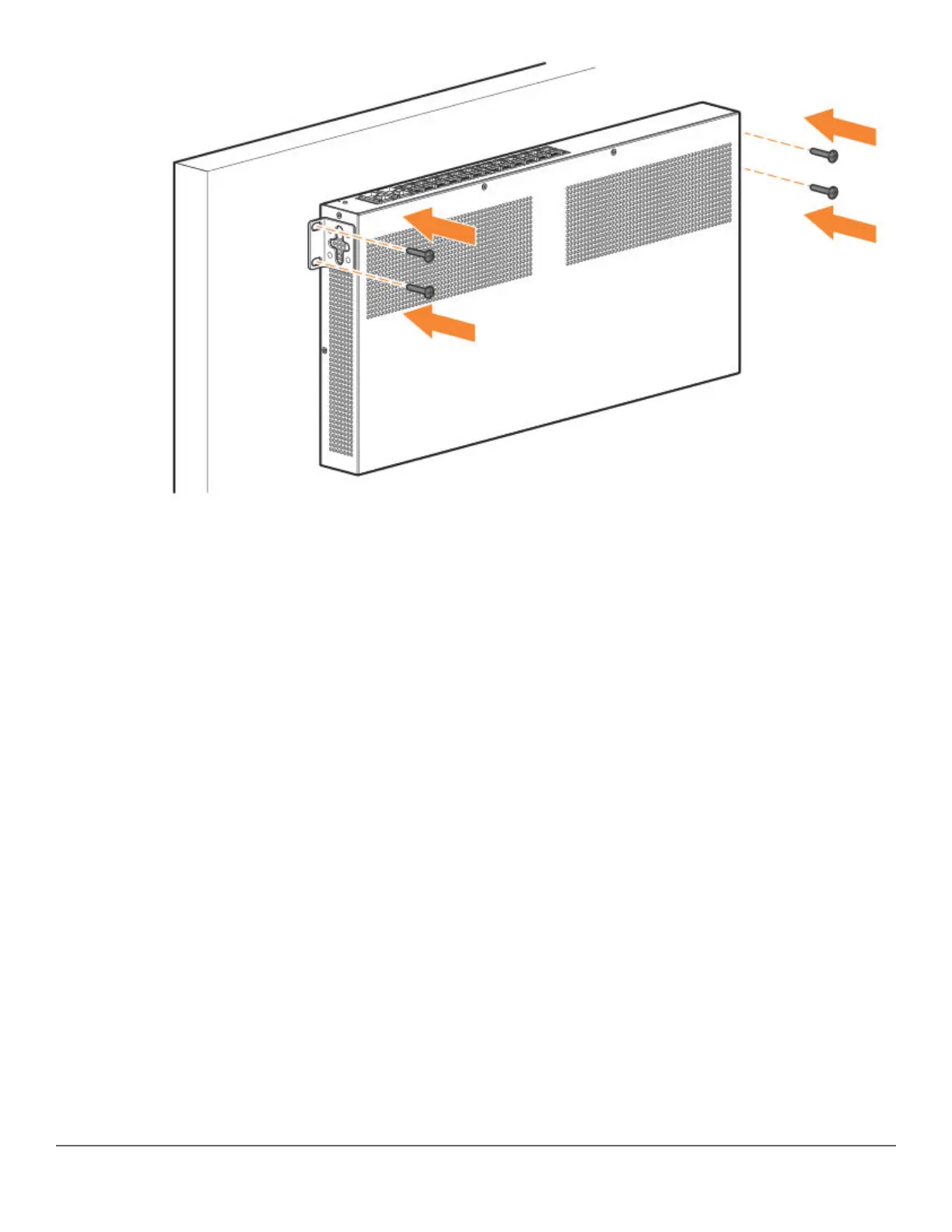

To mount the 8-port switches, follow these steps:
1. In the required location, mark the position for the mounting screws. The hole-to-hole distance is 4.961
inch (126 mm) for JL680A and 6.575 inch (167 mm) for JL681A.
2. Use a #1 Phillips (cross-head) screwdriver and two of the included 20-mm M4 tap screws. Set the screw
heads approximately 2 mm away from the mounting surface to allow the switch to slide onto the screws.
Wall anchors are included in the accessory kit for use with plastered brick or concrete walls.
Chapter 4 Installation overview 29

Aruba Instant On 1930 Specifications

General

Model	Aruba Instant On 1930
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Uplink Ports	2 or 4 SFP/SFP+ ports
Management	Aruba Instant On cloud-based management
Layer 2 Features	VLAN, QoS, LACP, IGMP snooping, STP/RSTP/MSTP
Layer 3 Features	Static Routing
Power Supply	Internal (100-240V AC)
Certifications	RoHS
