ascom Ascotel 2025/2045/2065
2.244 Call Logging (CL) HBT_20321104_02/B0_en
7.4 Call Data Output
The ICL, OCL and ICC data is output on printers or other output devices via the
V.24 interfaces of the PBX. It is possible to configure which data is output on
which of the available V.24 interfaces. Up to 4 output devices can be connected
at the same time.

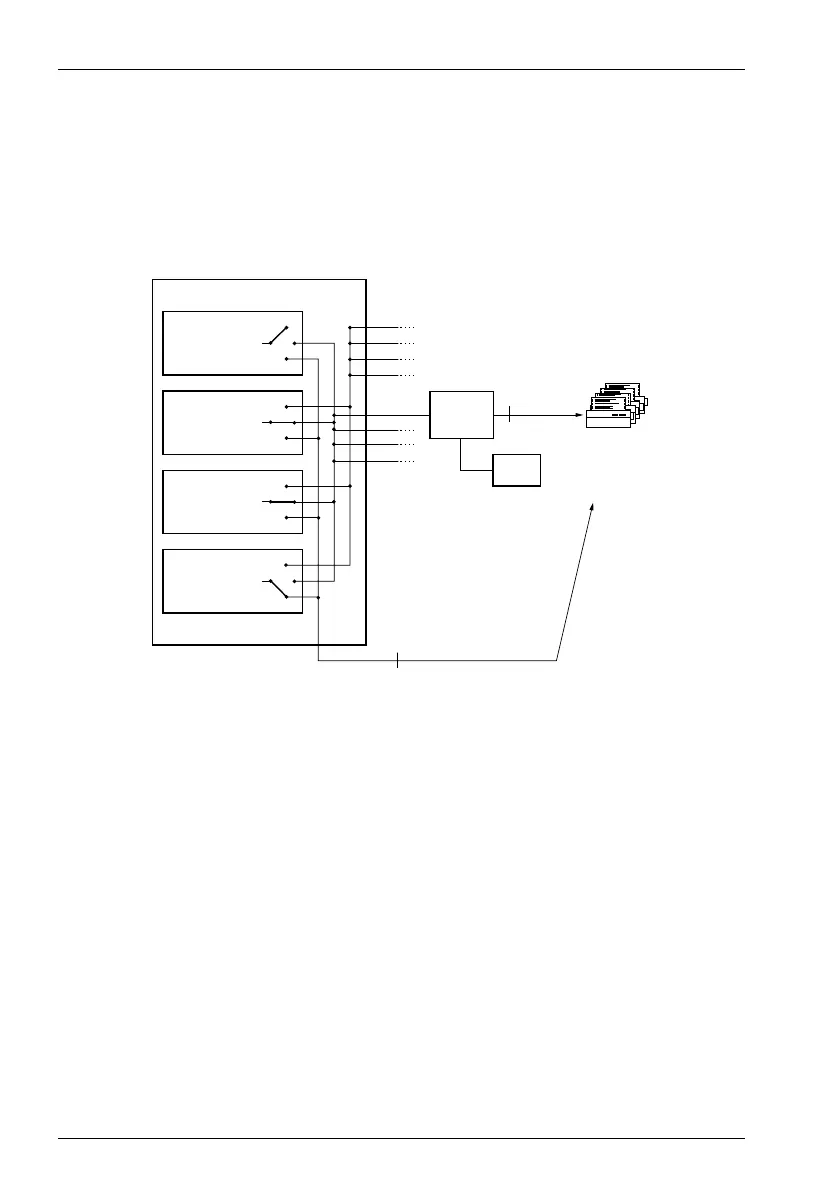

Fig. 2.132: Output concept
7.4.1 Interface Configuration
Two V.24 interfaces are available for each basic system and one V.24 interface for
each Office Pocket Adapter:
• The V.24 interfaces on the basic system are set in the system configuration.
• The V.24 interface on an Pocket Adapter is set at the back of the Pocket
Adapter using a DIP switch.
Output types
ICC printer
Service printer
Alarm printer
S
S
S
S
AD2
AD2
AD2
AD2
1…4
Output devices
Office
Pocket
Adapter
TN 237
V.24
(Port 4.3-2)
V.24 MUP
CL printer
haz0164aaend0
