ASCOM Ascotel 2025 - Uninterruptible Power Supply (UPS); UPS with UPS-12 V Module

ascom Ascotel 2025/2045/2065
HBT_20321104_04/B0_en PBX Power Supply 4.13
4.1.1 Uninterruptible Power Supply (UPS)
The use of an uninterruptible power supply (UPS) guarantees that the PBX can be
reliably operated even in the event of a failure of the 230 VAC power supply.
Uninterruptible power supply can be provided by the UPS-12V module or an
external UPS.
4.1.1.1 UPS with UPS-12V Module
The charging circuit of the UPS-12V module is designed for lead-acid batteries
with a floating charge voltage of approx. 13.6. The charge current can be limited
to 1 or 2 A. The battery switching circuit is secured on the module with 20 A
(Wickmann FK1 20 A). If the polarity is the wrong way around, the fuse breaks
the circuit and must then be replaced.
[1] Primary connector
[2] Secondary connector
[3] Cable clamp (Faston 6.3 mm)
[4] Rubber grommet
[5] Cable to 12V back-up battery (cable cross-section 4 mm
2
)
[6] 12V back-up battery (external)

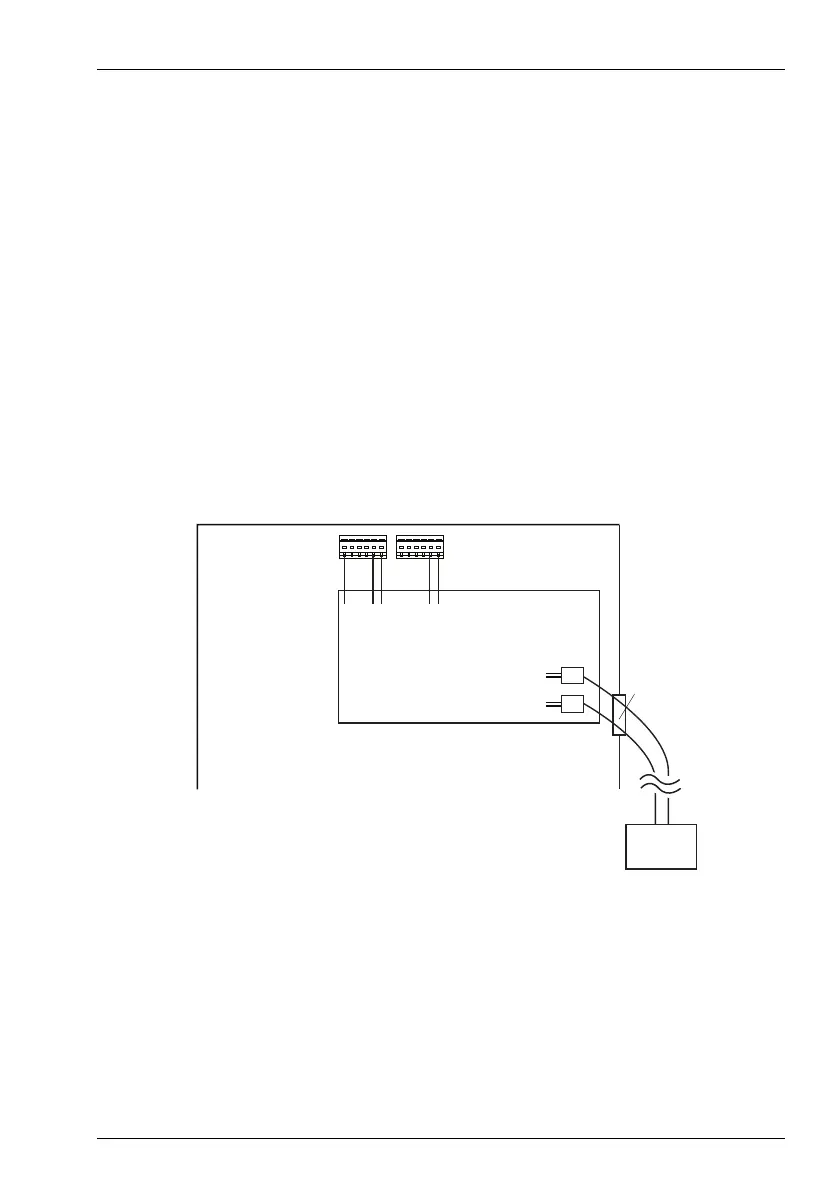

Fig. 4.13: Connecting UPS-12V module
[1]
UPS-12V
Mainboard
[2]
[4]
[5]
[6]
12 V
haz1186aadeb0
6
1
6
1
[3]
+
-
