TD 92679GB
12 April 2011 Ver. D
Installation Guide
Elise3
7
3.2 Label for IP Address/Host Name
To facilitate future support and access to the module, the module’s IP address or Host
name can be printed on a blank label and attached to the module as shown in the figure
below.
The blank label is found on the back side of the Getting started and Safety document:
“Elise3 – EMBEDDED LINUX SERVER INCLUDING SAFETY INSTRUCTIONS”, included in the delivery.

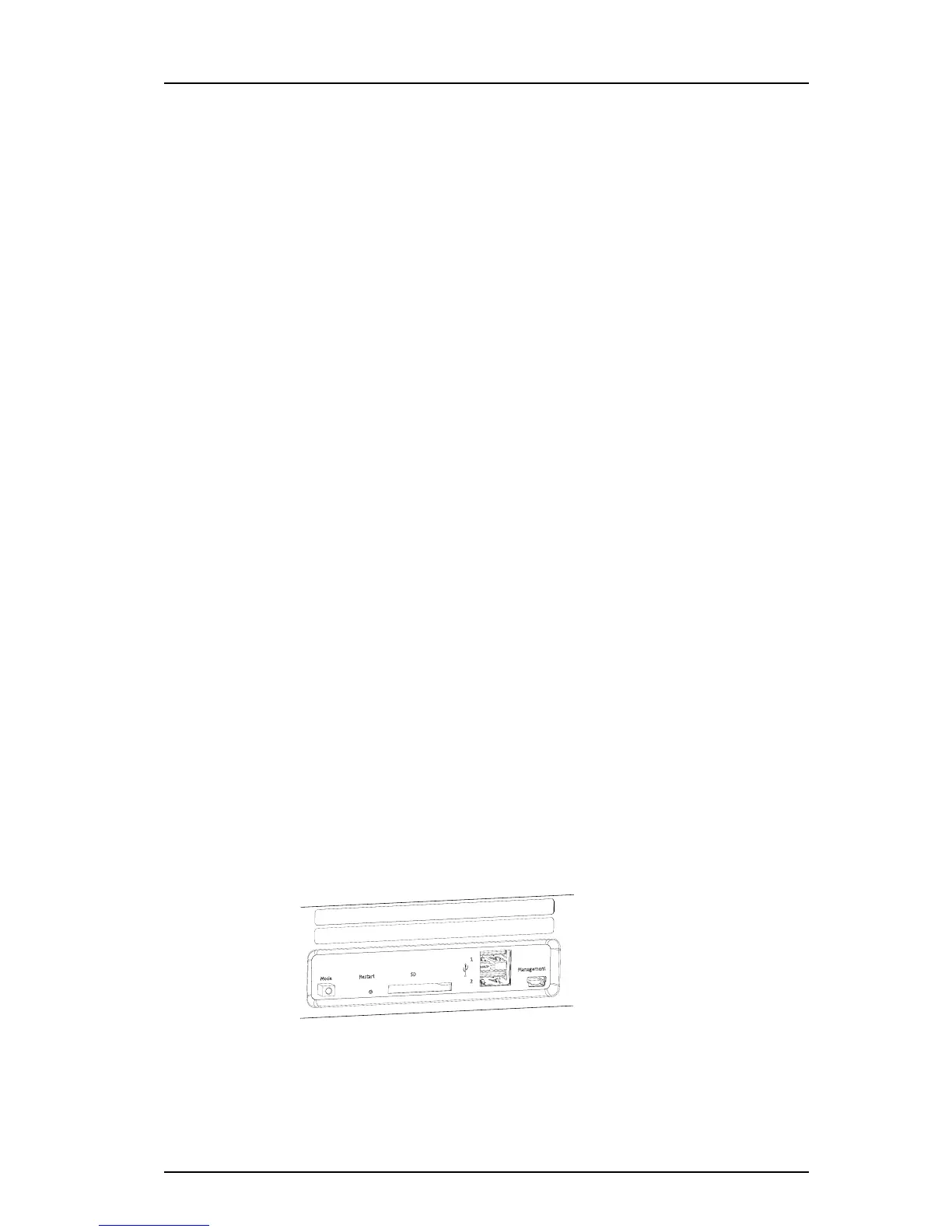

Figure 2. Label for the IP address or Host name
Rear side
COM1/COM2 COM ports for connection of RS232 communication, see 4.4.1 COM
Ports (RS232 Communication with External Equipment) on page 15.
Not applicable for the Elise3 Lite version.
LAN1 Modular jacks (RJ45) for connection of 10baseT or 100baseT Ethernet
TCP/IP network, see
4.4.2 Ethernet Ports on page 15.
LAN2 Currently not used (for future releases)
S900/S900 Modular jacks (RJ45) for connection of A-bus from System 900 with
modular system bus cabling, see
4.4.3 A-bus connection to System 900
on page 15.
Not applicable for the Elise3 Lite version.
A-bus Screw connector for connection of A-bus from System 900 when
modular system bus cable is not used, see
4.4.3 A-bus connection to
System 900 on page 15.
Not applicable for the Elise3 Lite version.
LON Screw connector for connection of the LON bus, see 4.4.4 LON Bus on
page 16.
Applicable for the Elise3 LON version only.
V+ Ext/GND Ext External 12 V power supply to provide galvanic isolation of the inputs
and outputs, see below.
In1/In2 and
Out1/Out2
Connects AUX Inputs and
AUX Outputs, see 4.4.6 Connection of AUX Inputs and AUX Outputs
on page 17.
Error Connector where an error relay output is available, see 4.4.5 Error
Relay Output on page 16.
12-24 V DC Connection for external backup battery/power supply, see 4.3 Supply
Voltage on page 14
100-240 V AC Connection of supply voltage, see 4.3 Supply Voltage on page 14
Figure 2.
IP address / Host name
