TD 92679GB
12 April 2011 Ver. D
Installation Guide
Elise3
11
4.2.2 Rack Mounting
The Elise3 can be either front mounted or reverse mounted in a 19´´ rack.
Note: Screws for fastening the assembly brackets in the rack are not included in the
delivery.
Front mounted single
• Requires the standard 19´´ rack kit
1 Fasten the big assembly bracket on the right side of the module and the small
assembly bracket on the left side as shown in the figure below.
2 Fasten the assembly brackets in the rack, see figure 5 (screws not included).

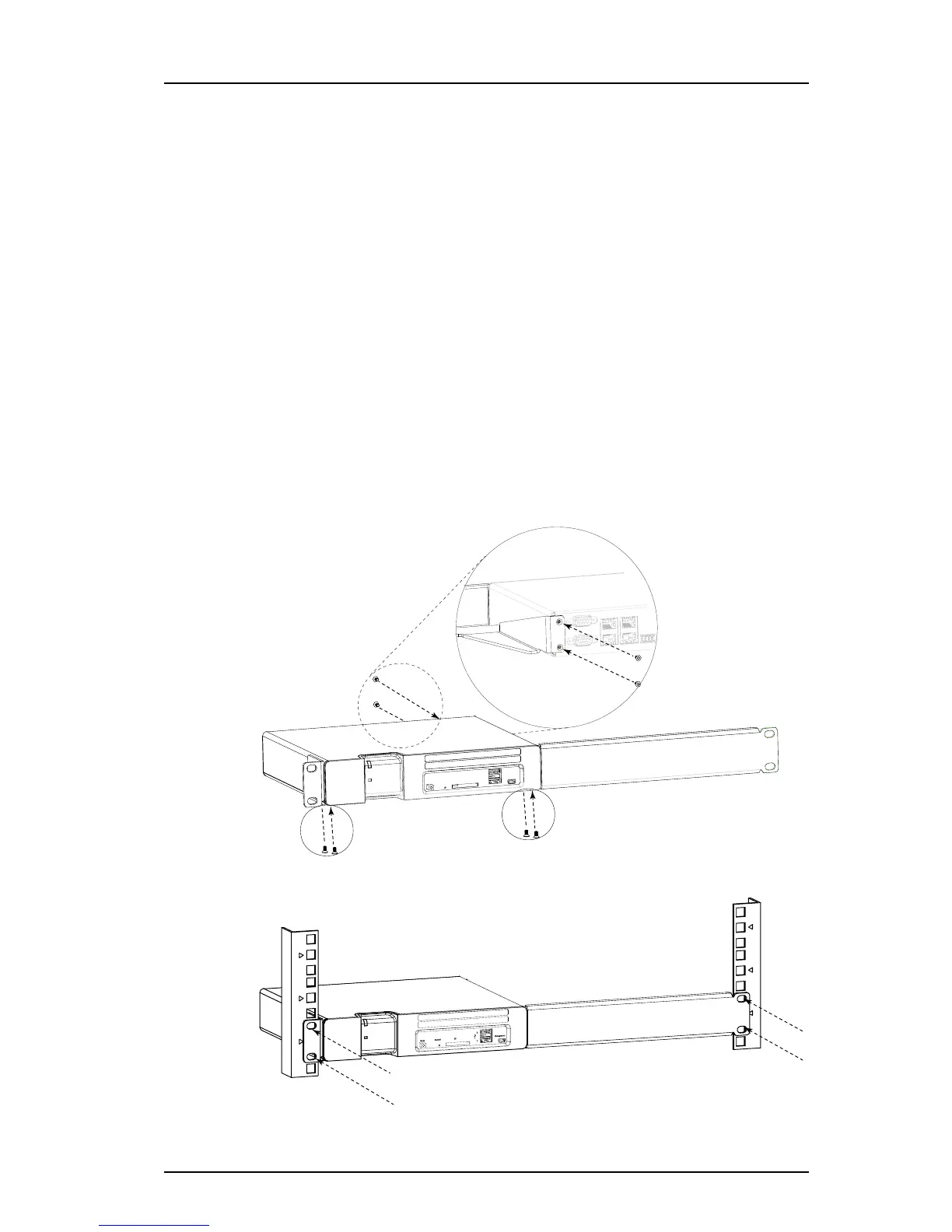

Figure 5. Front mounted single in rack
Accessories for mounting in a rack (ordered separately)
Standard 19´´ rack kit: Small left/right brackets for two front mounted Elise3
modules and one big bracket for one front mounted
Elise3 module.
Reverse 19´´ rack kit: Small left/right brackets for two reverse mounted Elise3
modules and one big bracket for one reverse mounted
Elise3 module.
Figure 5.
