Installation Guide
Elise3
12
Front mounted double
• Requires the standard 19´´ rack kit

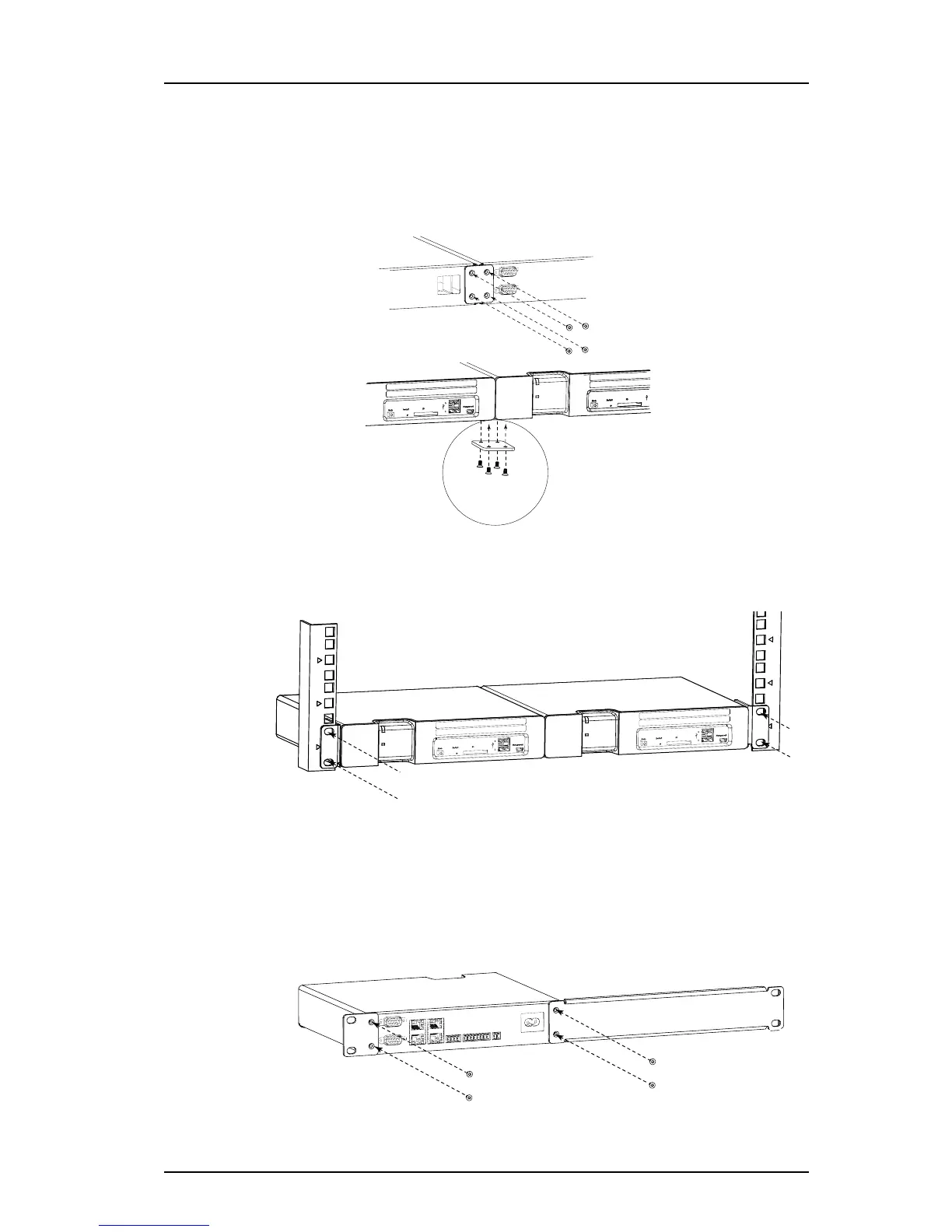

1 Use the supplied assembly brackets and fasten the two modules together, both on
the rear side and on the bottom side, as shown in the two figures below.
2 Use the two small standard assembly brackets and fasten one on the right front
side and the other on the left front side.
3 Fasten the assembly brackets in the rack, see figure below (screws not included).
Figure 6. Front mounted double in rack
Rear mounted single
• Requires the reverse 19´´ rack kit
1 Fasten the big assembly bracket on the right side of the module and the small
assembly brackets on the left side, as shown in the figure below.
Figure 6.
