ASCOM Elise3 User Manual

TD 92679GB
12 April 2011 Ver. D
Installation Guide
Elise3
8

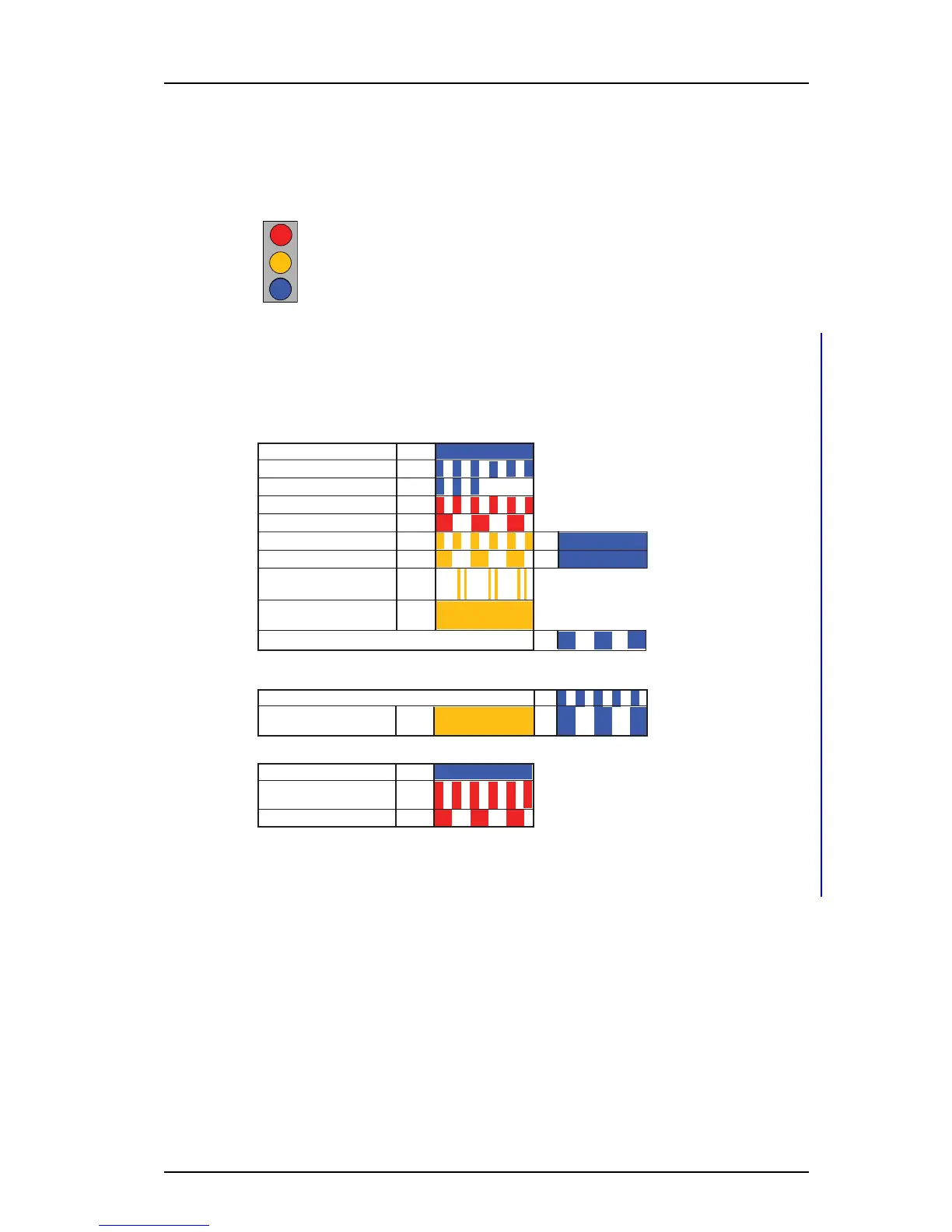

3.3 LED Indications
The LEDs show different colours to determine type of information and have different
flashing frequency for showing the priority.
Flashing patterns
Figure 3. LED indications
3.4 Operating Modes
Besides normal operation the Elise3 can be operated in three other modes, i.e. Boot
Mode, Demonstration Mode and Troubleshoot Mode.
3.4.1 Normal Operation
All configuration and settings for the application, maintenance such as backups, software
upgrade and troubleshooting, are performed in the application GUI and is described in the
separate application documentation. The application GUI is the web user interface for the
software application running on Elise3.
Colours
Red Fault indication
Yellow Mode indication
Blue Normal operation (OK)
Figure 3.
Fixed light indicates normal state
Slow flashing light indicates medium attention
Quick flashing light indicates high attention
Red
Red
Blue
Blue
Yellow
Yellow
Status LED
Blue
Error/fault
Starting up/ shutting down
Status OK
Demonstration mode
Feedback (1 second)
Mode LED
Blue
Blue
Boot mode
Waiting for automatic
startup (1 minute)
Warning
Troubleshoot mode and
during firmware upgrade
Mass storage mode
Yellow
Yellow
Power LED
Red
Red
Blue
* also used if the Power parameter conflicts
with the actual setup.
Closing down caused by
low voltage
Power OK
Low voltage*
Mode LED
Blue
Indicates that manual confirmation is required
Blue
Yellow
Status LED
Blue
Confirmation is done and
setting can be activated
Secured settings
Power
